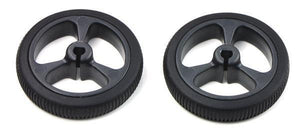

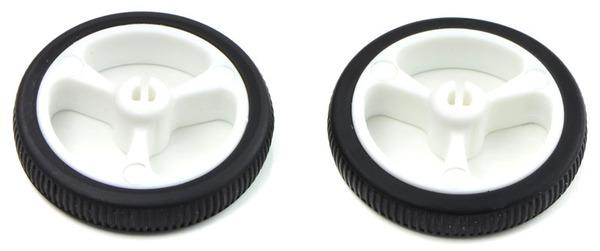

This custom-designed plastic wheel has a silicone tire measuring 1.26" (32 mm) in diameter and is designed to fit the output shafts on our micro and mini metal gearmotors as well as the Solarbotics metal gear motors. These wheels are sold in pairs.

This wheel is designed to fit securely on the output shafts of the Pololu micro and mini metal gearmotors, as well as the Solarbotics metal gear motors and the Pololu 120:1 mini plastic gearmotor 90-degree 3mm D-shaft output. These are the same wheels that are used on the 3pi robot.

Both our micro metal gearmotor bracket and extended micro metal gearmotor bracket work with this wheel.

Specifications

  • Diameter: 1.26" (32 mm)
  • Width of tire: 0.26" (6.5 mm)
  • Weight: 0.11 oz (3.2 g)

We have similar wheels available in different sizes and colors:

Pololu wheels with 90, 80, 70, 60, and 32mm diameters.
Hub diagram with dimensions of the Pololu Wheel 32×7mm.
