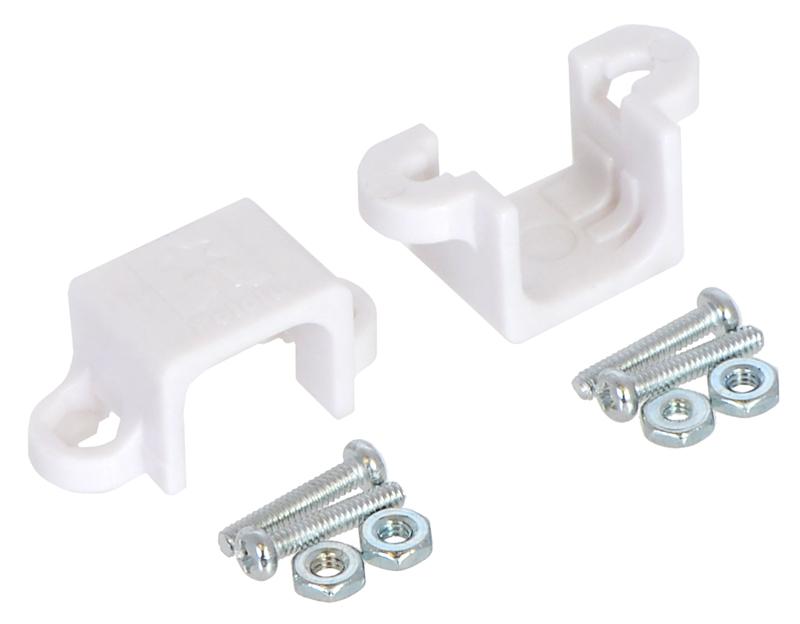

This compact bracket enables convenient mounting of popular, Sanyo-style micro metal gearmotors. The white plastic bracket encloses the otherwise exposed gears, and the mounting tabs capture the nuts for easy installation. The brackets are sold in pairs, and each bracket comes with two #2 screws and two nuts.
These plastic mounting brackets allow you to easily and securely mount the ubiquitous 10 mm x 12 mm x 26 mm metal gearhead motors first popularized by Sanyo’s 12GN series (e.g. NA1S…NA3S), such as our micro metal gearmotors.
Four #2-56×7/16" screws and four nuts are included.

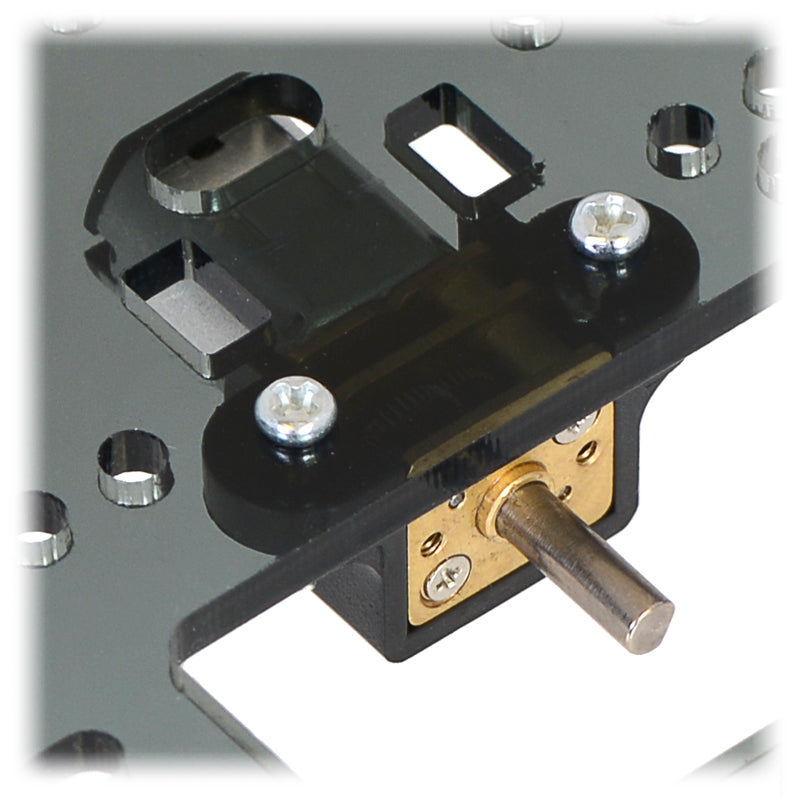

These brackets have mounting holes that are very close to the output shaft end of the motor, which could cause mounting difficulties if your wheels have recessed hubs like the Pololu Wheel 42×19 mm.
Note: This bracket also works with the 1000:1 micro metal gearmotors, but because of its longer gearbox, it does not fully enclose the exposed gears the way it does on the other micro metal gearmotors.
