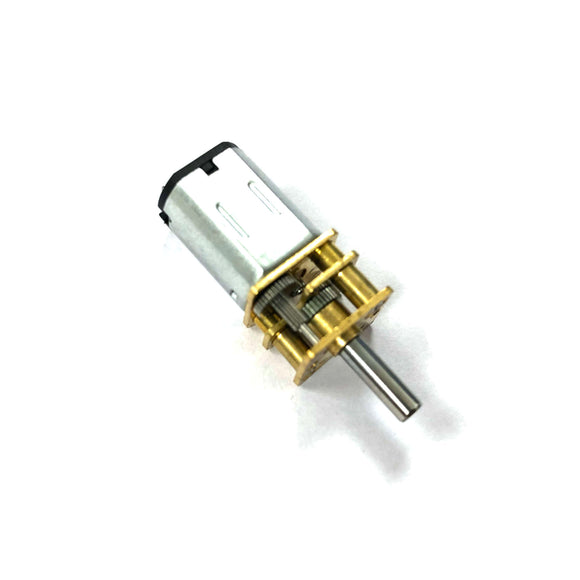

N20 Micro Metal Gear Motor (6V 2000RPM)

This is a tiny DC gear motor intended for use at 6 V, though in general, these kinds of motors can run at voltages slightly above and below this nominal voltage. The micro N20 motor can rotate in both clockwise and counter-clockwise directions. It features a 3 mm D-shaped shaft on which a 3 mm shaft hub can easily be mounted to attach stuff like a wheel, fan blade, etc. Alternatively, a 3 mm shaft wheel can be attached to it directly. To mount the motor, a micro metal gear motor bracket can be used. The motor has two terminals, (Motor +), and (Motor -).



SKU: 2840
No-load speed @ 6V: 2000 RPM
No-load current @ 6V: 70 mA
Resistivity: 6.8 ohm
Stall Torque @ 6V: 9.8 N-mm 1.39 Ounce-in
Stall Current @ 6V: 671 mA
Stall Power @ 6V: 4.02 W
