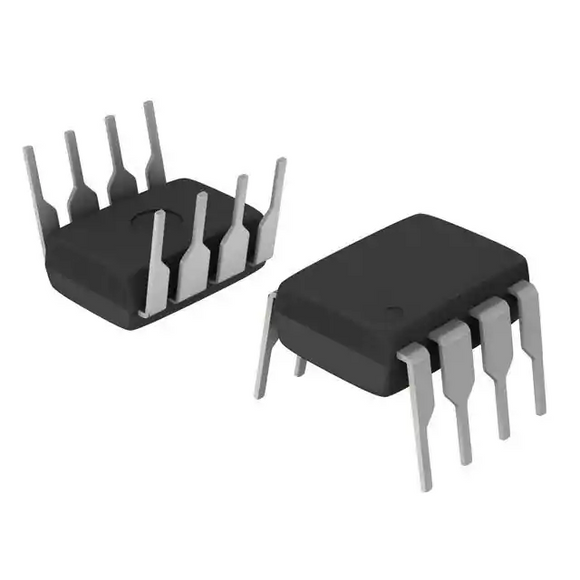

ATtiny85 Microcontroller (AVR 8-Pin 8MHz 8K)

The ATtiny85 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny85 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Specification / Features:

  • Core Processor: AVR
  • Core Size: 8-Bit
  • Speed: 20MHz
  • Number of I/O: 6
  • Program Memory Size: 8KB (4K x 16)
  • Program Memory Type: FLASH
  • EEPROM Size: 512 x 8
  • RAM Size: 512 x 8
  • Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V
  • Data Converters: A/D 4x10b
  • Oscillator Type: Internal
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Package / Case: 8-DIP (0.300", 7.62mm)
