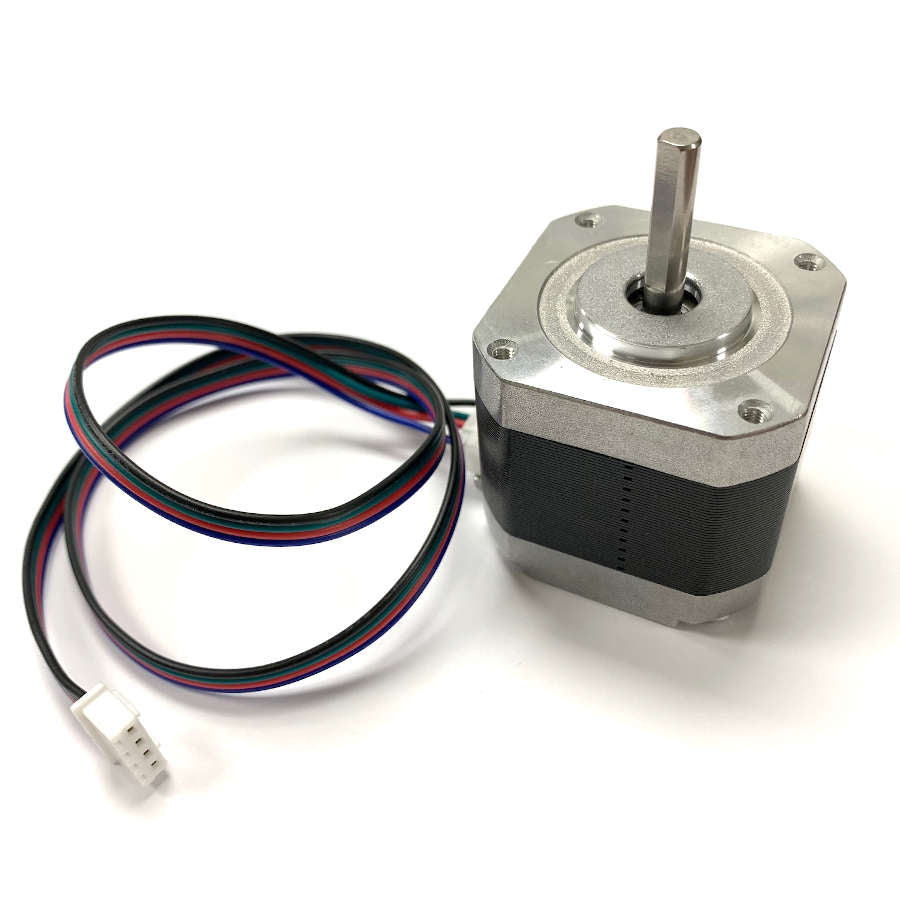

Electrical Characteristics

Number of Phase  2
Step Angle 1.8°
Rated Voltage 3.3V DC
Rated Current 1.5A
Holding Torque  400mN.m Min (2 Phases)
Phase Resistance 2.2 Ω ± 10% (20°C)
Phase Inductance 3.8mH± 20% (1kHz 1V rms)
Motor Inertia 57g. cm^2
Motor Weight 275g Ref.
Insulation Resistance 100MΩ Min. (DC 500V)
Insulation Class B (130° C)
