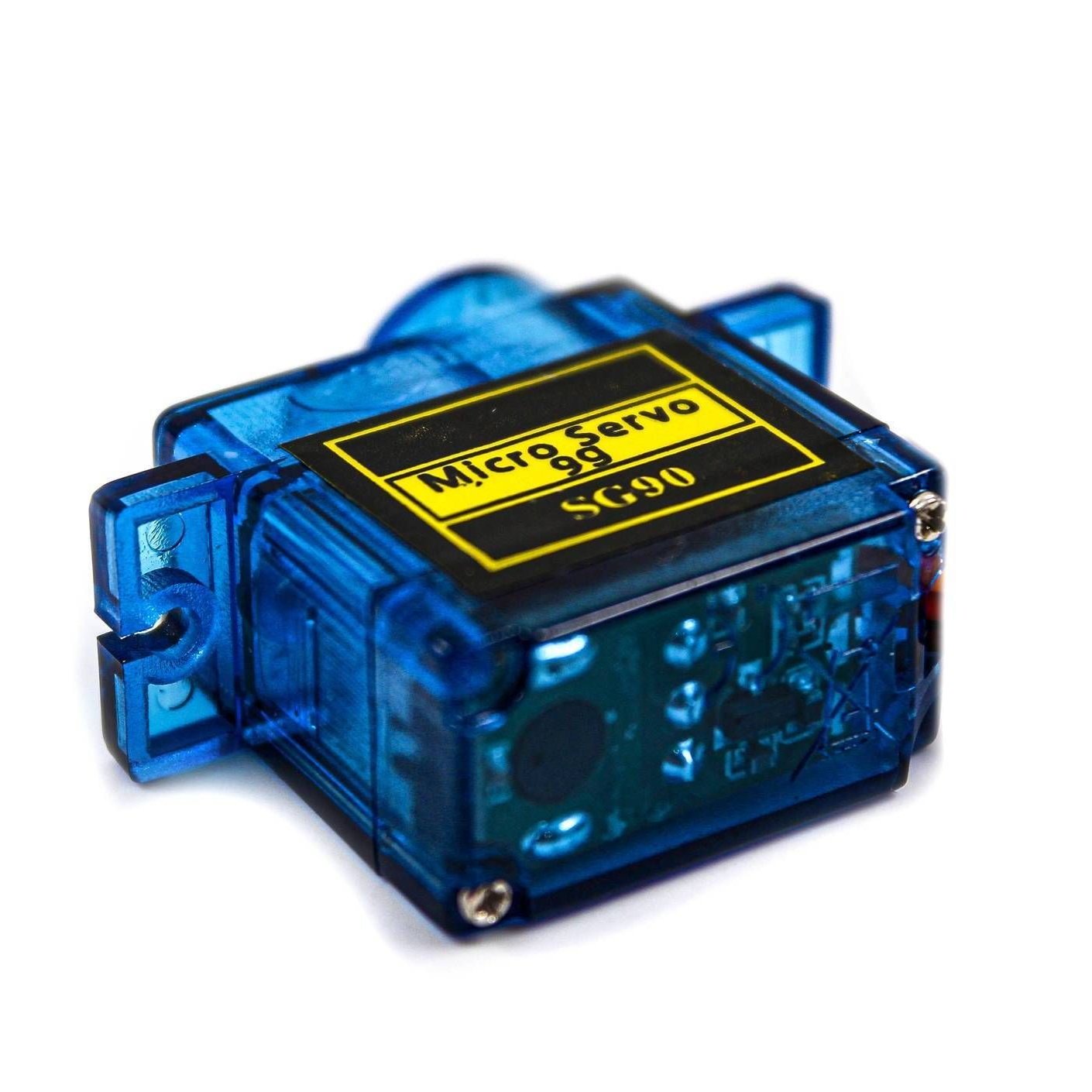

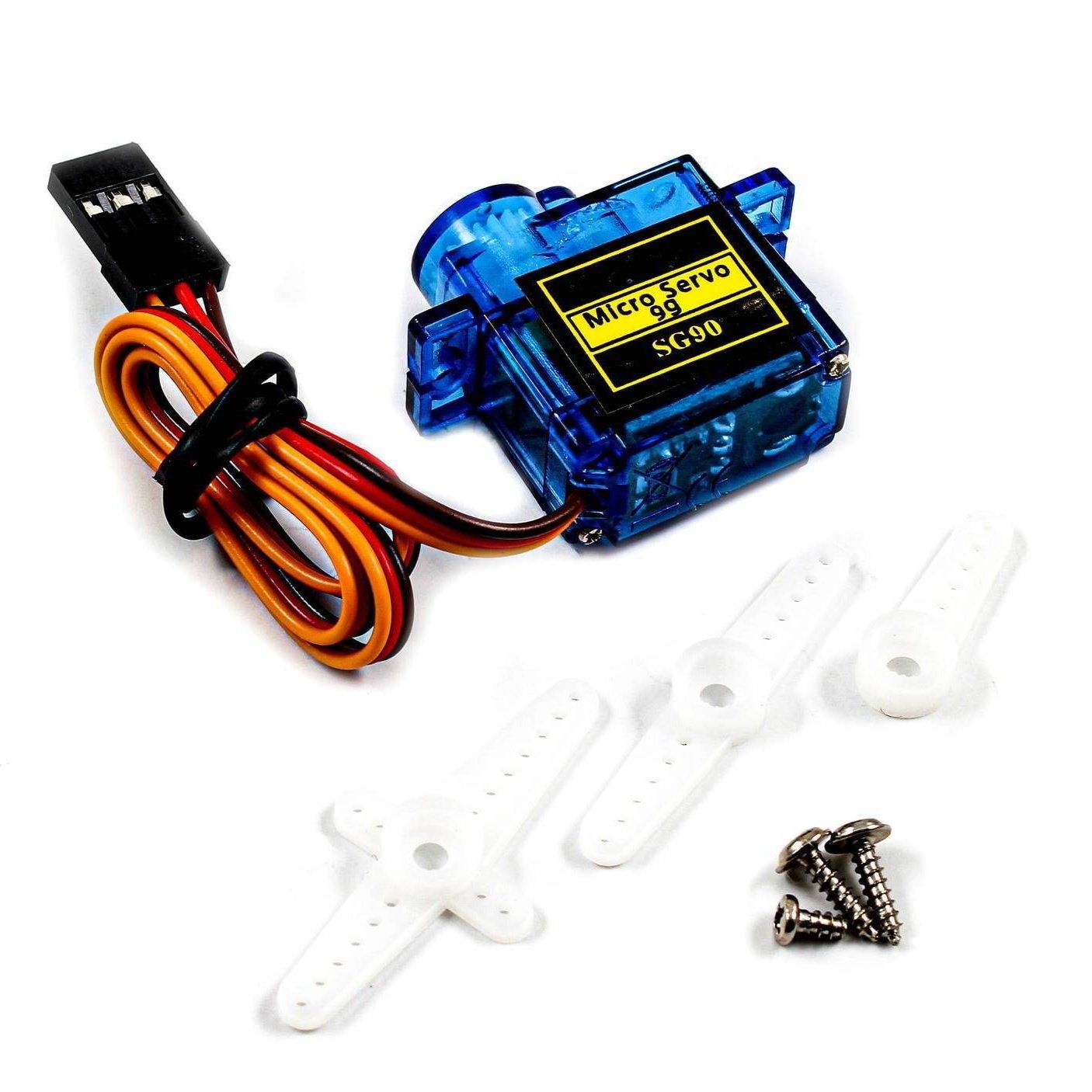

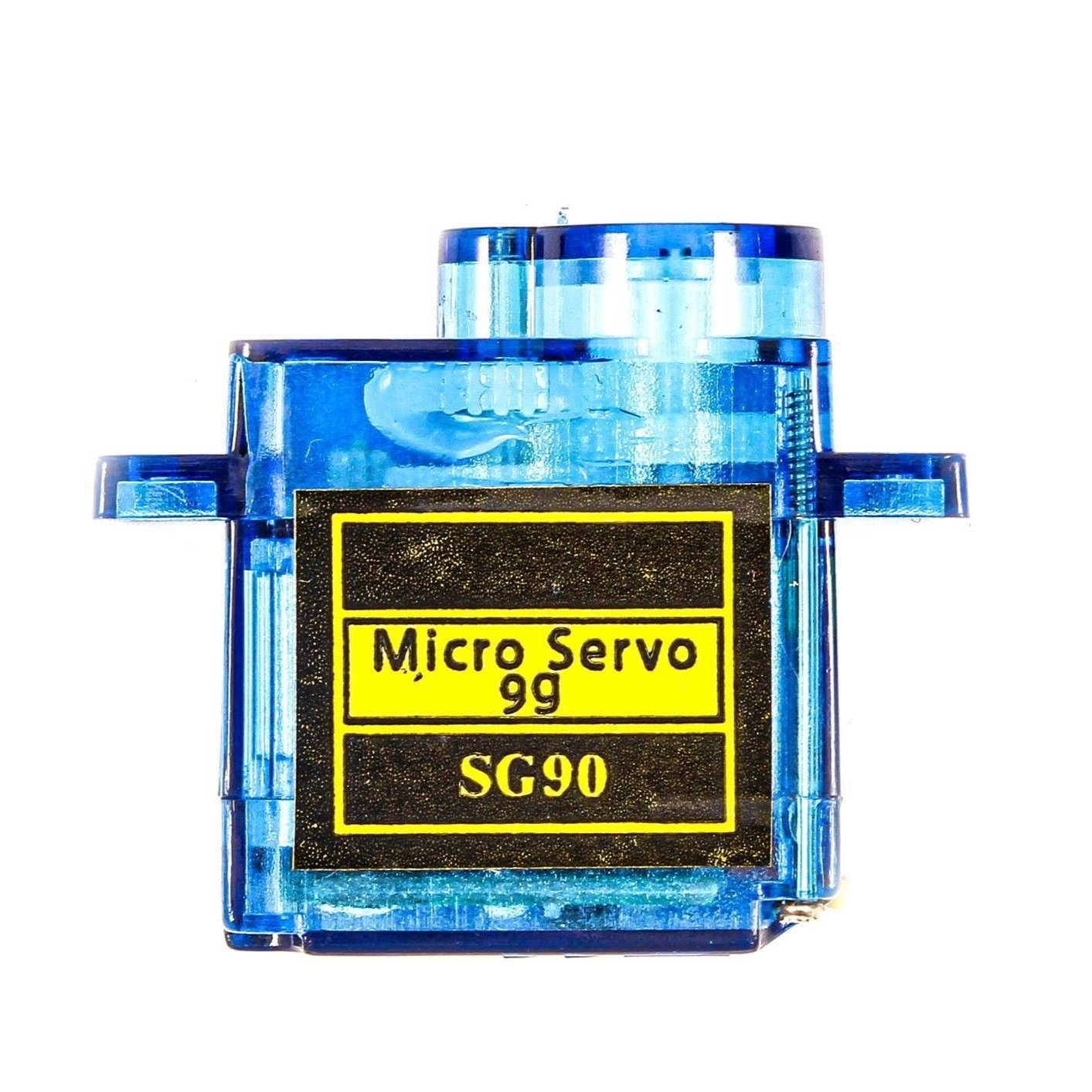

Tiny and lightweight with high output power. Servo can rotate approximately 180 degrees (90 in each direction), and works just like the standard kinds but maller. You can use any servo code, hardware or library to control this servo. Good for beginners who want to make stuff move without building a motor controller withfeedback gear box, especially since it will fit in small places. It comes with a 3 horns (arms) and hardware.

Specifications:

  • Weight: 9 g
  • Dimension: 22.2 x 11.8 x 31 mm approx.
  • Stall torque: 1.8 kgf·cm
  • Operating speed: 0.1 s/60 degree
  • Operating voltage: 4.8 V (~5V)
  • Dead band width: 10 µs
  • Temperature range: 0 ºC – 55 ºC

Documents:
