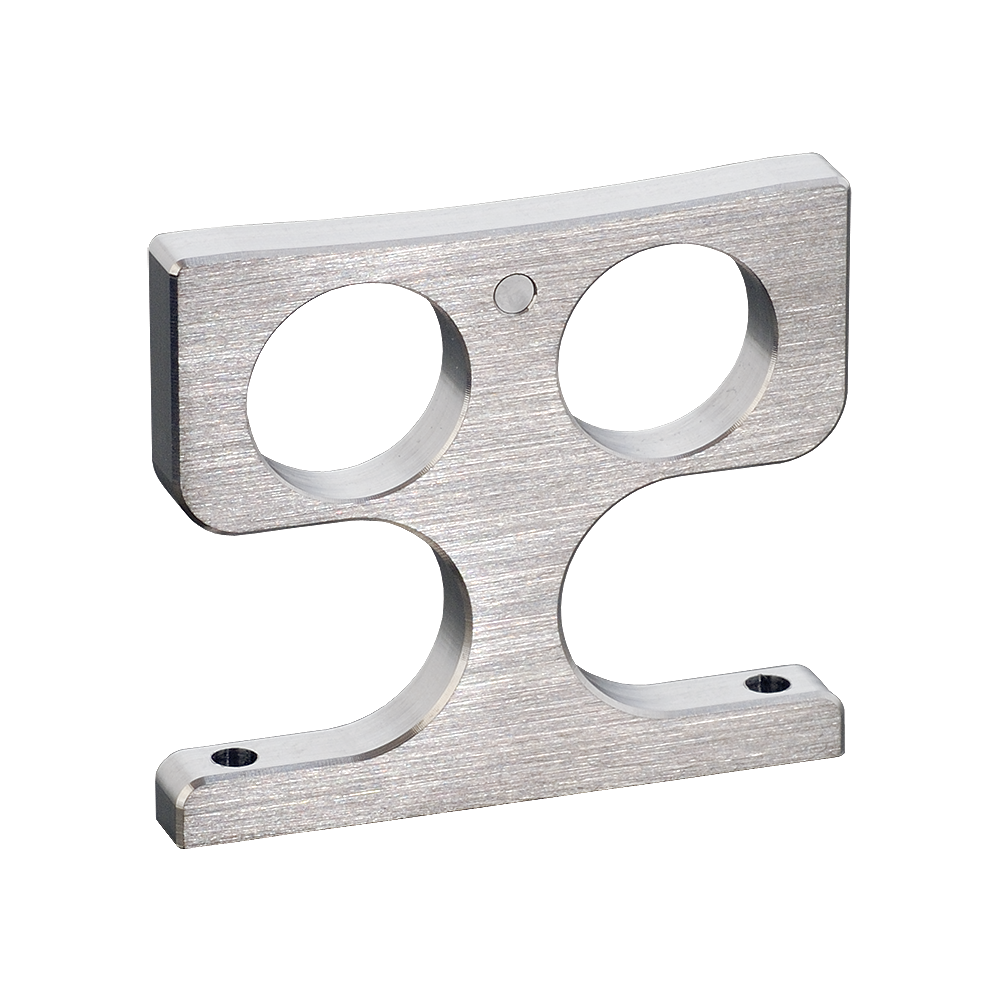

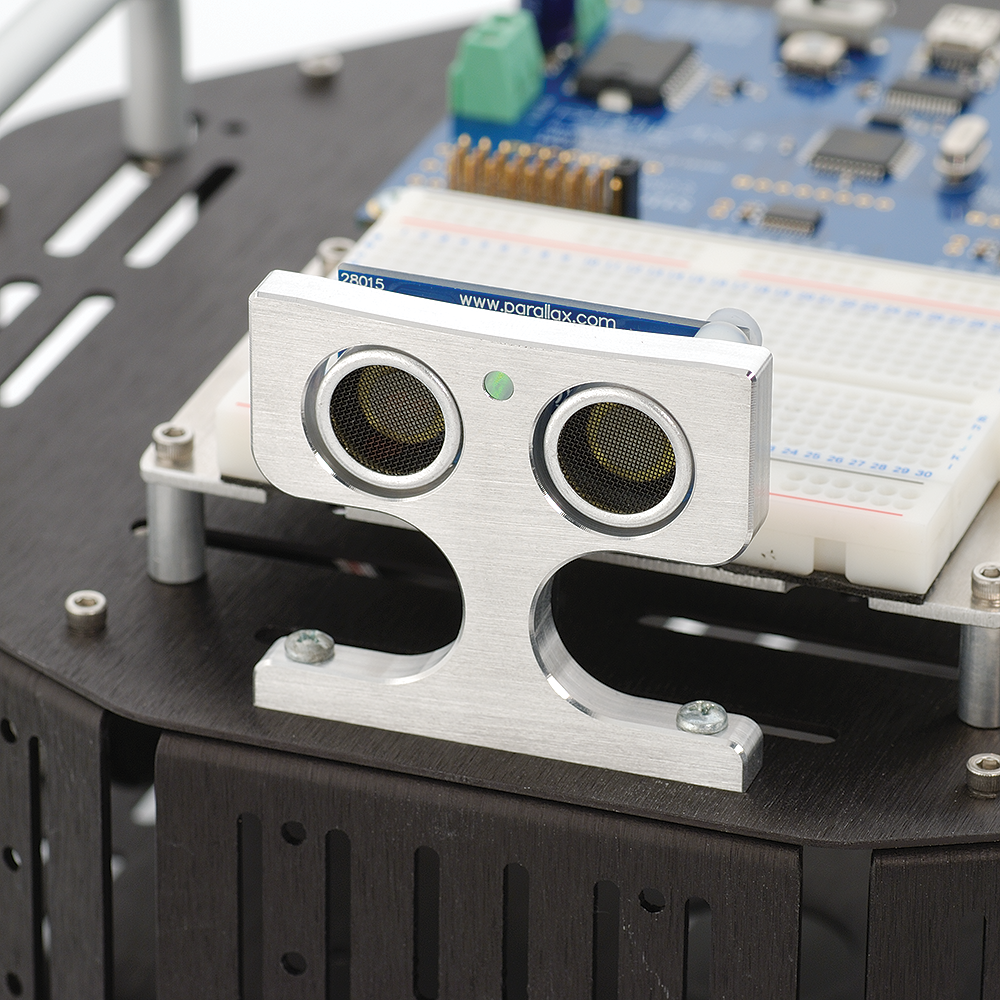

The PING))) Protector Stand is a precisely machined mounting bracket cut from ¼ in thick high-grade aluminum. With easy installation this stand can gracefully attach your PING))) Ultrasonic Distance Sensor to your robot and protect the sensor from most collisions.
Note: PING))) Ultrasonic Distance Sensor (1611-PLX) is not included.
- Designed to protect your PING))) Ultrasonic Distance Sensor from damage.
- Hardware to connect sensor to stand is included
- Custom CNC-machined from 6061 high-grade aluminum at Parallax headquarters in Rocklin, CA.
- Aperture and plastic light pipe included to allow for visual check of sensor function while mounted to stand.
- Two 6-32 (0.144 inch Dia.) un-threaded mounting holes
- Dimensions: 1.95 in x 2.20 in x 0.25 in (11.4 mm x 55.9 mm x 6.4 mm)
