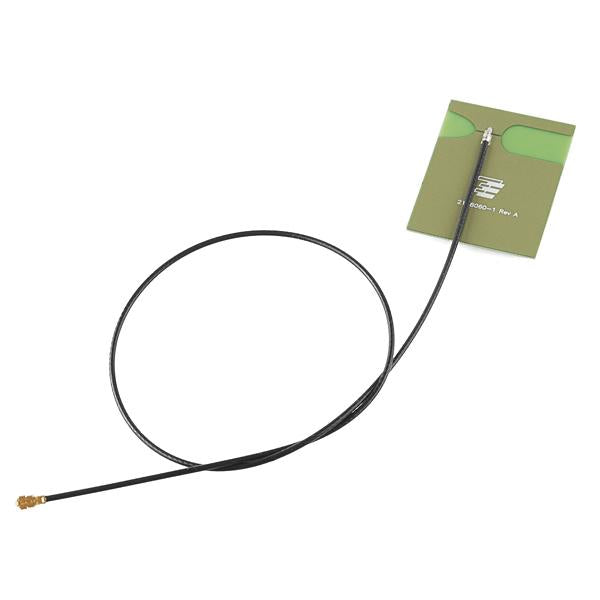

2.4GHz PCB Antenna with Adhesive (U.FL connector)

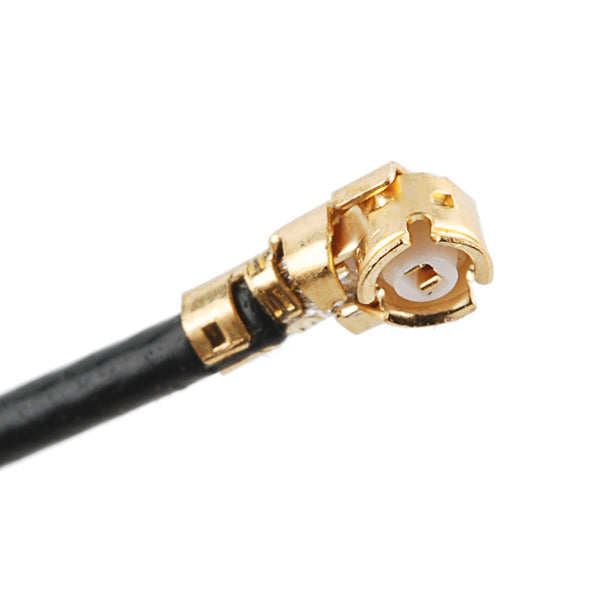

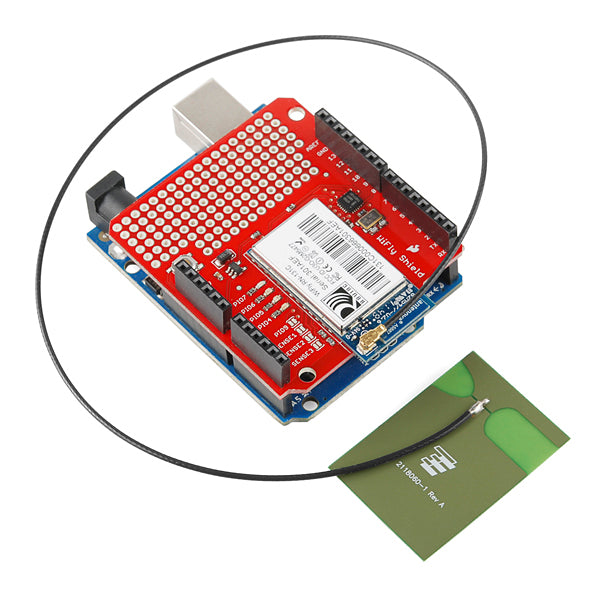

This adhesive, omni-directional antenna is perfect for situations when you're trying to get a signal out from a transmitter that you've jammed down into an enclosure. Operating on the 2.4GHz band, it works great for WiFi, Bluetooth or ZigBee. Just connect the antenna using the attached u.fl connector and then peel and stick!

Dimensions: 41 x 30mm, 350mm cable

Features:

  • Type: Omni-Directional
  • Min Frequency: 2300|5150 MHz
  • Max Fequency: 3800|5875 MHz
  • Impedance: 50 Ohm
  • Maximum VSWR: 3
  • Typical Gain: 2(Max) dB
