This item is archived from our catalog and no longer for sale. This page is available as a reference only.

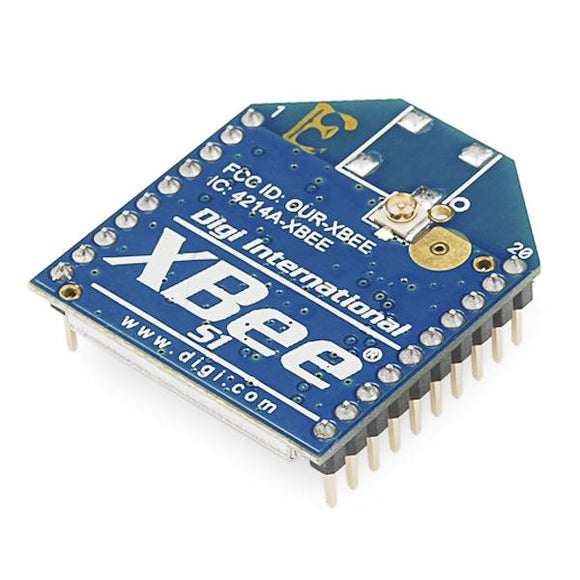

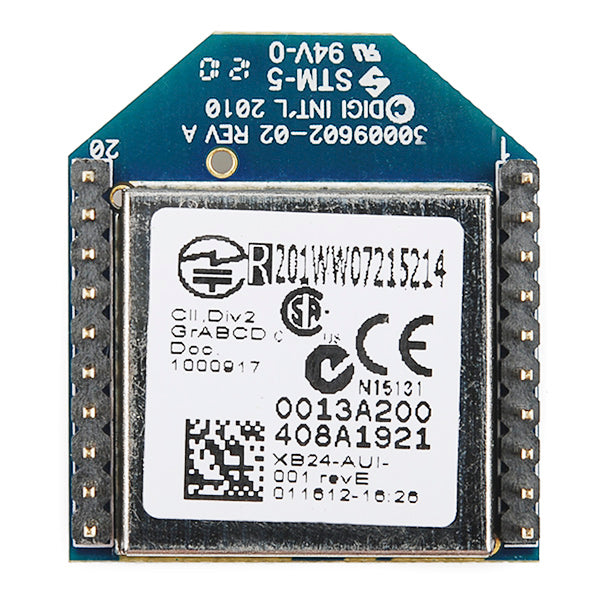

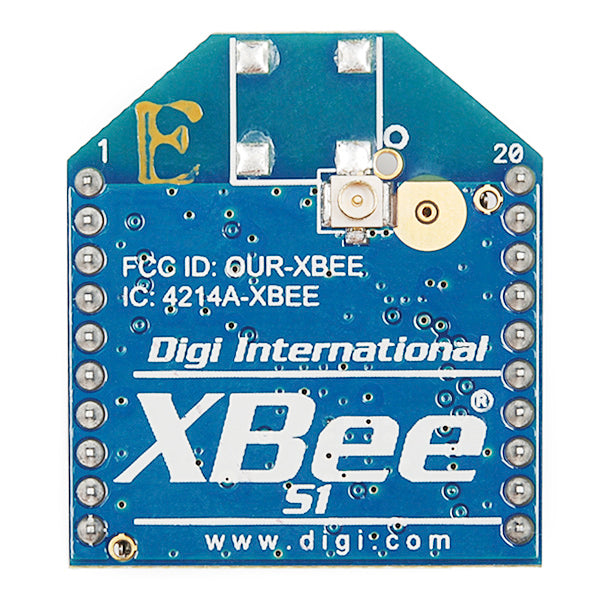

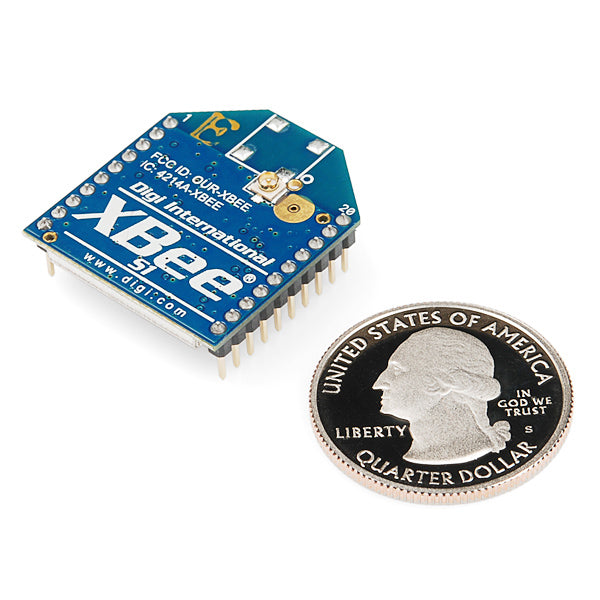

XBee 802.15.4 (1mW - U.FL Connector)
This is the very popular 2.4GHz XBee module from Digi. These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.
Note: If you are using these outside of Canada/US, please check with your local laws regarding radio communication.
Note: If you want to using Zigbee protocol, please select a Zigbee radio instead.
Features:
- 3.3V @ 50mA
- 250kbps Max data rate
- 1mW output (+0dBm)
- 300ft (100m) range
- Fully FCC certified
- 6 10-bit ADC input pins
- 8 digital IO pins
- 128-bit encryption
- Local or over-air configuration
- AT or API command set
- External Antenna Required
