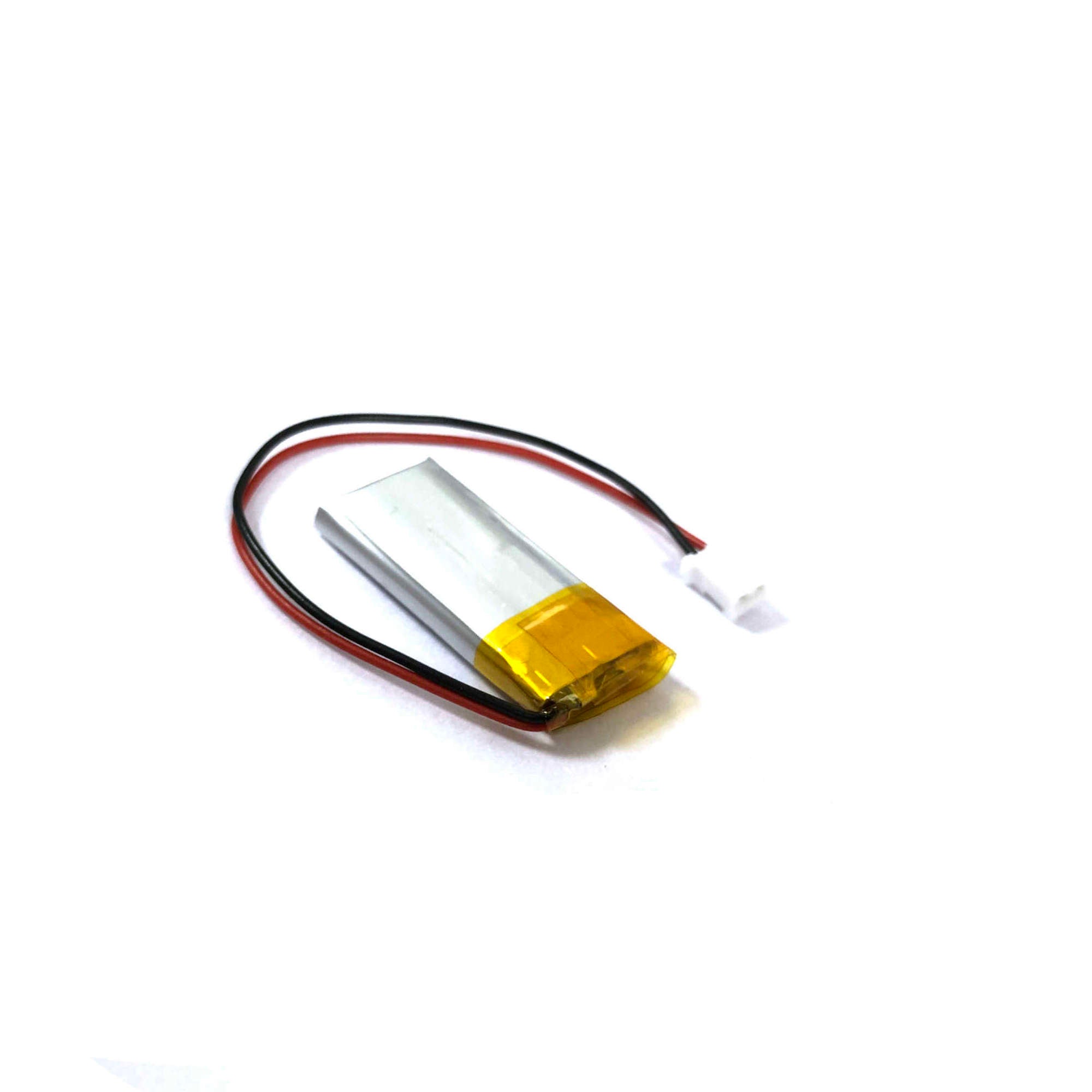

This is a very small, extremely light weight battery based on the new Polymer Lithium Ion chemistry. This is the highest energy density currently in production. Each cells outputs a nominal 3.7V at 110mAh! Comes terminated with a standard 2-pin JST-PH connector - 2mm spacing between pins. These batteries require special charging. Do not attempt to charge these with anything but a specialized Lithium Polymer charger.
Battery includes built-in protection against over voltage, over current, and minimum voltage.
Note: Be careful with the JST connectors. They can stick in pretty good and tugging on them can damage the connector.

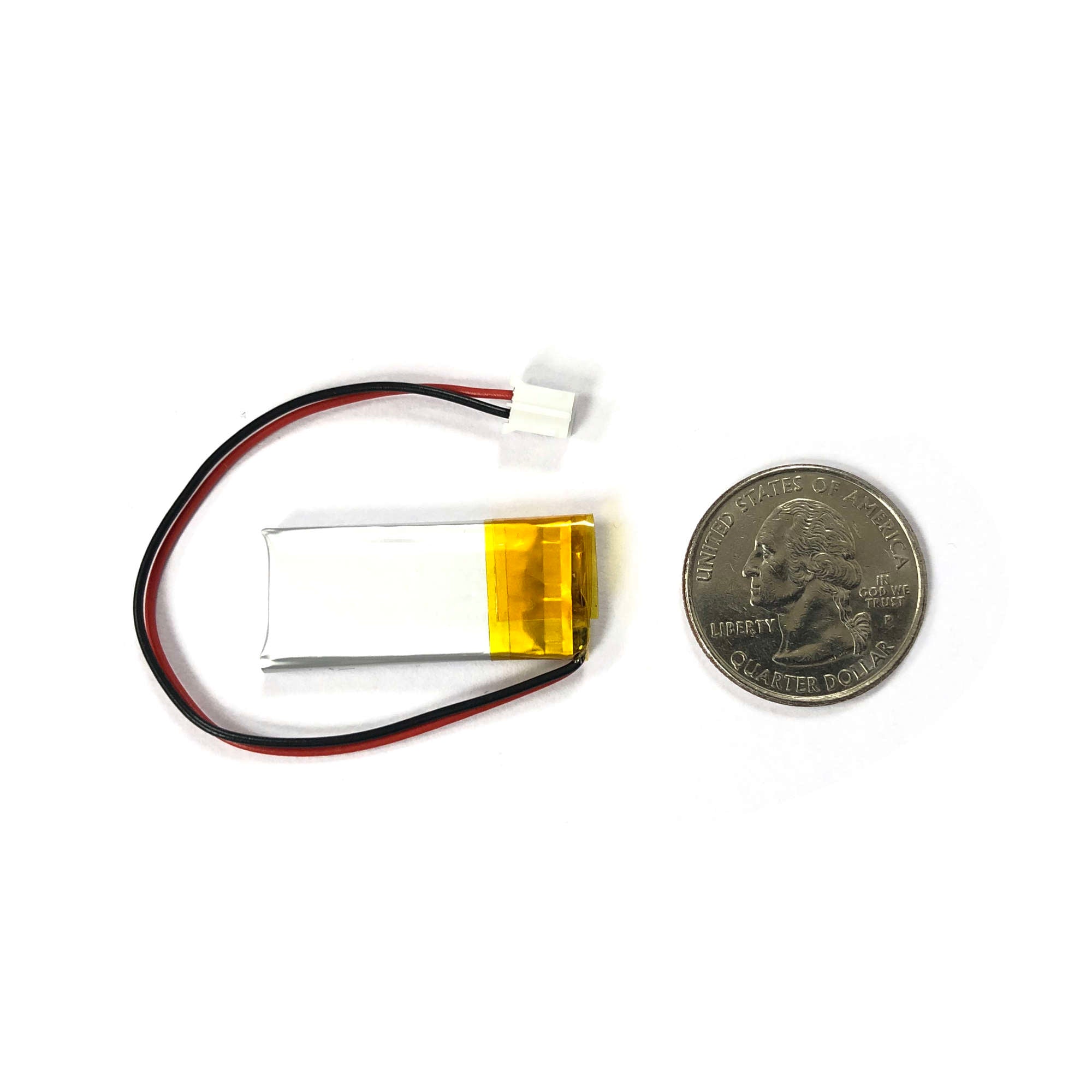

Dimensions: 31 x 14 x 4 mm (±0.5 mm)
- Excellent long-term self-discharge rates (<10% per month)
- Robust power source under extreme conditions (-20 to 60 °C)
