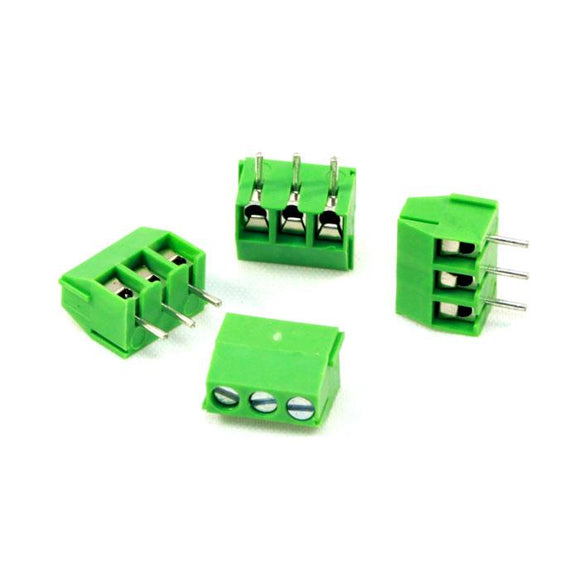

These side-entry screw terminal blocks have a pitch of 3.5 mm (0.138″). Each block has three terminals for the stripped ends of 24 – 18 AWG wires, and units can slide together to make longer strips. They are rated for 125 V, 10 A (UL) and ship in packs of four.
Wires are held in place and released from these wire-to-board terminal blocks by the simple adjustment of a screw. These blocks let you easily make temporary connections to your PCB.
|Screw terminal block: 3.5 mm pitch, side entry.|
- Voltage rating (UL/IEC): 125/130 V
- Current rating (UL/IEC): 10/10 A
- Contact resistance: 20 mΩ
- Wire gauge: 24-18 AWG
- Wire strip length: 5 mm
