This item is archived from our catalog and no longer for sale. This page is available as a reference only.

Tamiya Universal Plate Large (210x160mm)

The Tamiya Universal Plate L (210 x 160 mm) provides a reconfigurable platform for building your own robot chassis. The set comes with a plate with gridded mounting holes, angle brackets, and mounting hardware that lets you mount mechanical components in a variety of positions.

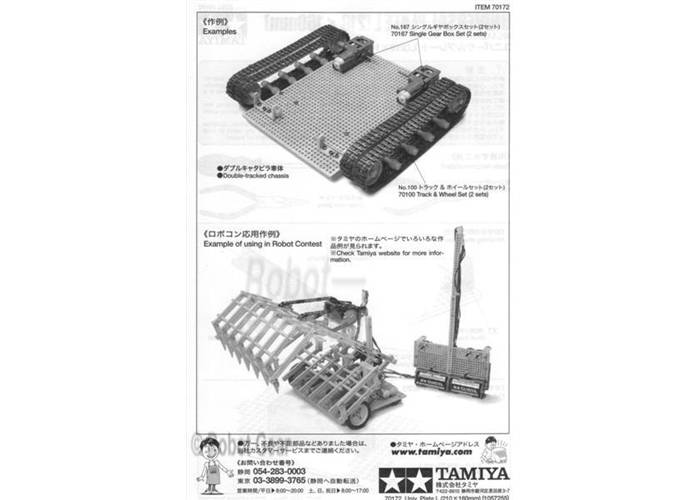

The Tamiya Universal Plate L (210 x 160 mm) is a customizable chassis designed to be compatible with multiple Tamiya products.

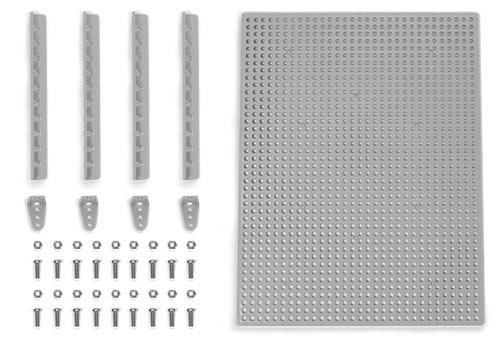

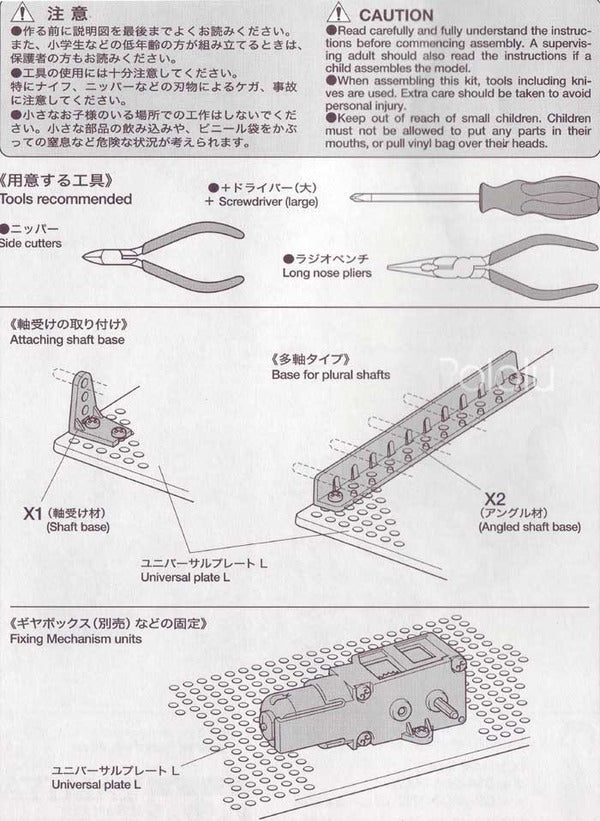

This set includes a plastic plate with an 41 x 31 grid of 3 mm holes spaced 5 mm apart, which provides space for many mechanical connections. The four included eleven-hole angle brackets can connect additional Universal Plates or can serve as a mounting point for an axle. The plate set also includes four shaft mounts (the triangular brackets in the above picture) for supporting axles at one of three heights from the plate. The kit provides eighteen screws and eighteen nuts for connecting the angle brackets and shaft mounts to the plate.

Included Parts

  • 41 x 31 grid of 3 mm holes spaced 5 mm apart (210 x 160 mm, 8.27" x 6.3")
  • Four eleven-hole angle brackets
  • Four shaft mounts
  • 18 screws and 18 nuts
