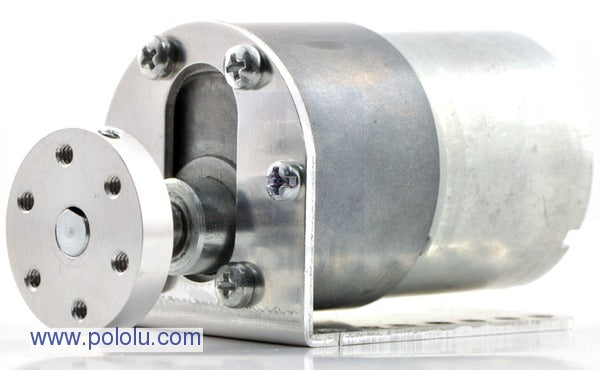

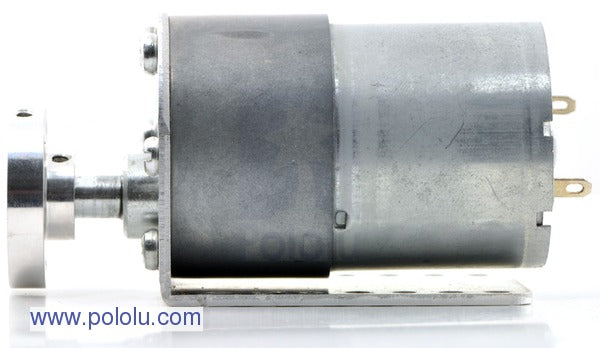

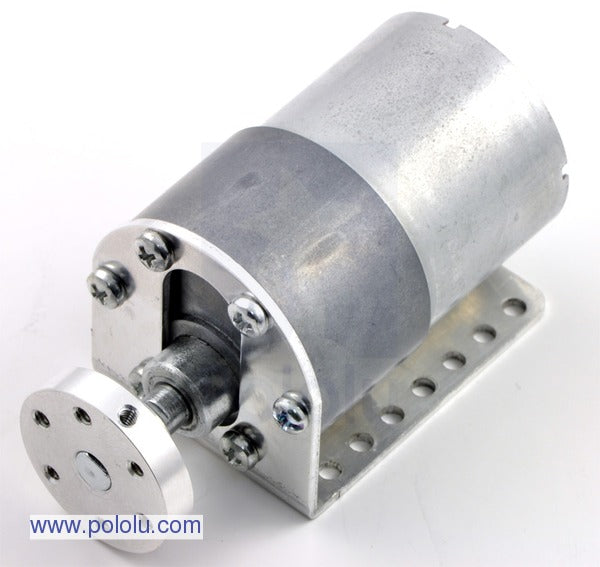

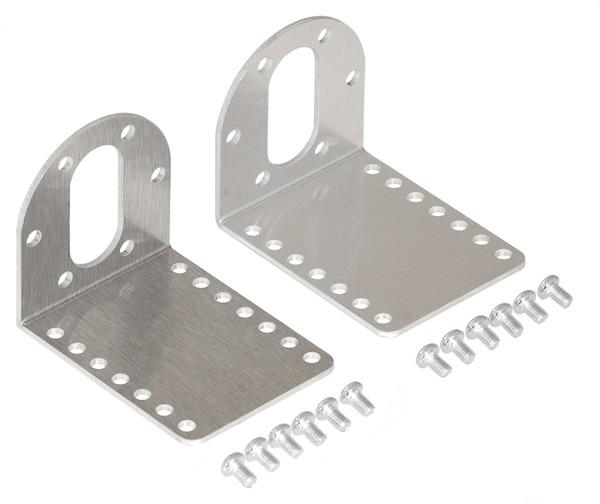

These aluminum gearmotor brackets let you securely mount Pololu’s 37D mm metal gearmotors to your project. The brackets are sold in pairs, and each bracket includes six M3 screws for securing the motor to the bracket. Each bracket also features fourteen mounting holes for M3 or #4-size screws (not included), giving you a variety of mounting options.
These light-weight brackets (under 15 g each) are specifically designed for the Pololu 37D mm metal gearmotors, such as the 19:1 metal gearmotor 37Dx52L mm and the 19:1 metal gearmotor 37Dx52L mm with 64 CPR encoder. Each bracket features fourteen mounting holes (seven along each edge) for M3 or #4-size screws, giving you a variety of mounting options. A total of twelve M3 screws (six for each bracket) are included for securing the motors to the brackets.
Our 6mm mounting hub works nicely with this bracket.

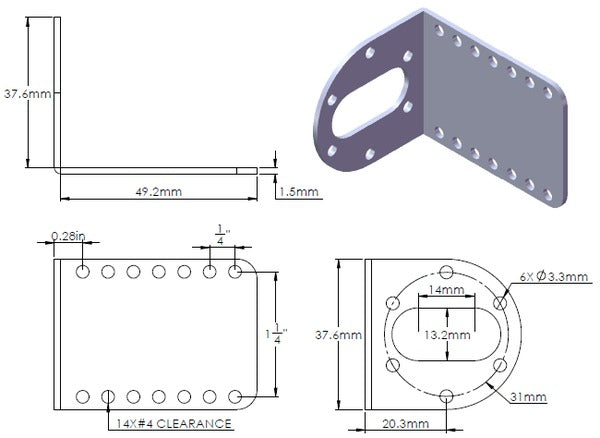

|Mechanical drawing for the Pololu 37D mm metal gearmotor bracket.|
