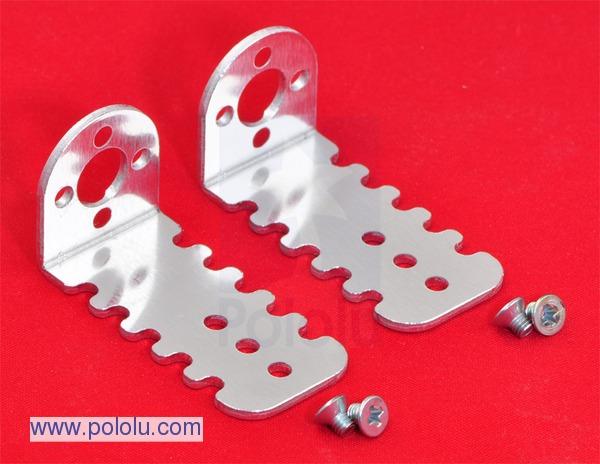

These aluminum gearmotor brackets let you securely mount Pololu’s older, now-discontinued 25:1 and 67:1 20D mm metal gearmotors to your project. The brackets are sold in pairs, and each bracket includes two M2.5 screws for securing the motor to the bracket. Each bracket also features three mounting holes and ten mounting slots for M3 or #4-size screws (not included), giving you a variety of mounting options.
Note: This bracket work with the newer 29:1, 73:1, or 154:1 20D mm metal gearmotors.
Note: This bracket only works with the older, now-discontinued 25:1 and 67:1 versions of our 20D mm line of metal gearmotors. We sell a slightly different bracket that works with the 29:1, 73:1, and 154:1 metal gearmotor 20D mm that we currently offer.
|Pololu 20D mm gearmotor with bracket and hub.|
These light-weight brackets (under 5 g each) are specifically designed for the 25:1 metal gearmotor 20Dx44L mm and 67:1 Pololu metal gearmotor 20Dx45L mm. Each bracket features three mounting holes and ten mounting slots for M3 or #4-size screws, giving you a variety of mounting options. A total of four M2.5 screws (two for each bracket) are included for securing the motors to the brackets.
Our 4mm mounting hub works nicely with this bracket.

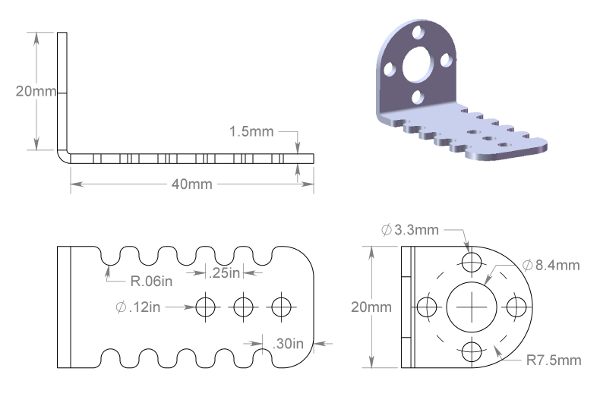

|Mechanical drawing for the Pololu bracket for discontinued 20D|
