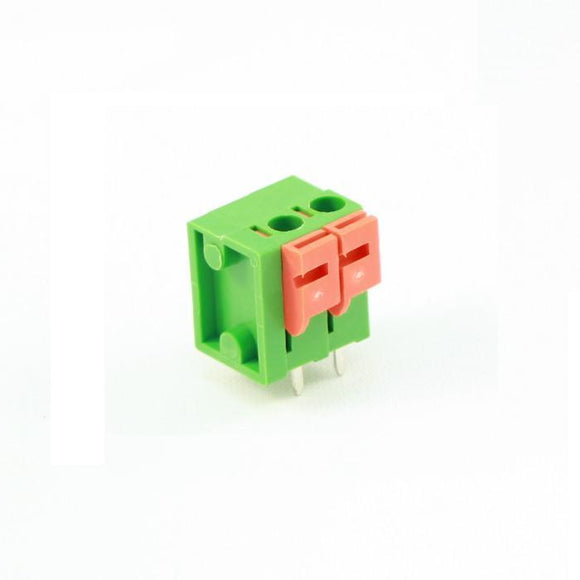

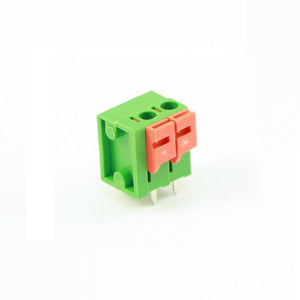

These top-entry screwless terminal blocks have a pitch of 0.2″ (5.08 mm). Each block has two spring terminals that automatically grip the stripped ends of inserted 22 – 16 AWG wires, allowing for easy, temporary connections to your PCB. They are rated for 300 V, 10 A (UL) and ship in packs of three.
|Screwless terminal block: 0.2" pitch, top entry.|
- Voltage rating (UL/IEC): 300/250 V
- Current rating (UL/IEC): 10/15 A
- Contact resistance: 20 mΩ
- Wire gauge: 22-16 AWG
- Wire strip length: 10 mm
