Screwless Terminal Block: 4-Pin, 0.2" Pitch, Side Entry (2-Pack)

This item is archived from our catalog and no longer for sale. This page is available as a reference only.

Screwless Terminal Block: 4-Pin, 0.2" Pitch, Side Entry (2-Pack)

These side-entry screwless terminal blocks have a pitch of 0.2″ (5.08 mm). Each block has four spring terminals that automatically grip the stripped ends of inserted 22 – 16 AWG wires, allowing for easy, temporary connections to your PCB. They are rated for 300 V, 10 A (UL) and ship in packs of two.

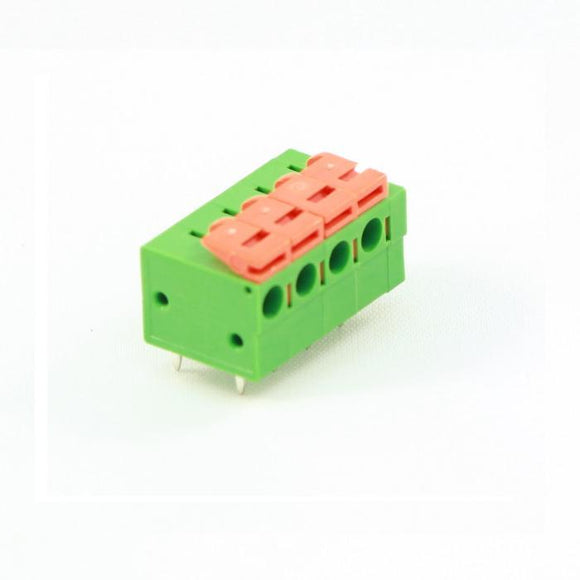

Screwless terminal block: 0.2" pitch, side entry.


Specifications:

  • Voltage rating (UL/IEC): 300/250 V
  • Current rating (UL/IEC): 10/15 A
  • Contact resistance: 20 mΩ
  • Wire gauge: 22-16 AWG
  • Wire strip length: 10 mm
