Screwless Terminal Block: 3-Pin, 0.1" Pitch, Top Entry (3-Pack)

These top-entry screwless terminal blocks have a pitch of 0.1″ (2.54 mm). Each block has three spring terminals that automatically grip the stripped ends of inserted 26 – 18 AWG wires, allowing for easy, temporary connections to your PCB. They are rated for 150 V, 2 A (UL) and ship in packs of three.

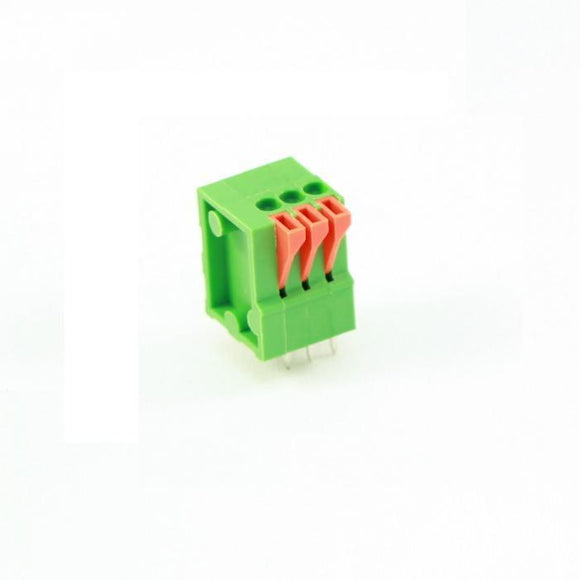

Screwless terminal block: 0.1" pitch, top entry.


Specifications:

  • Voltage rating (UL/IEC): 150/130 V
  • Current rating (UL/IEC): 2/6 A
  • Contact resistance: 20 mΩ
  • Wire gauge: 26-18 AWG
  • Wire strip length: 11 mm
