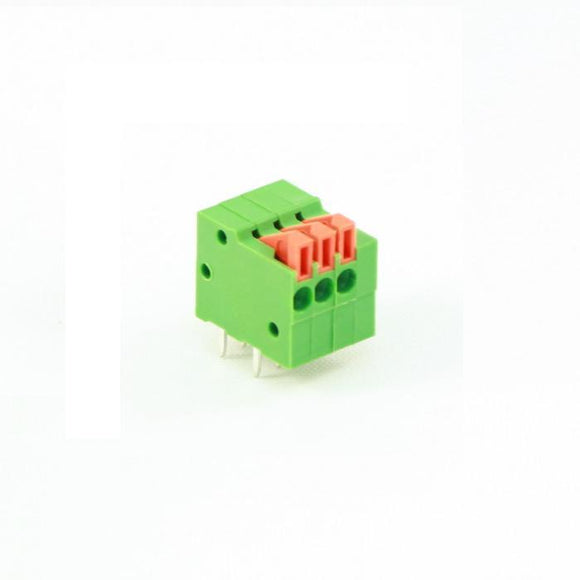

These side-entry screwless terminal blocks have a pitch of 0.1″ (2.54 mm). Each block has three spring terminals that automatically grip the stripped ends of inserted 26 – 18 AWG wires, allowing for easy, temporary connections to your PCB. They are rated for 150 V, 2 A (UL) and ship in packs of three.
|Screwless terminal block: 0.1" pitch, side entry.|
- Voltage rating (UL/IEC): 150/130 V
- Current rating (UL/IEC): 2/6 A
- Contact resistance: 20 mΩ
- Wire gauge: 26-18 AWG
- Wire strip length: 11 mm
