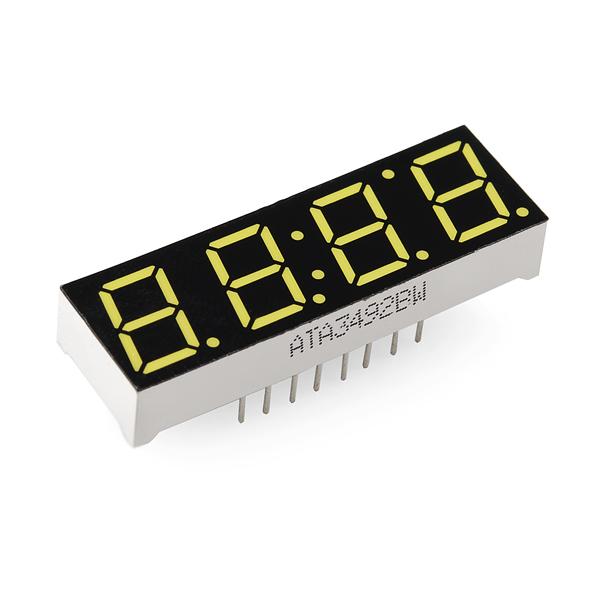

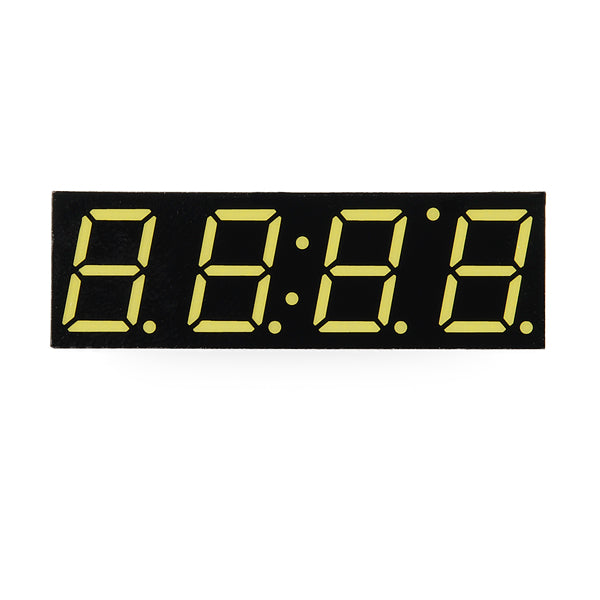

This is a basic, 4-digit 7-segment display - white in color. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points.

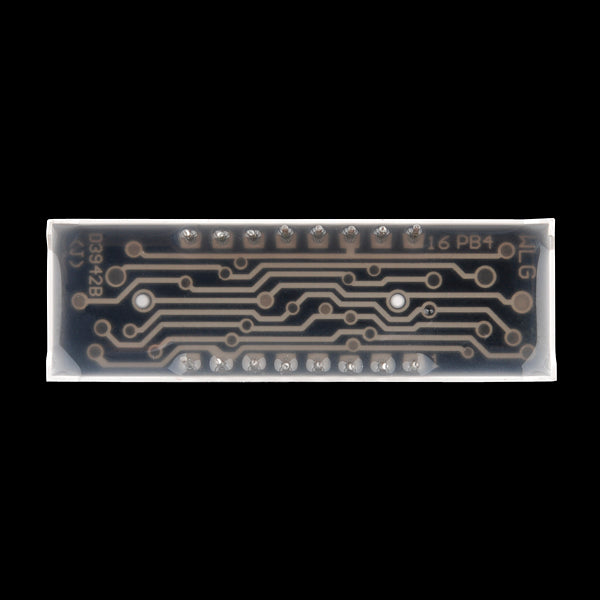

The LEDs have a forward voltage of 1.9VDC and a max forward current of 20mA. The hardware interface is sixteen (two rows of eight) through-hole pins.

Dimensions:

  • Overall Display: 40.18 x 12.8 mm (1.58 x 0.50")
  • Digit Height: 10mm (0.39")

Datasheet:
