LED 7-Segment Display (Blue)

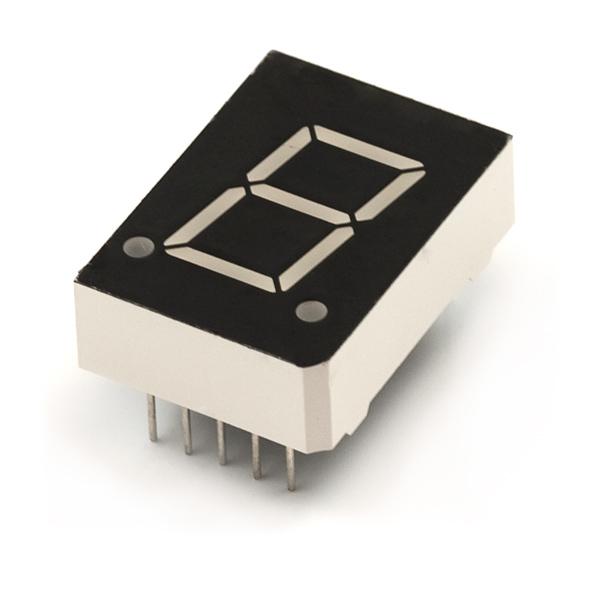

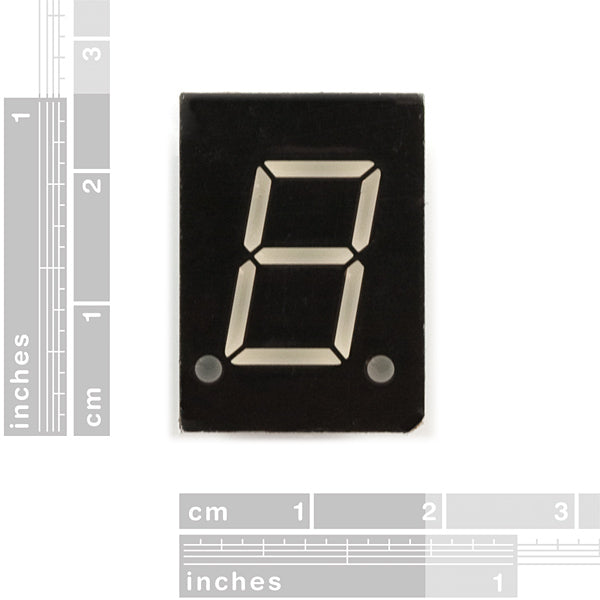

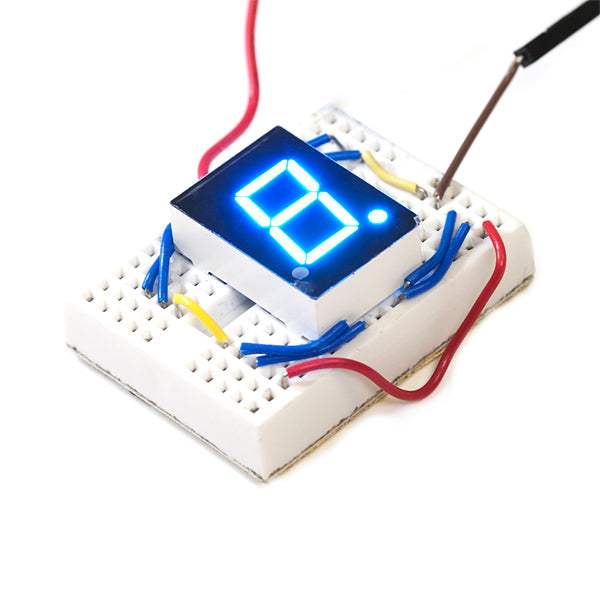

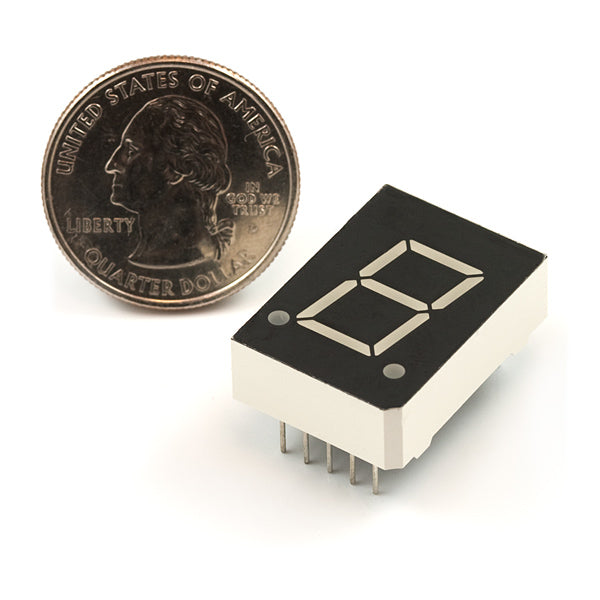

Your basic 7-segment LED, but in blue! Common anode. Two decimal points, but only the one on the right is wired. Digit height is 0.6". Overall height is 1".

REMEMBER TO USE A CURRENT LIMITING RESISTOR. 330Ω or 470Ω will do.

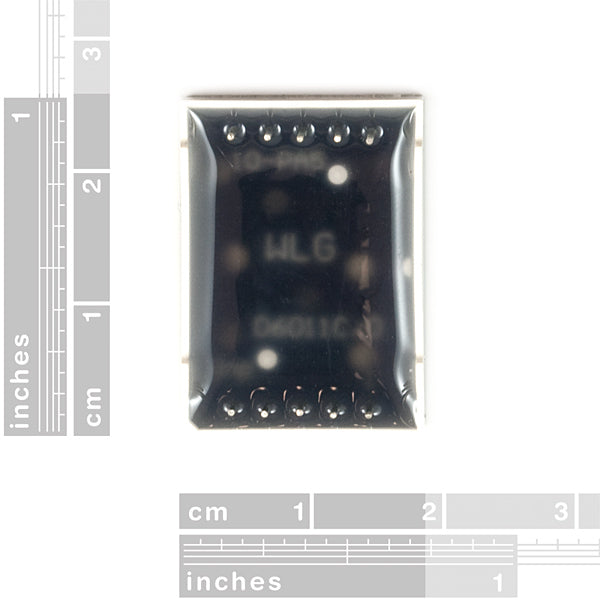

Note: As far as we can tell the pinout in the datasheet is incorrect. This is the correct pin-out:

1: E 10: G
2: D 9: F
3: Common Anode 8: Common Anode
4: C 7: A
5: DP 6: B
