This item is archived from our catalog and no longer for sale. This page is available as a reference only.

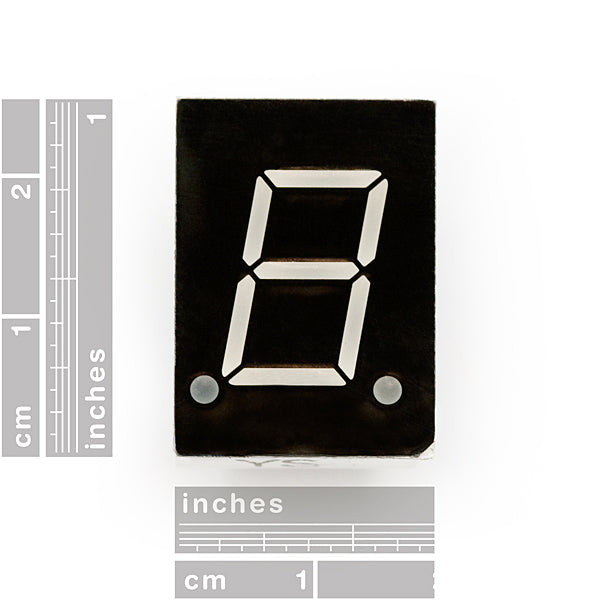

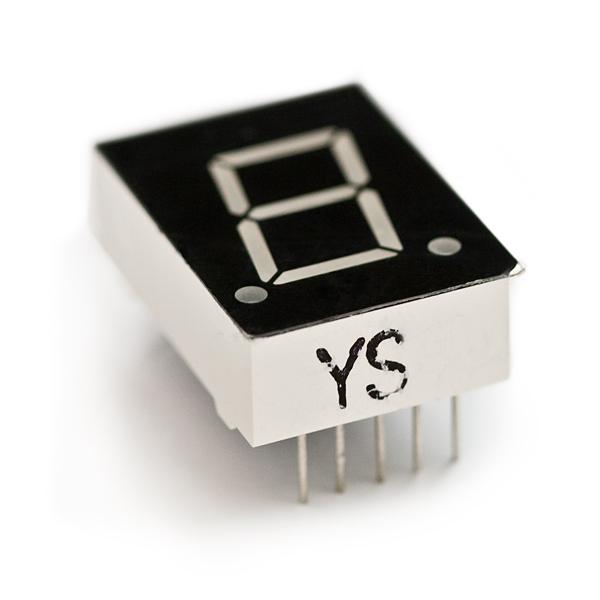

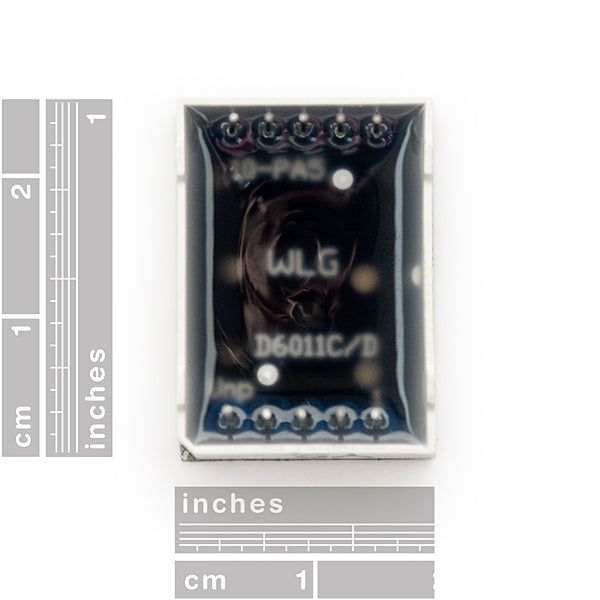

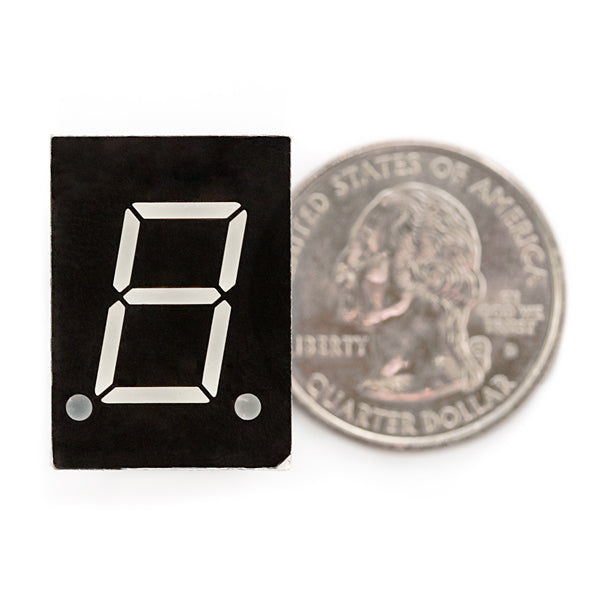

LED 7-Segment Display (0.6 inch Red)

Your basic 7-segment LED. Common anode. Two decimal points, but only the one on the right is wired. Digit height is 0.6". Overall height is 1"

REMEMBER TO USE A CURRENT LIMITING RESISTOR. 330Ω or 470Ω will do.

Note: As far as we can tell the pinout in the datasheet is incorrect. This is the correct pin-out:

1: E 10: G
2: D 9: F
3: + 8: +
4: C 7: A
5: DP 6: B



Datasheet:

YSD-160AB3C-8
