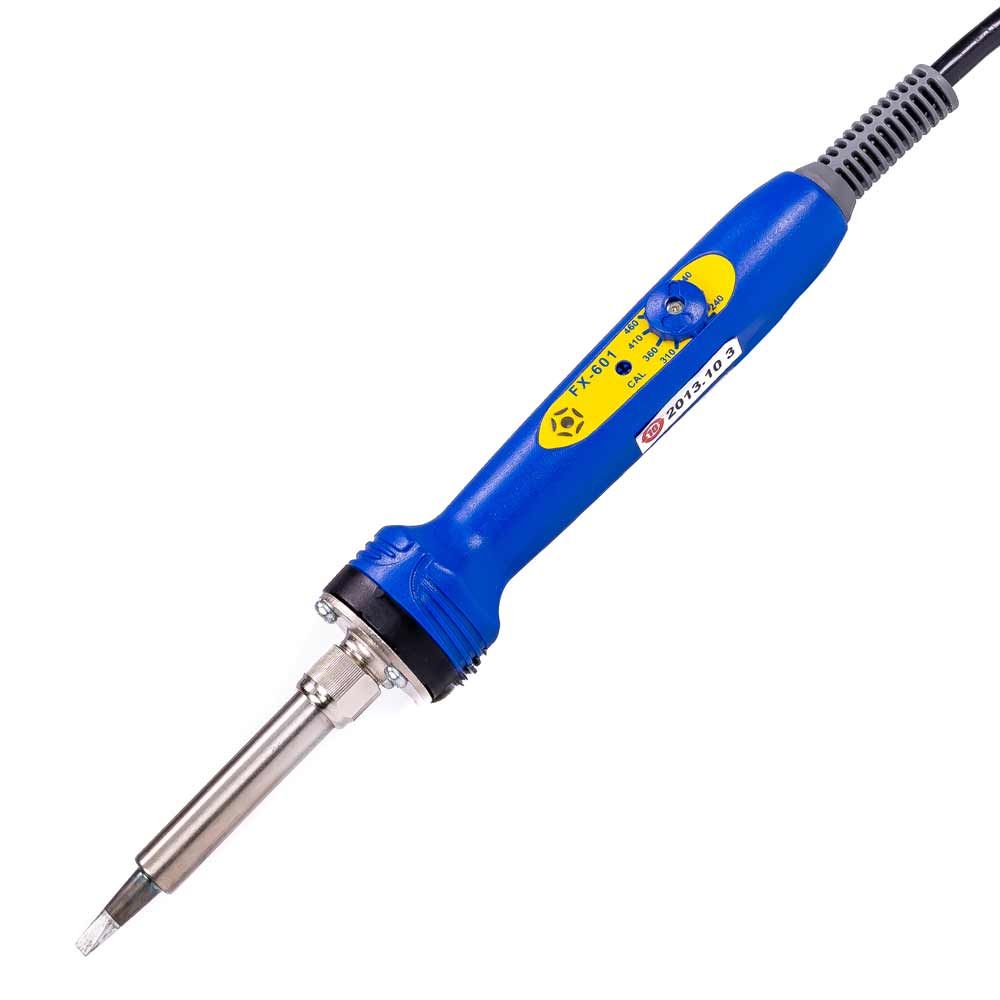

The Hakko FX-601 dial temperature soldering iron is ideal for soldering applications that require mobility or a long reach. The slender, ergonomic handpiece allows you to solder for long periods of time without hand fatigue.

  • Adjustable "electronic" closed-loop temperature control
  • Temperature range: 464°-1004°F

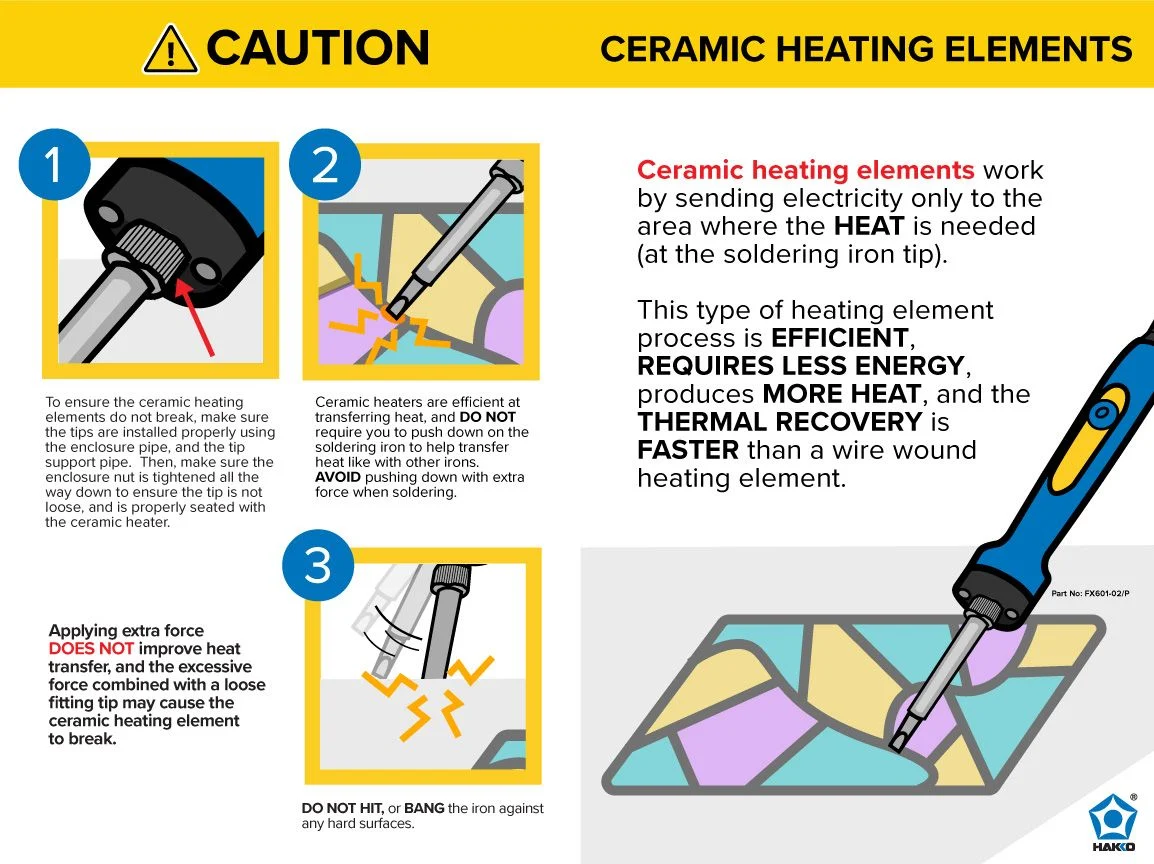

  • Ceramic heating element
  • Temperature control sensor in heater ensures consistent heat
  • Efficient heating (requires less energy = less wattage needed)
  • FAST thermal recovery
  • Slender, ergonomic handpiece 3-wire power cord
 Model Name  FX-601
 Part No.  FX601-02
 Power Consumption  67W, 120V
 Temperature Stability  ±1°C (1.8°F) at idle temperature
 Temperature Accuracy  ±10°C (18°F)
 Temperature Range  240-540°C (464-1004°F)
 Heating Element  Ceramic
 Tip-to-Ground Resistance  < 2 Ω
 Tip-to-Ground Potential  < 2 mV
 Reach  1.8m (6.0 ft.)
 Length (w/o cord)  235 mm (9.25 in.) w/T19-D5 tip
 Tips  T19 Series
 Standard Tip  T19-D5
 Weight (w/o cord)  68g (0.15 lb.) with T19-D5 tip
 Shipping Weight  254g (0.56 lb.)
 Shipping Dimensions  273 x 114 x 38 mm (10.75 x 4.5 x 1.5 in.)
 Country of Origin  MYS
 Safety Approval
