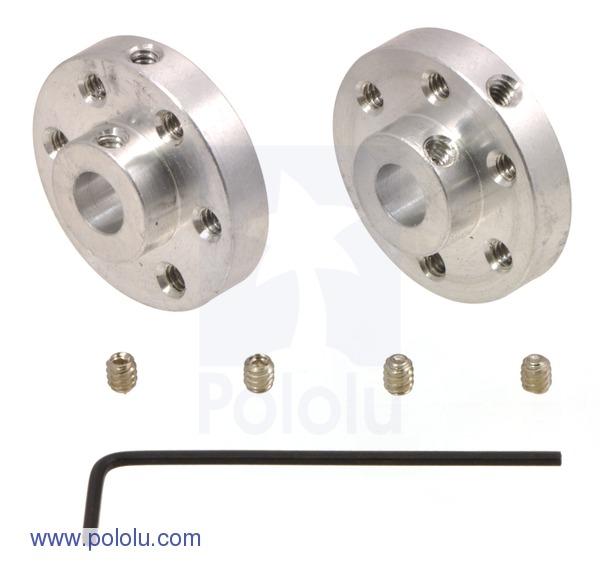

The Pololu universal aluminum mounting hub allows you to mount custom wheels and mechanisms to 6 mm motor shafts. The hubs are sold in pairs, and each hub includes two 4-40 set screws for securing a motor shaft to the hub. The set includes one Allen wrench and two 4-40 set screws for securing the hubs to motor shafts. Each hub has four mounting holes for 4-40 screws (not included).

These universal mounting hubs are designed to work with most 6 mm shafts, including round shafts and “D” shafts. Each hub has six mounting holes for 4-40 screws (not included), letting you mount custom wheels or mechanisms to your motors. 4-40 hex set screws (two included for each hub) allow secure coupling of shaft to hub. A 0.05" hex wrench (often the smallest size in SAE Allen wrench sets) is included for use with the set screws.

The picture below shows a hub with Pololu’s 19:1 metal gearmotor 37Dx52L mm and a Pololu 37D mm metal gearmotor bracket. This hub will work with any of our 37D mm metal gearmotors.


Mechanical drawing for the Pololu universal aluminum mounting hub for 6 mm shaft.

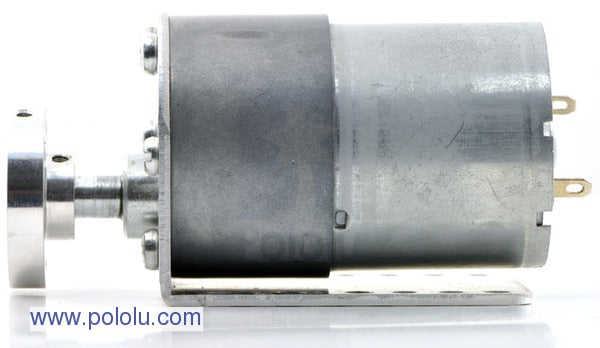

Gearmotor with bracket and hub.

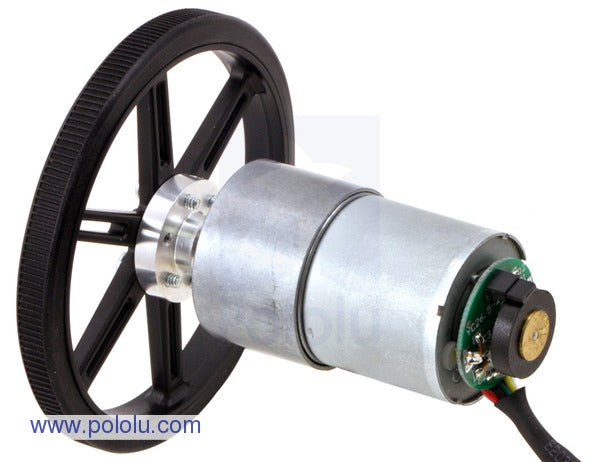

Black Pololu 90×10mm wheel on a
