This item is archived from our catalog and no longer for sale. This page is available as a reference only.

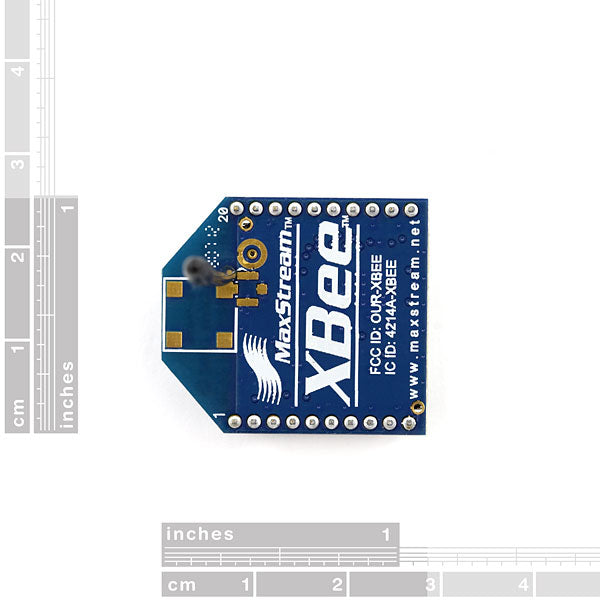

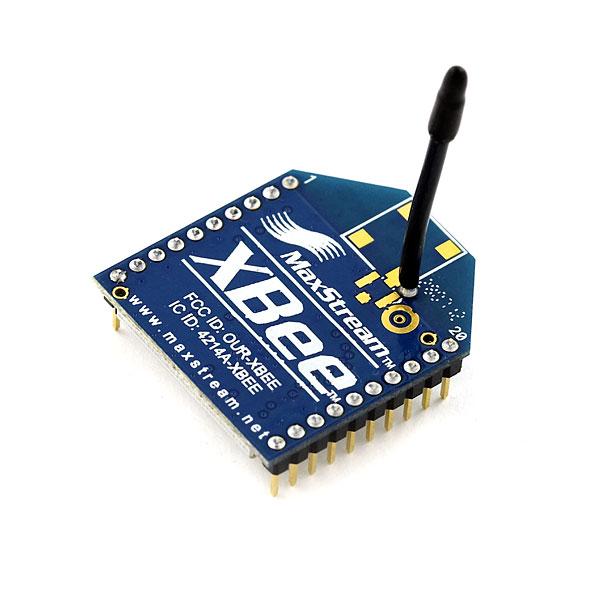

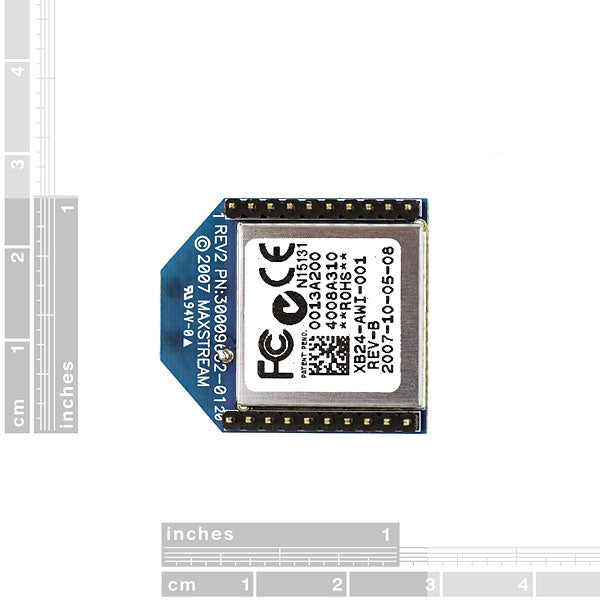

XBee 802.15.4 (1 mW - Wire Antenna)

This is the very popular 2.4GHz XBee module from Digi. These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

Note: If you are using these outside of Canada/US, please check with your local laws regarding radio communication.

Note: If you want to using Zigbee protocol, please select a Zigbee radio instead.

Features:

  • 3.3V @ 50mA
  • 250kbps Max data rate
  • 1mW output (+0dBm)
  • 300ft (100m) range
  • Wire antenna
  • Fully FCC certified
  • 6 10-bit ADC input pins
  • 8 digital IO pins
  • 128-bit encryption
  • Local or over-air configuration
  • AT or API command set
