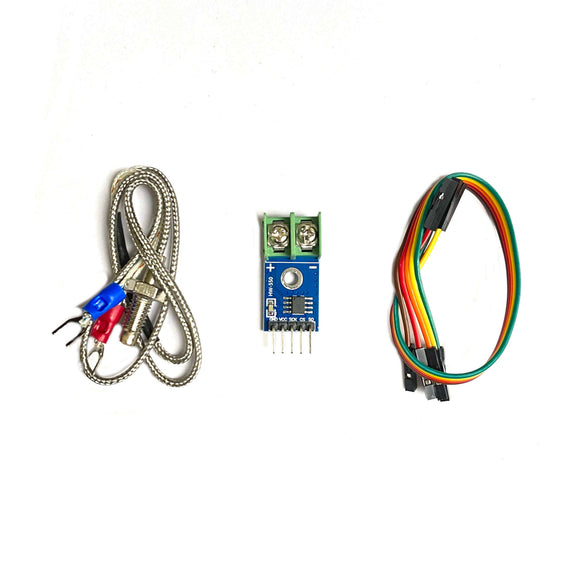

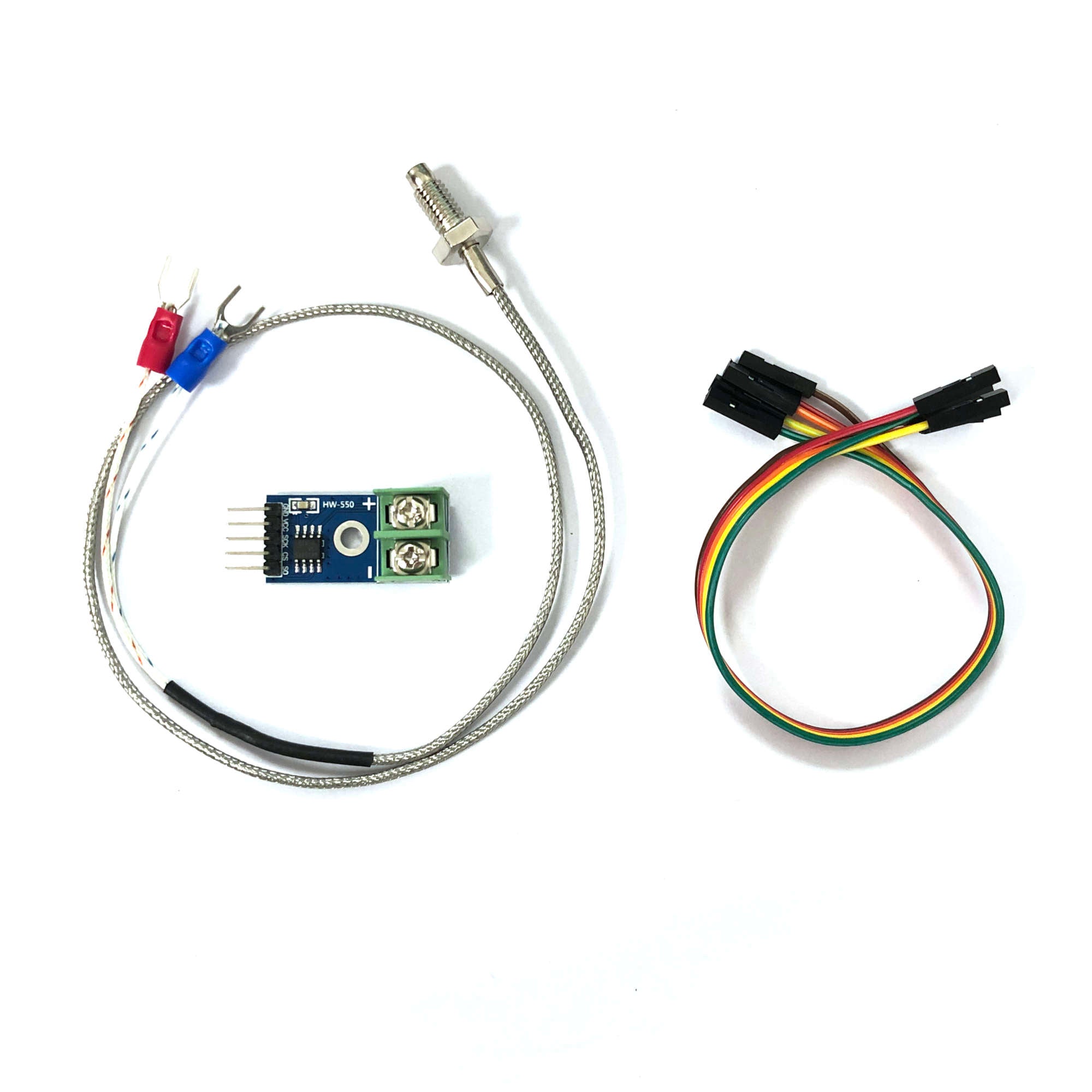

MAX6675 is with cold end compensation, linear correction, thermocouple disconnection detection of 12 bit resolution serial K type thermocouple analog to digital converter
  • Simple SPI serial port temperature value output
  • 2 degrees Celsius to 1024 degrees Celsius temperature range, the converter temperature resolution is 0.25 degrees C
  • The film inside the cold end compensation
  • High impedance differential input
  • Thermocouple disconnection detection
  • Working voltage range of 3 ~ 5 5V, working current 50mA
  • The operating temperature range of -20 degrees C ~ 85
  • ESD signal 9, 2000V
  • Power supply voltage:3~5V DC
