NeoPixel Compatible WS2812 5050 RGB LED Module

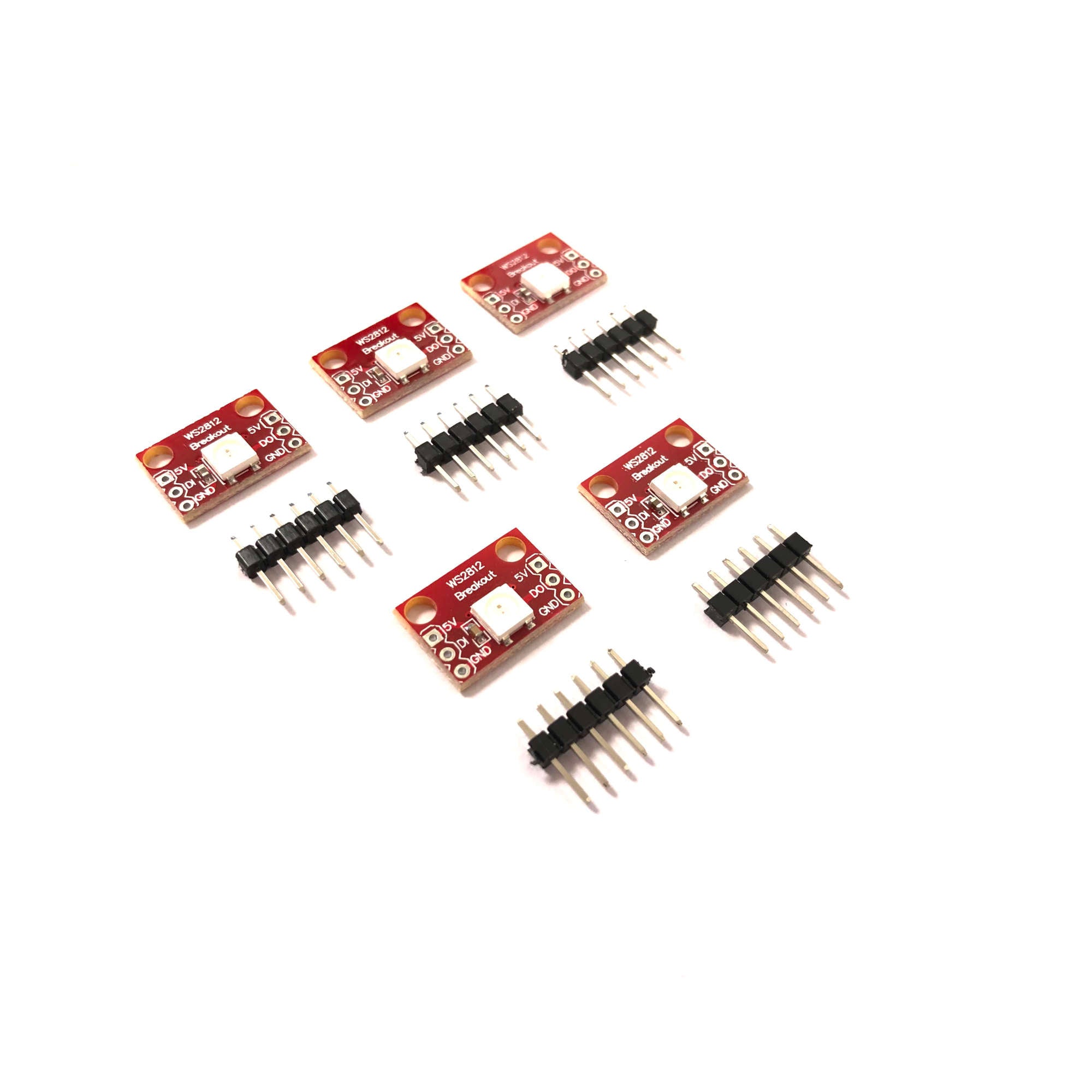

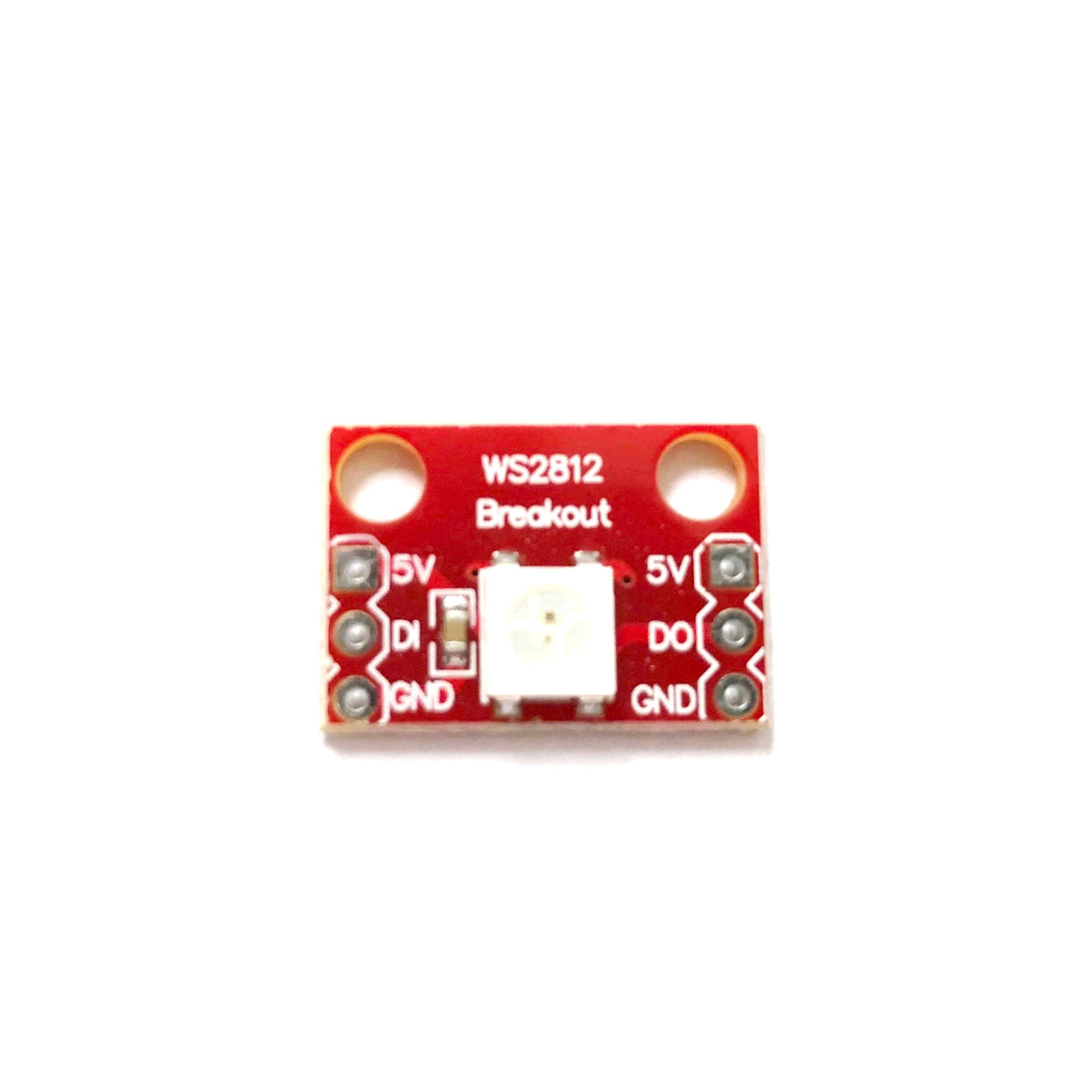

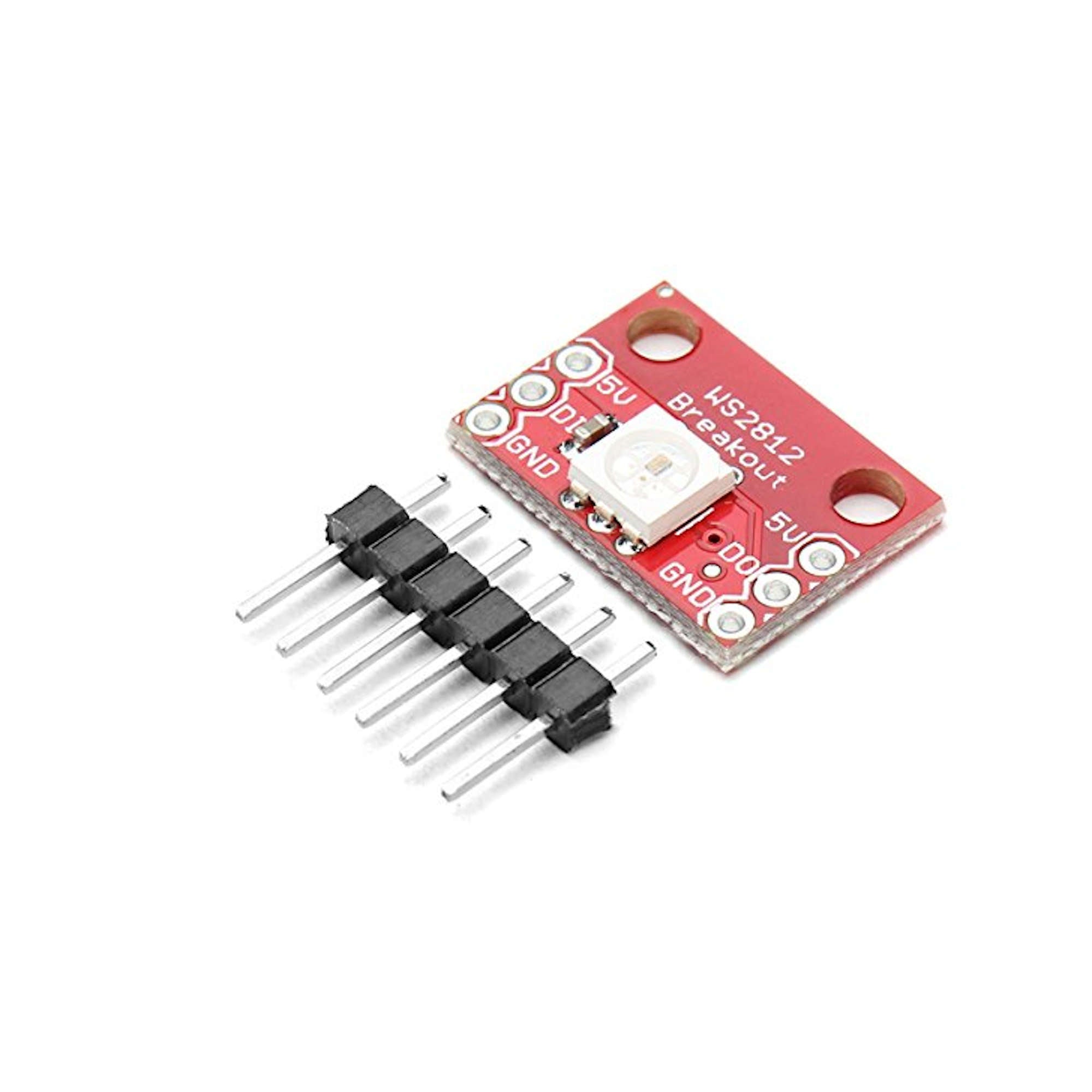

This is a breakout board for the WS2812B RGB LED. The WS2812B (or "NeoPixel") is actually an RGB LED with a WS2811 built right into the LED! All the necessary pins are broken out to 0.1" spaced headers for easy bread-boarding. Several of these breakouts can even be chained together to form a display or an addressable string.

At full brightness, each breakout board can pull about 60mA (20mA per colour channel).

Supply Voltage (V): 5
Length (mm) 12.5
Width (mm) 17
Height (mm) 3
