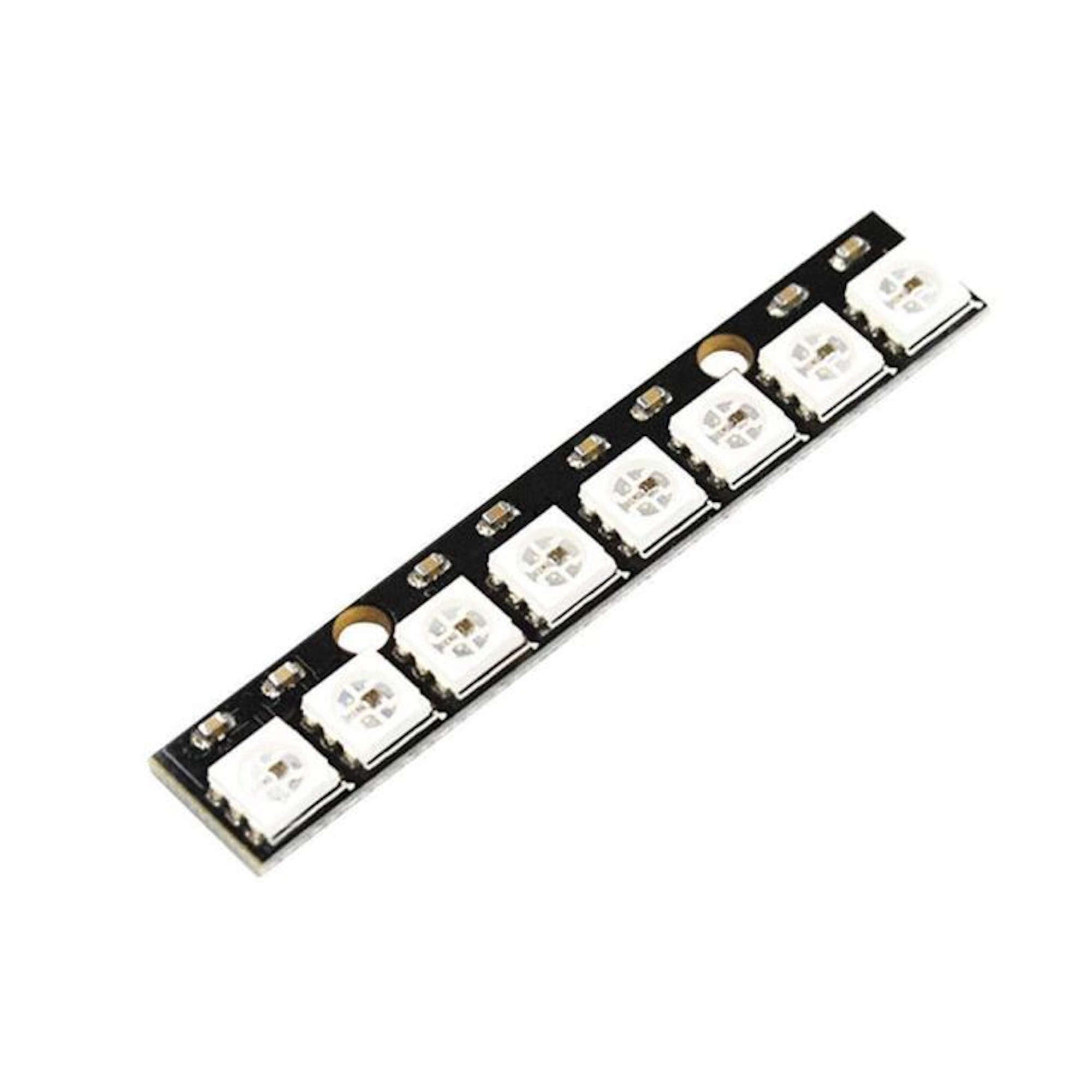

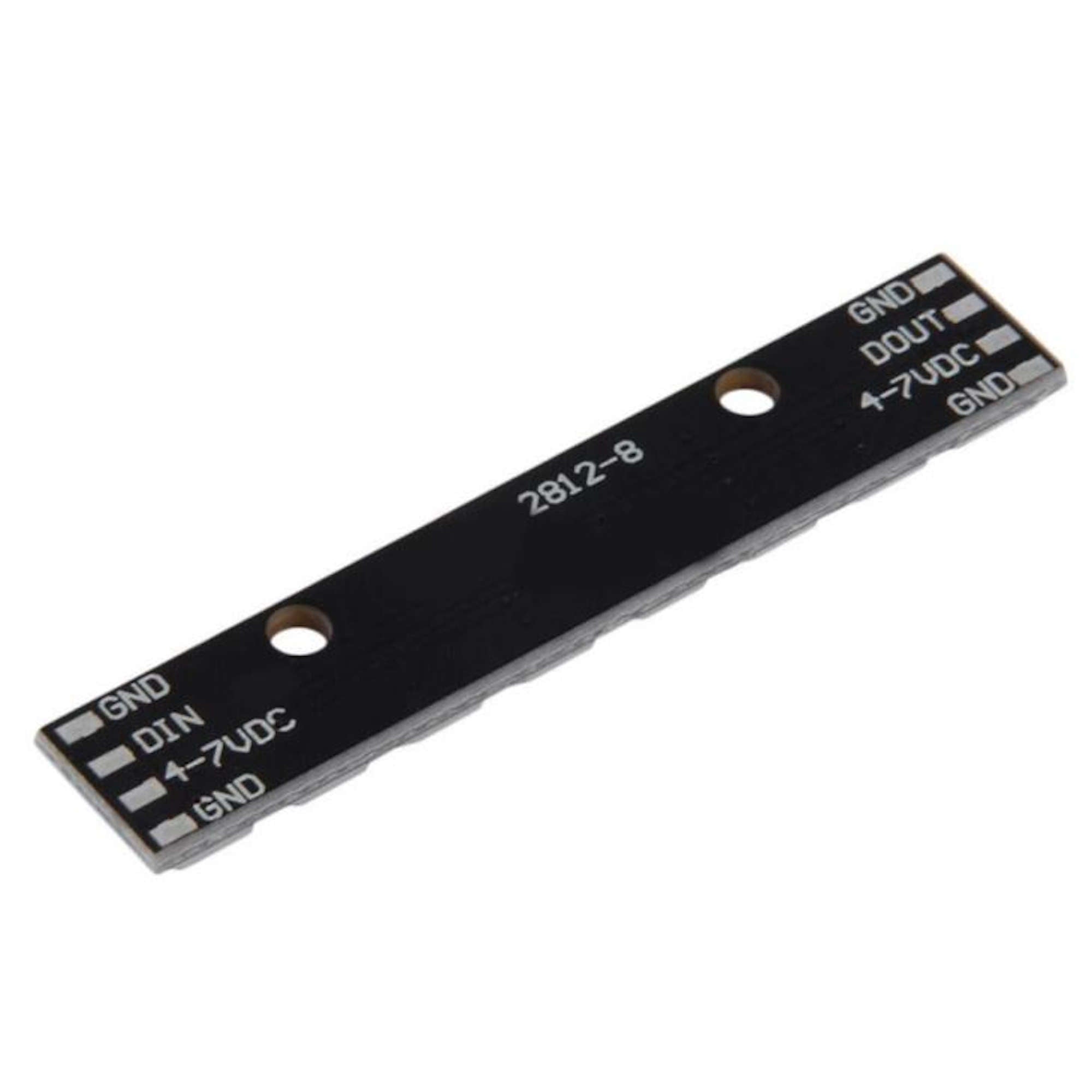

NeoPixel Compatible WS2812 5050 RGB LED (8 LED Stick)

Description:

  • Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.

  • The control circuit and the LED share one power source.

  • Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.

  • Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.

  • Built-in electric reset circuit and power lost reset circuit.

  • Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.

  • Cascading port transmit signal by single line.

  • When the refresh rate is 30fps, cascade number are not less than1024 points.

  • Send data at speeds of 800Kbps.


Specifications:

  • Chip: WS2812
  • Light source: 5050 RGB
  • Voltage: 5V


Applications:

  • Full-color module, Full color soft lights a lamp strip.
  • LED decorative lighting, Indoor/outdoor LED video irregular screen.
  • colour: black
  • Material: metal
  • size: 5.3 x 0.8 x 0.2 cm



Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
