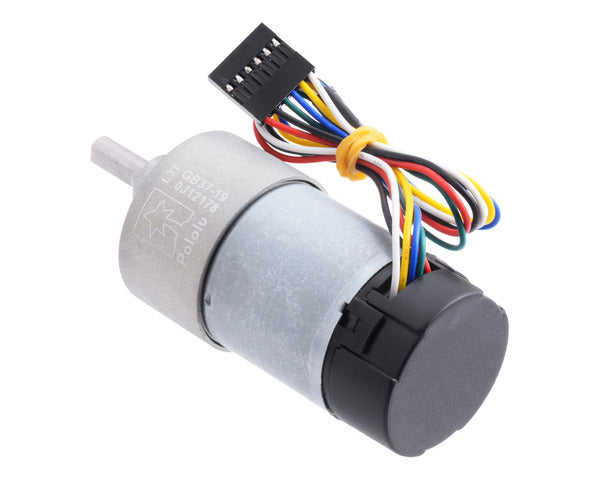

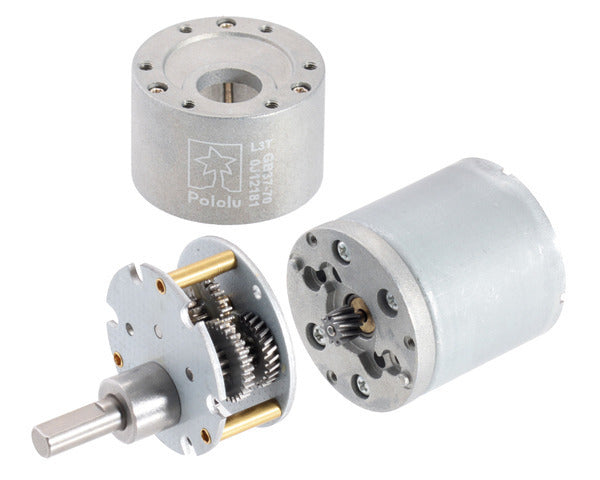

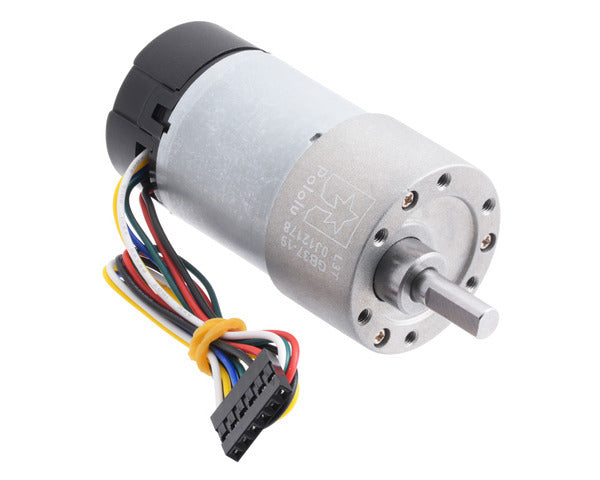

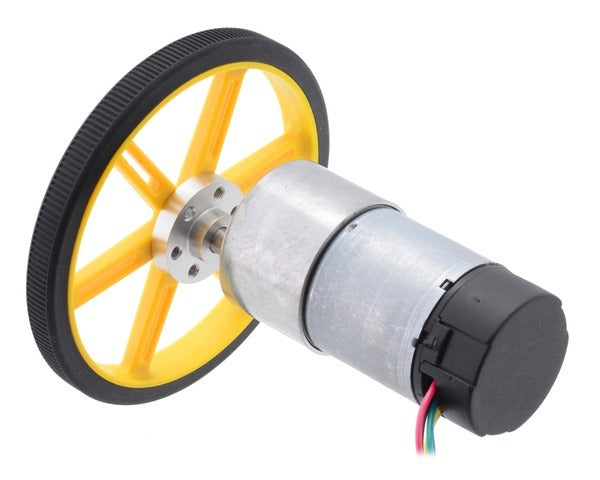

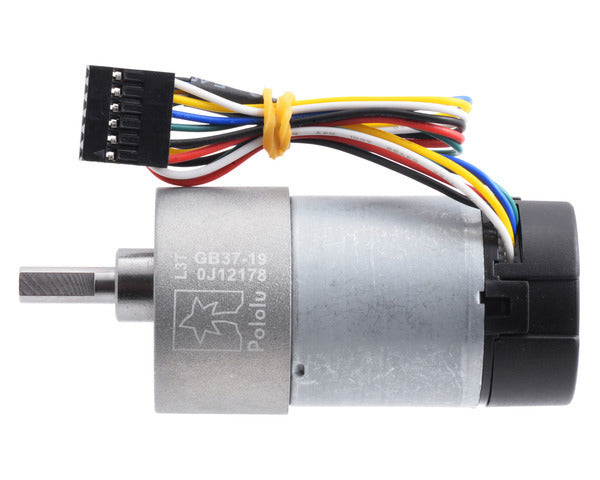

This gearmotor is a powerful 12V brushed DC motor with a 18.75:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 64 counts per revolution of the motor shaft, which corresponds to 1200 counts per revolution of the gearbox’s output shaft. The gearbox is composed mainly of spur gears, but it features helical gears for the first stage for reduced noise and improved efficiency. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft.

Key specifications:

voltage no-load performance stall extrapolation
12 V 540 RPM, 150 mA 8.5 kg⋅cm (120 oz⋅in), 5.5 A

Dimensions



Dimensions of the 37D mm metal gearmotor with 64 CPR encoder. Units are mm over [inches].

Dimensions

Size: 37D × 68L mm1
Weight: 200 g
Shaft diameter: 6 mm2

General specifications

Gear ratio: 18.75:1
No-load speed @ 12V: 540 rpm
No-load current @ 12V: 0.15 A
Stall current @ 12V: 5.5 A3
Stall torque @ 12V: 8.5 kg·cm3
Max output power @ 12V: 12 W
No-load speed @ 6V: 270 rpm4
No-load current @ 6V: 0.1 A4
Stall current @ 6V: 3.0 A4
Stall torque @ 6V: 5.0 kg·cm4

Performance at maximum efficiency

Max efficiency @ 12V: 55 %
Speed at max efficiency: 470 rpm
Torque at max efficiency: 1.0 kg·cm
Current at max efficiency: 0.76 A
Output power at max efficiency: 5.0 W

General specifications

Lead length: 20 cm5
Encoders?: Y
Encoder resolution: 64 CPR

Notes:

1: Length measurement is from gearbox face plate to back of encoder cap (it does not include the output shaft). See dimension diagram for details.
2: D shaft.
3: Stalling is likely to damage the gearmotor. Stall parameters come from a theoretical extrapolation of performance at loads far from stall. As the motor heats up, as happens as it approaches an actual stall, the stall torque and current decrease.
4: This motor will run at 6 V but is intended for operation at 12 V.
5: May vary by a few centimeters.
