DESCRIPTION

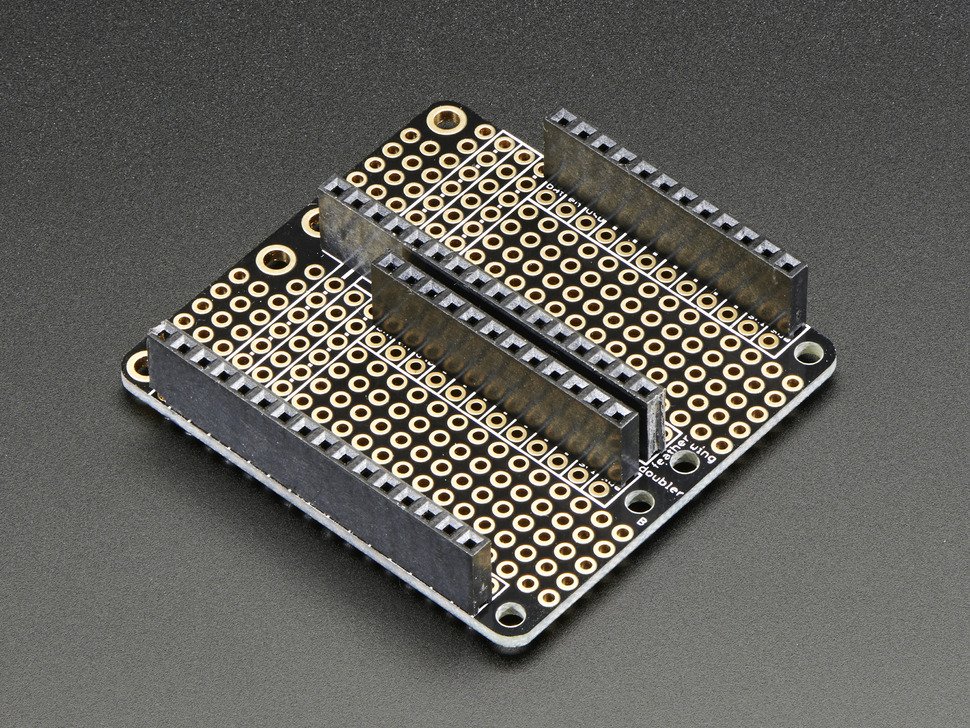

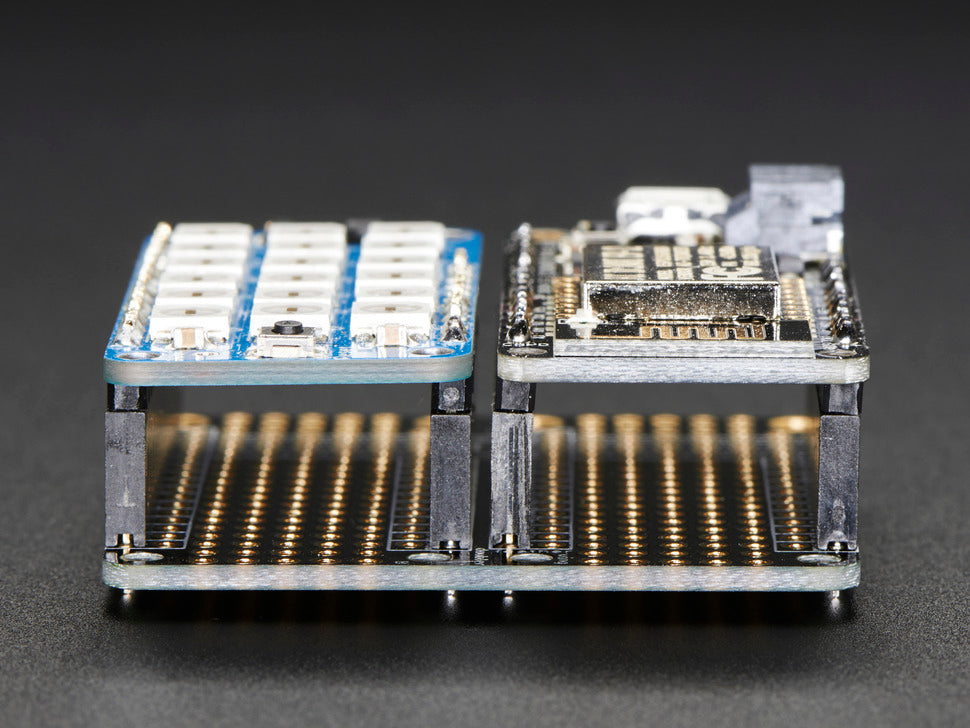

This is the FeatherWing Doubler - a prototyping add-on and more for all Feather boards. This is similar to FeatherWing Proto except there are two! The magic of the Doubler comes when stacking a Feather and another board on top of the Doubler so you can work with both boards simultaneously side-by-side! In addition to the board the Doubler comes with:

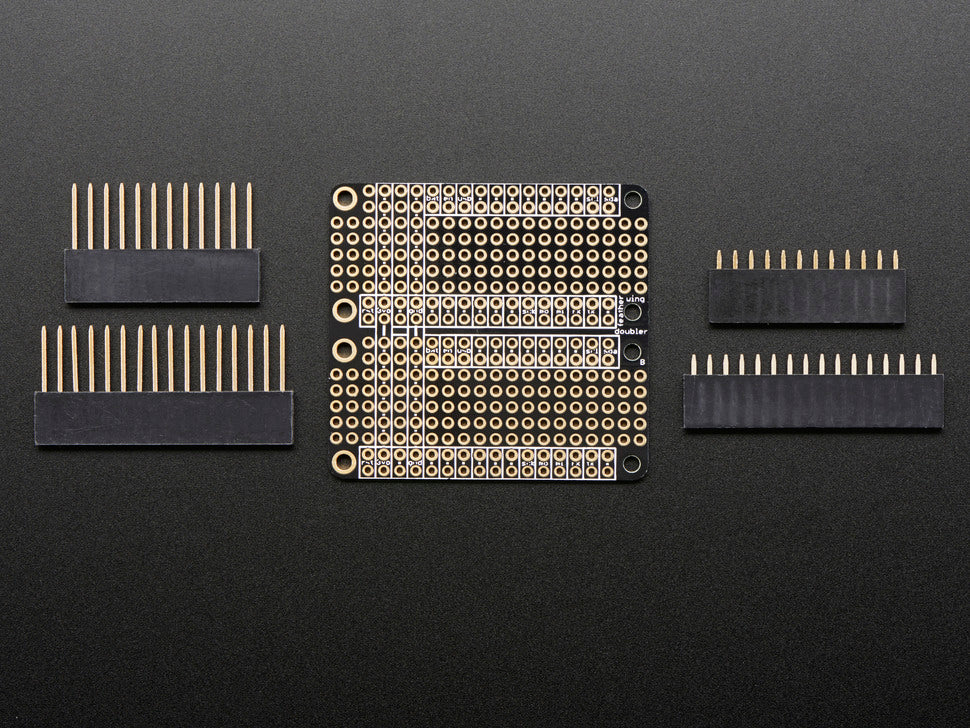

  • 1 Doubler PCB
  • 1 set Feather Stacking Headers (you can cut these down after soldering so they aren't stacking-style if you want a slimmer build)
  • 1 set Feather Female Headers

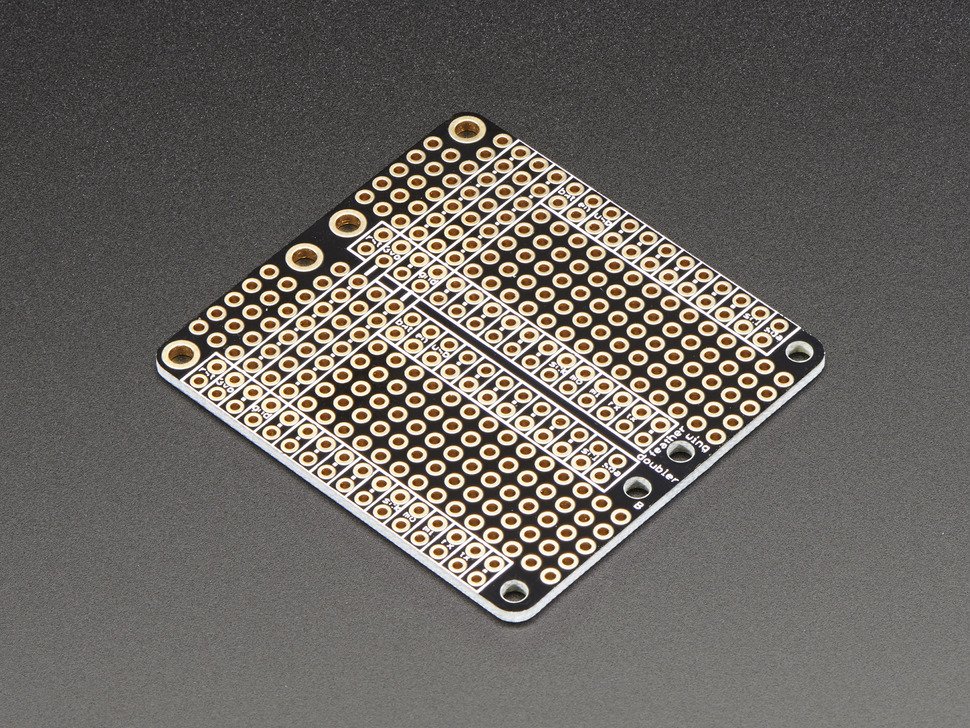

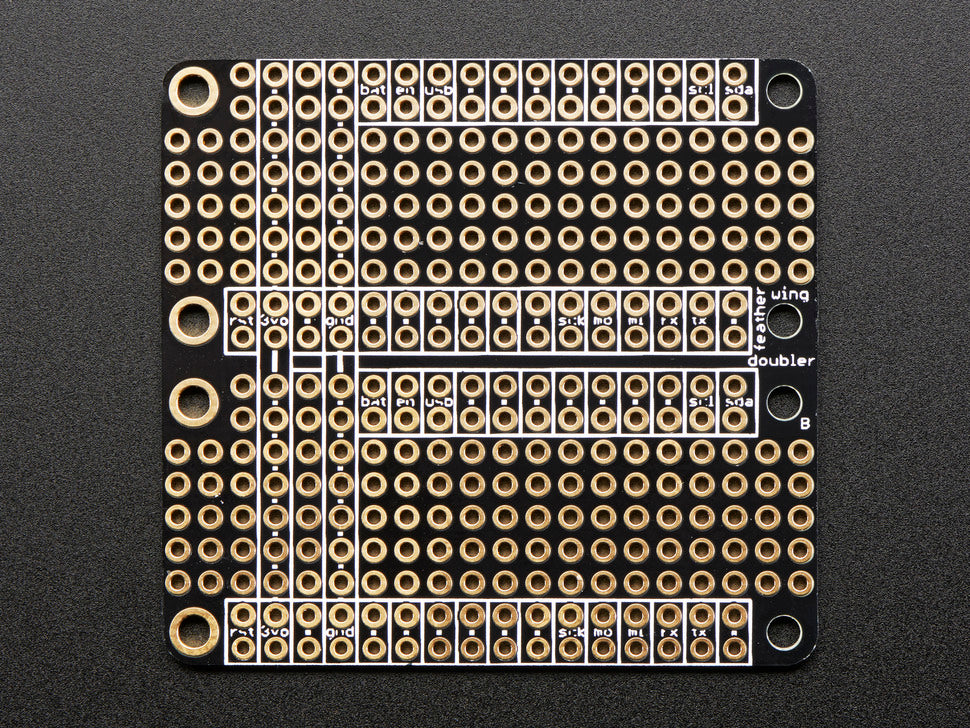

The Doubler, like the Proto, has a duplicate breakout for each pin on a Feather, as well as a bunch of plain grid proto holes. Also, the two sets of pins are cross connected and for GND and 3.3V, we give you a full strip of connected pads.

You'll need to solder on the female headers and/or stacking headers however you like, the Doubler comes as a mini kit!

TECHNICAL DETAILS

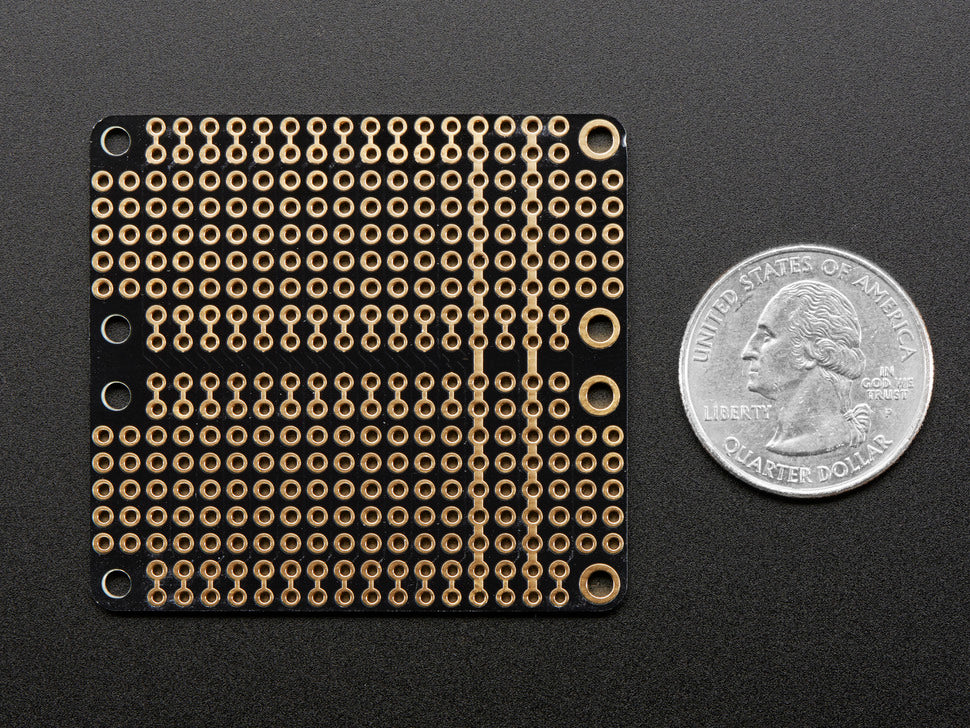

  • PCB Dimensions: 50.9mm x 47mm x 1.6mm / 2" x 1.85" x 0.06"
  • Weight: 6.7g
