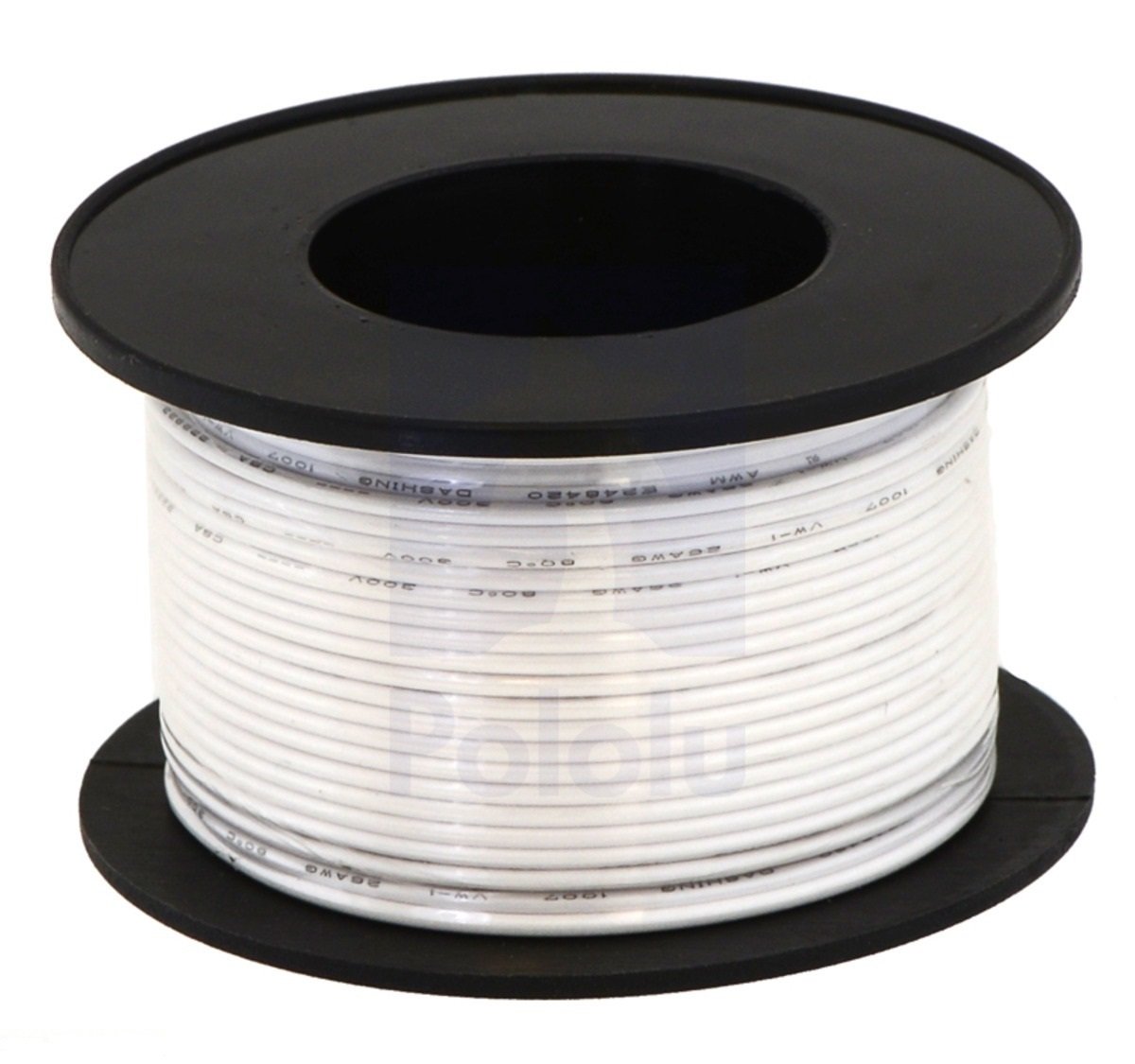

This is a spool with 50 feet of white 22 AWG stranded copper hook-up wire. It conforms to the UL1007 specification and is rated for up to 80°C and 300 VAC.

Stranded wire is more flexible than solid wire and is good for projects where you need the wire to be able to bend. The wire ships on small plastic spools in lengths that depend on the gauge (see the table below for more information). One side of the spool includes a tab with a slot that can be used for hanging.

You should have a good wire stripping and cutting tool handy if you are going to get a spool of wire like this. If you want to make your own cables, you can crimp connectors to the ends, such as our male and female crimp pins for 0.1″ housings (please make sure your crimping tool and crimp pins work with the gauge of wire you select).

The wires conform to the UL 1007 specification and are rated for up to 80°C and 300 VAC. The following table provides more details about the wire composition and dimensions:

Wire gauge
(AWG)
Strand
count
Strand diameter
(mm / mil)
Avg. Insulation thickness
(mm / mil)
Outer diameter
(mm / in)
Length per spool
(m / ft)
30 7 0.101 / 3.97 0.38 / 15 1.1 / 0.043 30 / 100
28 7 0.127 / 5.00 0.38 / 15 1.2 / 0.047 27 / 90
26 7 0.160 / 6.30 0.38 / 15 1.3 / 0.051 21 / 70
24 11 0.160 / 6.30 0.38 / 15 1.4 / 0.055 18 / 60
22 17 0.160 / 6.30 0.38 / 15 1.6 / 0.063 15 / 50
20 26 0.160 / 6.30 0.38 / 15 1.8 / 0.071 12 / 40
