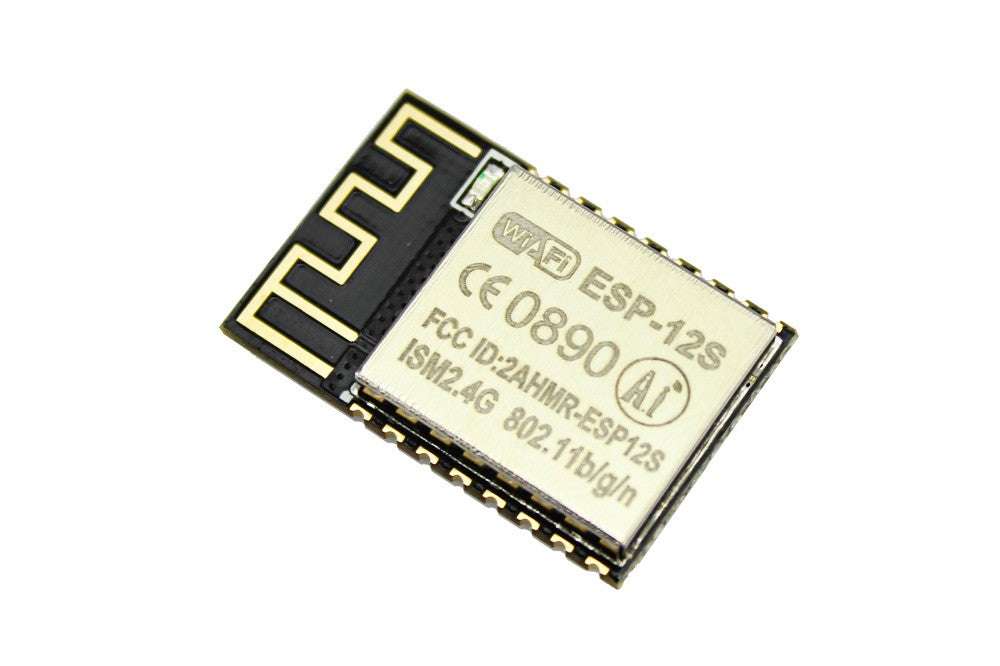

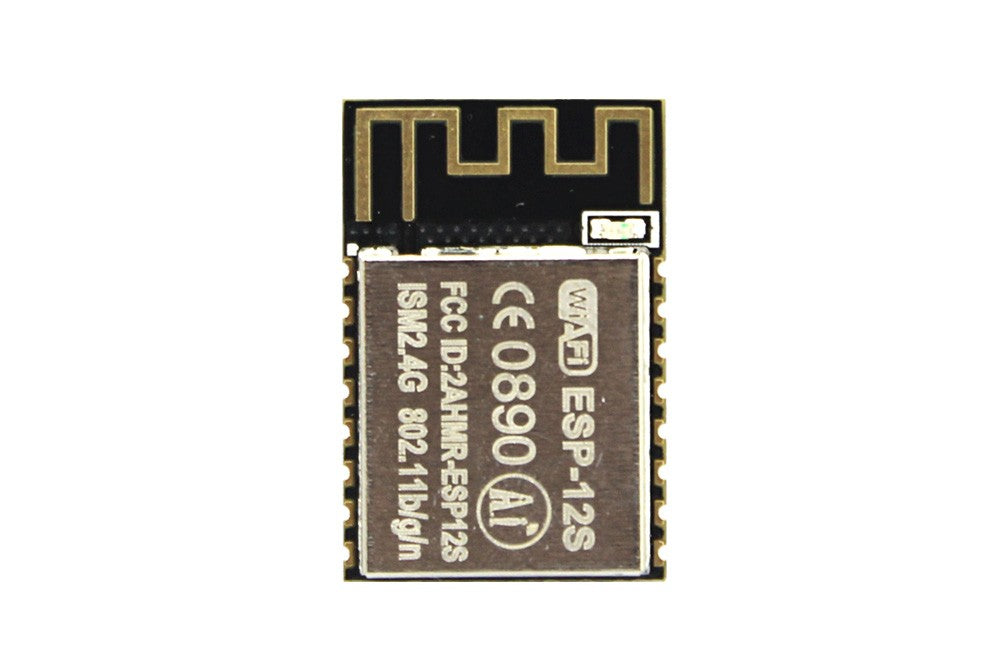

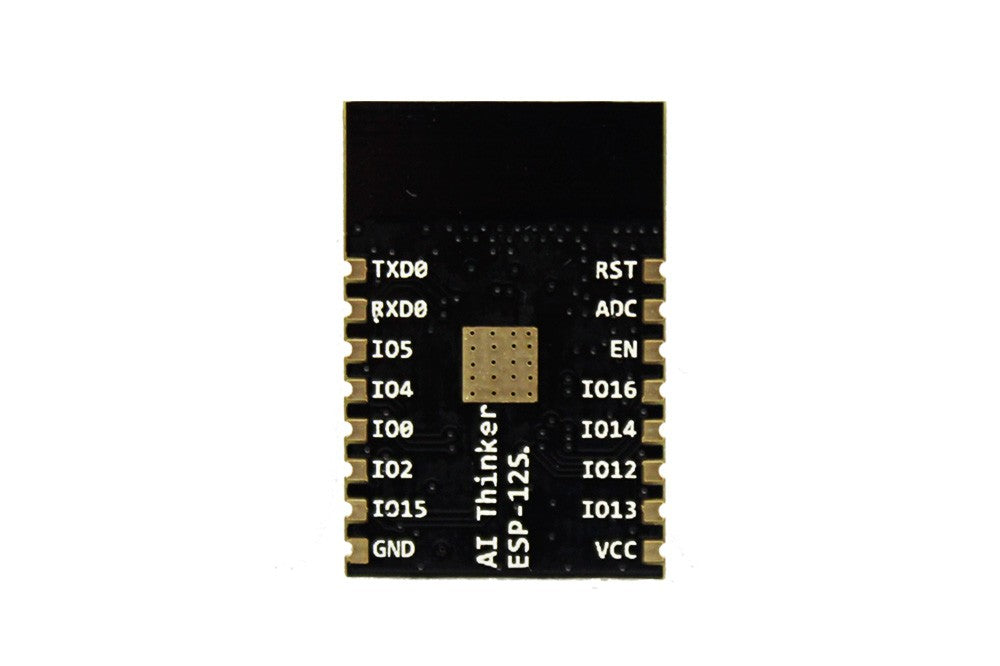

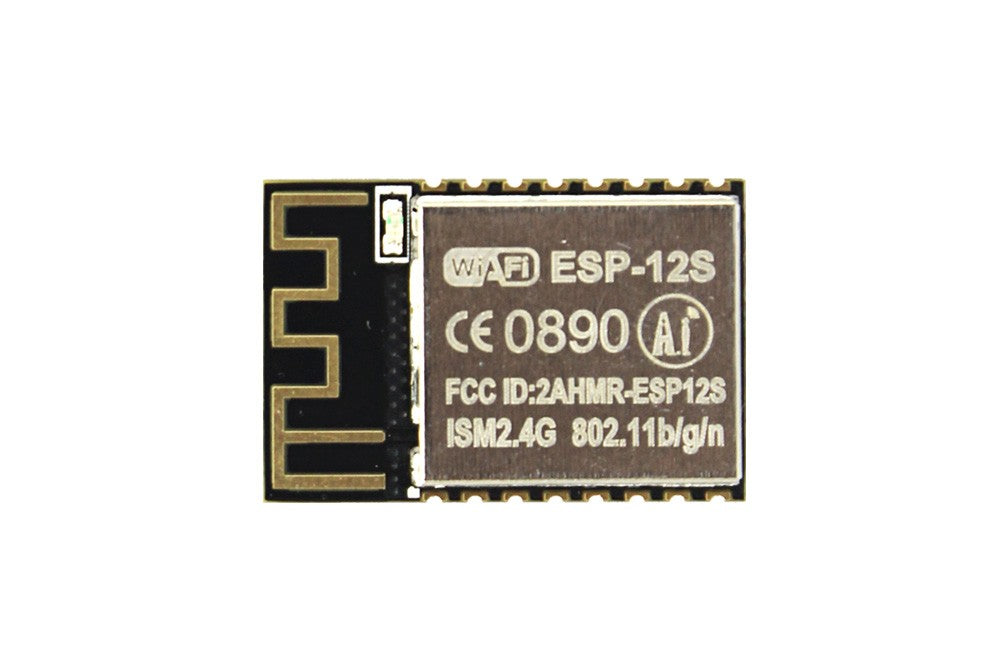

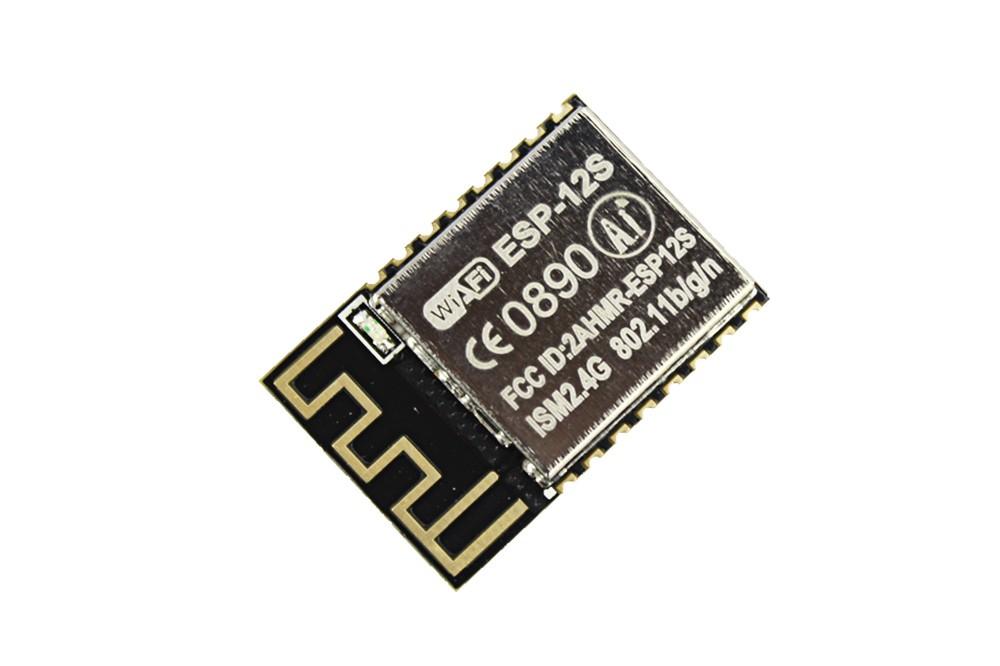

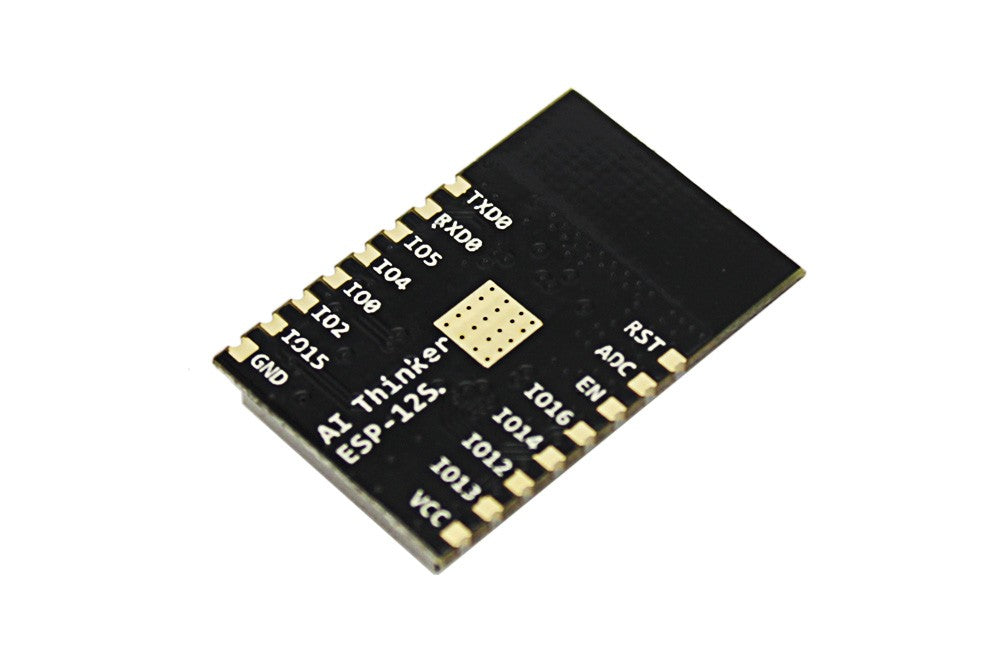

ESP8266 ESP-12S WiFi Module

This ESP-12S WiFi module has core processor ESP8266 in smaller sizes of the module encapsulates Tensilica L106 integrates industry-leading ultra low power 32-bit MCU micro, with the 16-bit short mode, clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, on-board antennas.
The module supports standard IEEE802.11 b/g/n agreement, complete TCP/IP protocol stack. Users can use the add modules to an existing device networking, or building a separate network controller.
ESP8266 is high integration wireless SOCs, designed for space and power constrained mobile platform designers. It provides unsurpassed ability to embed Wi-Fi capabilities within other systems, or to function as a standalone application, with the lowest cost, and minimal space requirement.

Features

  • 802.11 b/g/n
  • Integrated low power 32-bit MCU
  • Integrated 10-bit ADC
  • Integrated TCP/IP protocol stack
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLL, regulators, and power management units
  • Supports antenna diversity
  • Wi-Fi 2.4 GHz, support WPA/WPA2
  • Support STA/AP/STA+AP operation modes
  • Support Smart Link Function for both Android and iOS devices
  • SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
  • STBC, 1x1 MIMO, 2x1 MIMO
  • A-MPDU & A-MSDU aggregation and 0.4s guard interval
  • Deep sleep power <10uA, Power down leakage current < 5uA
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3)
  • +20dBm output power in 802.11b mode

Specifications

  • WiFi Protocles:802.11 b/g/n
  • Frequency Range:2.4GHz-2.5GHz (2400M-2483.5M)
  • Peripheral Bus:UART/HSPI/I2C/I2S/Ir Remote Contorl;GPIO/PWM
  • Operating Voltage :3.3V
  • Operating Current: Average value: 80mA
  • Operating Temperature Range: -40°~125°
  • Ambient Temperature Range: Normal temperature
  • Package Size: 18mm*20mm*3mm
  • External Interface: N/A`
  • Wi-Fi mode: station/softAP/SoftAP+station
  • Security: WPA/WPA2
  • Encryption: WEP/TKIP/AES
  • Firmware Upgrade: UART Download / OTA (via network) / download and write firmware via host
  • Support software Development: Supports Cloud Server Development / SDK for custom firmware development
  • Network Protocols: IPv4, TCP/UDP/HTTP/FTP
  • User Configuration: AT Instruction Set, Cloud Server, Android/iOS APP
