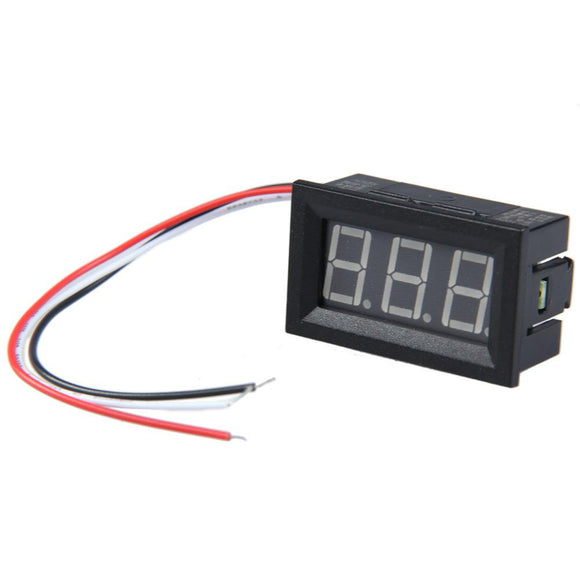

0.56" DC 0-100V Panel Meter Digital Voltmeter (Red)
  • Display: Three digit 0.56" LED
  • Refresh Speed: Approx.200mS/time
  • Highest input: DC 100V (higher than 100 has the risk of burn up)
  • Minimum input: DC 0V (below than 0V, measurement is inaccurate or does not show)
  • This DC Voltage Meter with DC 0-100V range. It is easy to read, install and use
  • And need external power supply and supports Reverse polarity protection.
  • Measure Voltage: DC 0-100V three-wire access
  • Minimum Resolution: 0.01V (<10V)/0.1V (>10V)
  • Resolution: 1%±1digit
  • Working Temperature:-10℃~65℃
  • Power Supply: DC3-30V
  • Size: Approx. 4.80*2.90*1.90cm (L*W*H)
  • Current Consumption :< 20mA
