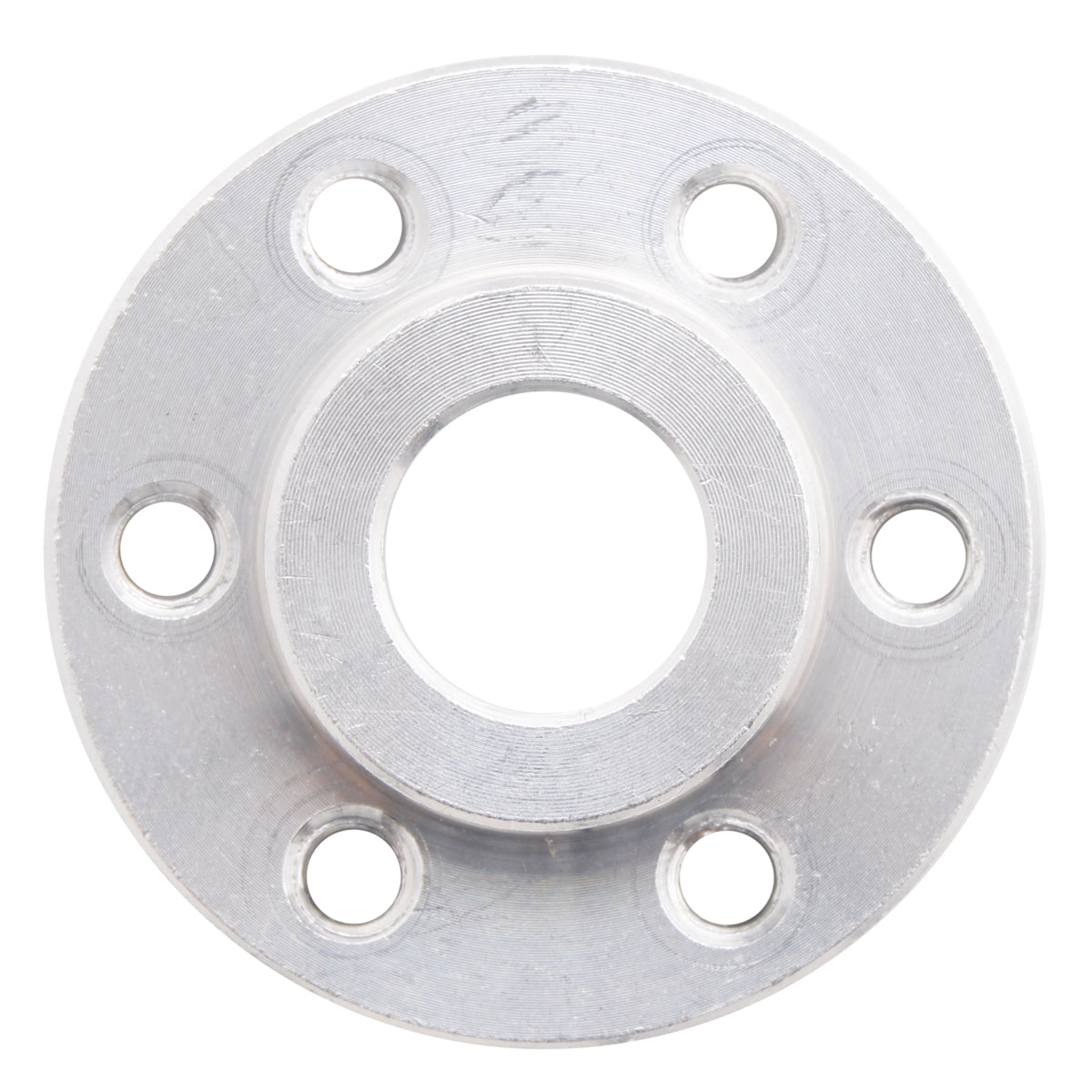

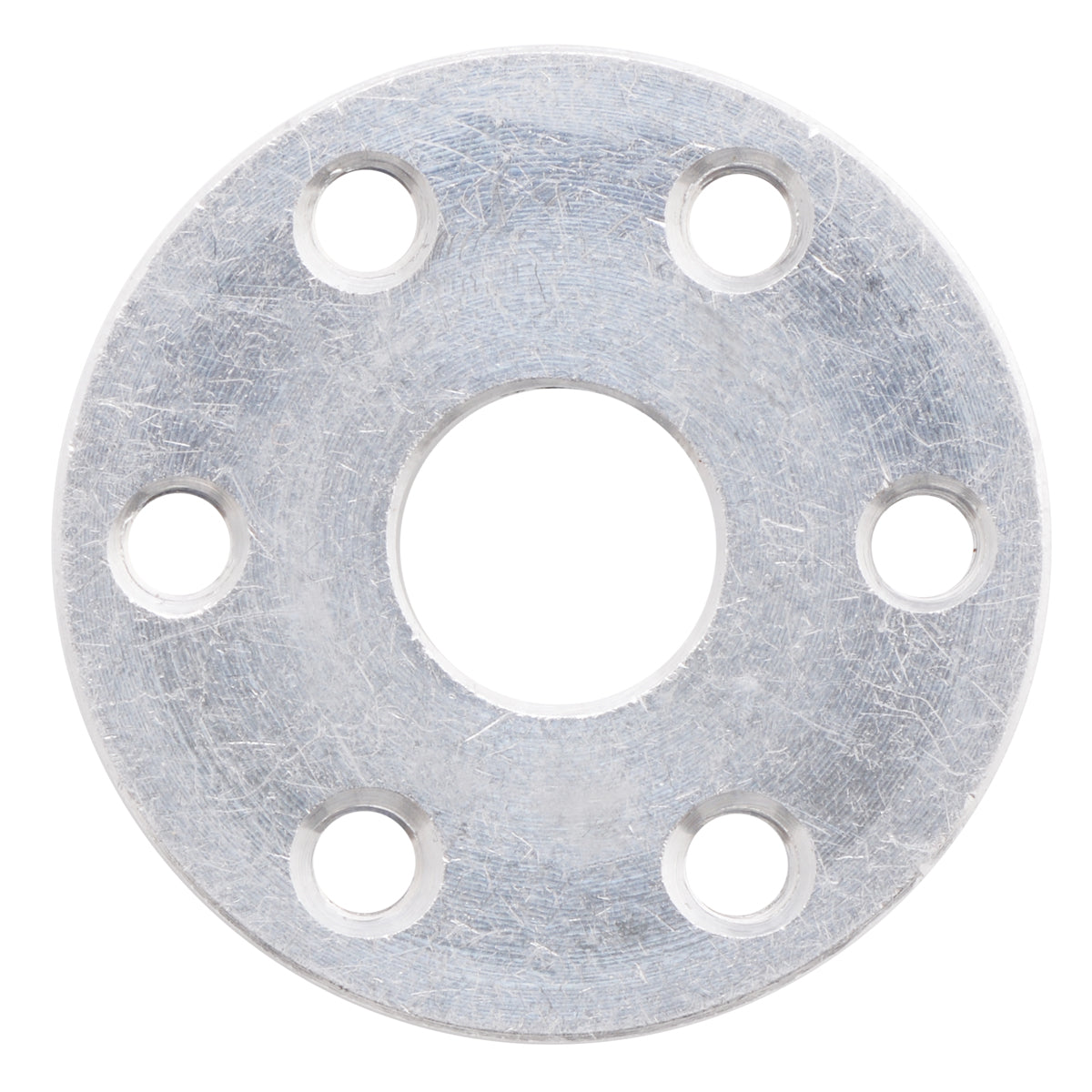

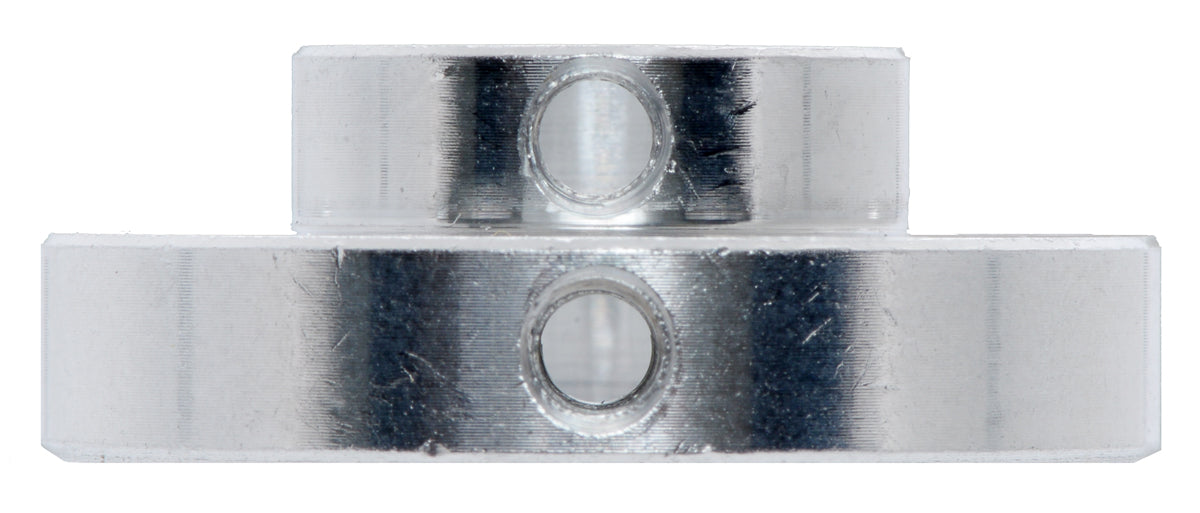

These universal aluminum mounting hubs allow you to mount custom wheels and mechanisms to 8 mm diameter motor shafts. The set includes two hubs, four M3 set screws for securing the hubs to motor shafts, and one 1.5 mm Allen wrench for use with the set screws. Each hub has six threaded mounting holes for M3 screws (not included).

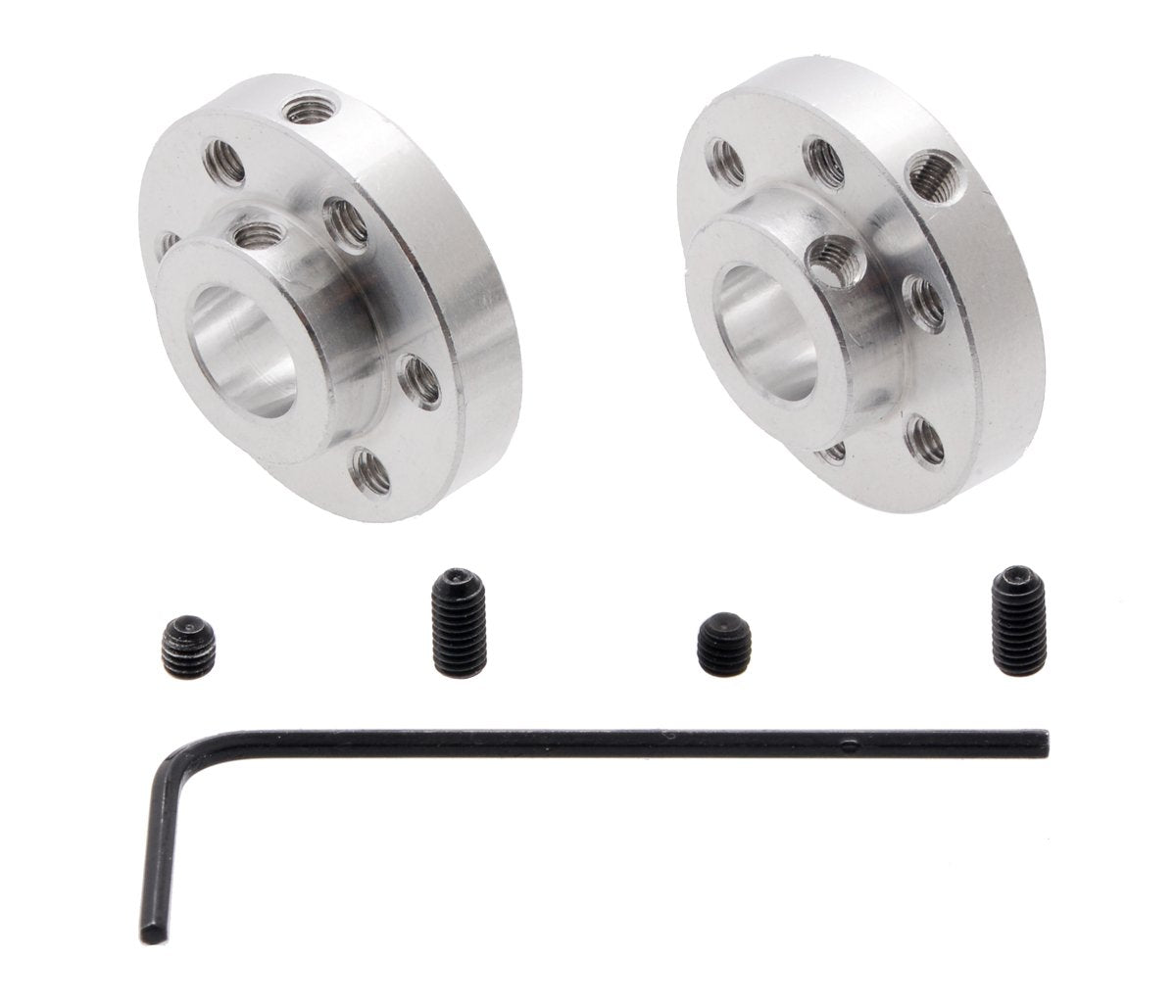

These universal mounting hubs are designed to work with most 8 mm diameter shafts, including round shafts and “D” shafts. Each of the two included hubs has six mounting holes for M3 screws (not included), letting you mount custom wheels or mechanisms to your motors. The four included M3 hex set screws (two for each hub) allow secure coupling of shaft to hub, and a 1.5 mm hex wrench is included for use with the set screws. A dimension diagram of the hub is available under the resources tab.

Dimensions

Size:

25.4 mm diameter × 9.2 mm thick

Weight:

6.7 g1

Shaft diameter:

8 mm

Mounting hole size:

M32
