5 pieces strip light mounting brackets fixing clips, one-side fixing, with 5 pieces screws (for 10 mm wide waterproof strip lights)
Easy to use:
Ultra-thin feature makes it easy to fix by one screw for each clip, take down the LED strip light from the other end freely when replace or maintain it.
Strip light mounting brackets for 3528/ 5050/ 5630/ 3014 SMD LED waterproof strip light within 10 mm wide. Suggest using 3 - 6 pieces for 1 meter strip lights.
- Fixing clip color: transparent

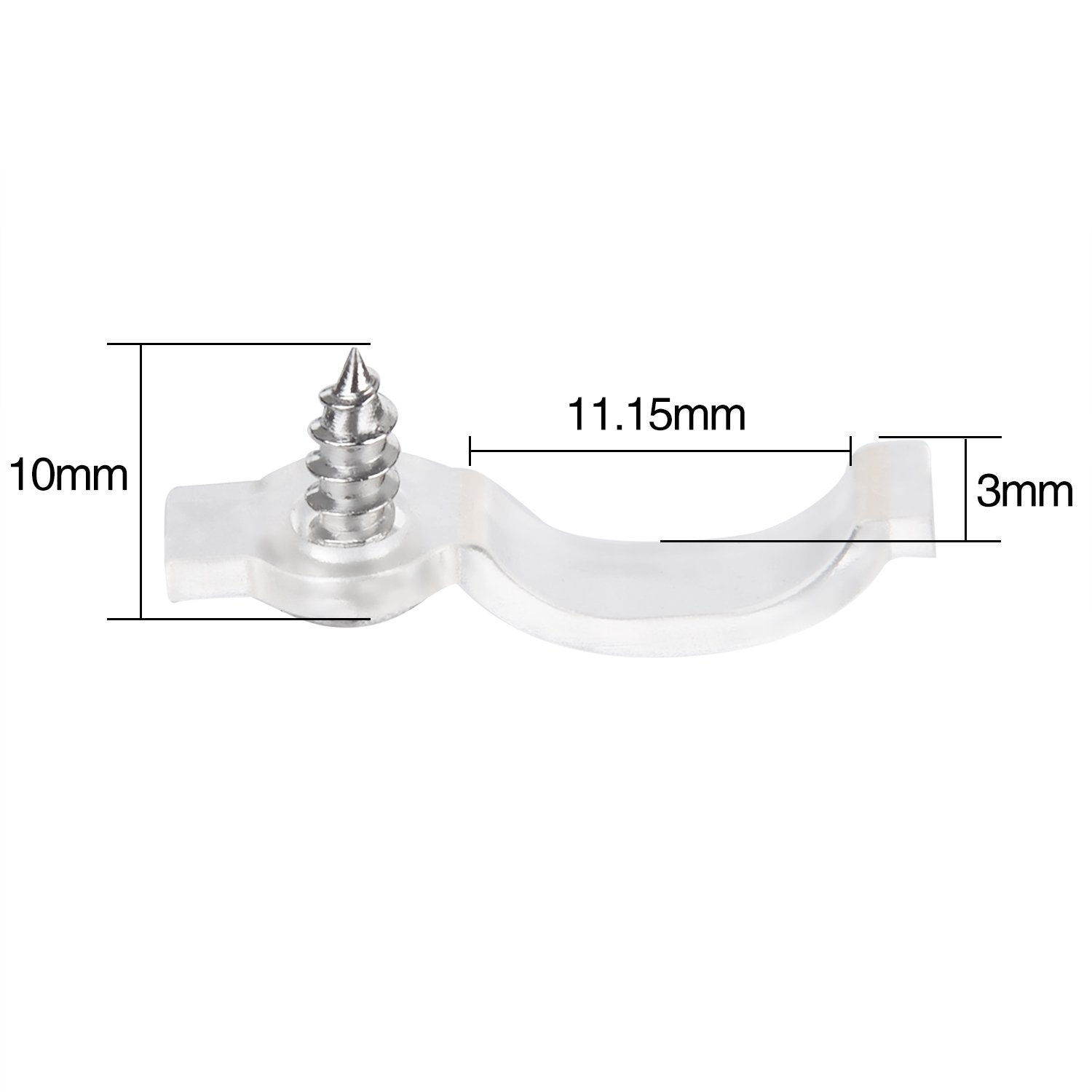

- Hollow distance: 11.15 mm
- Hollow height (maximum): 3 mm
- Fixing clips material: plastic nylon
- Screws material: stainless steel
- Screws size: 3 x 10 mm
Use and installation method:
1. When you receive the LED strip clips, remember to check out whether the clips’ sizes are compatible with your LED strip light or not.
2. Shut down the power before installing the clips.
3. Install the LED strip light: first, rip off the separator paper on the adhesive tape behind the strip light, then choose a proper place for installing the strip light. Place put 1 clip between 2 adjacent lamp beads, suggest using 3 - 6 pieces clips within 1 meter long strip lights.
4. When finishing the steps above, aim the screw at the hole in the middle of the clip and rotate the screw clockwise. Remember to make it clear that the clips are fastened (please use suited screw tools).
5. Check every step out.
6. Installation is completed.

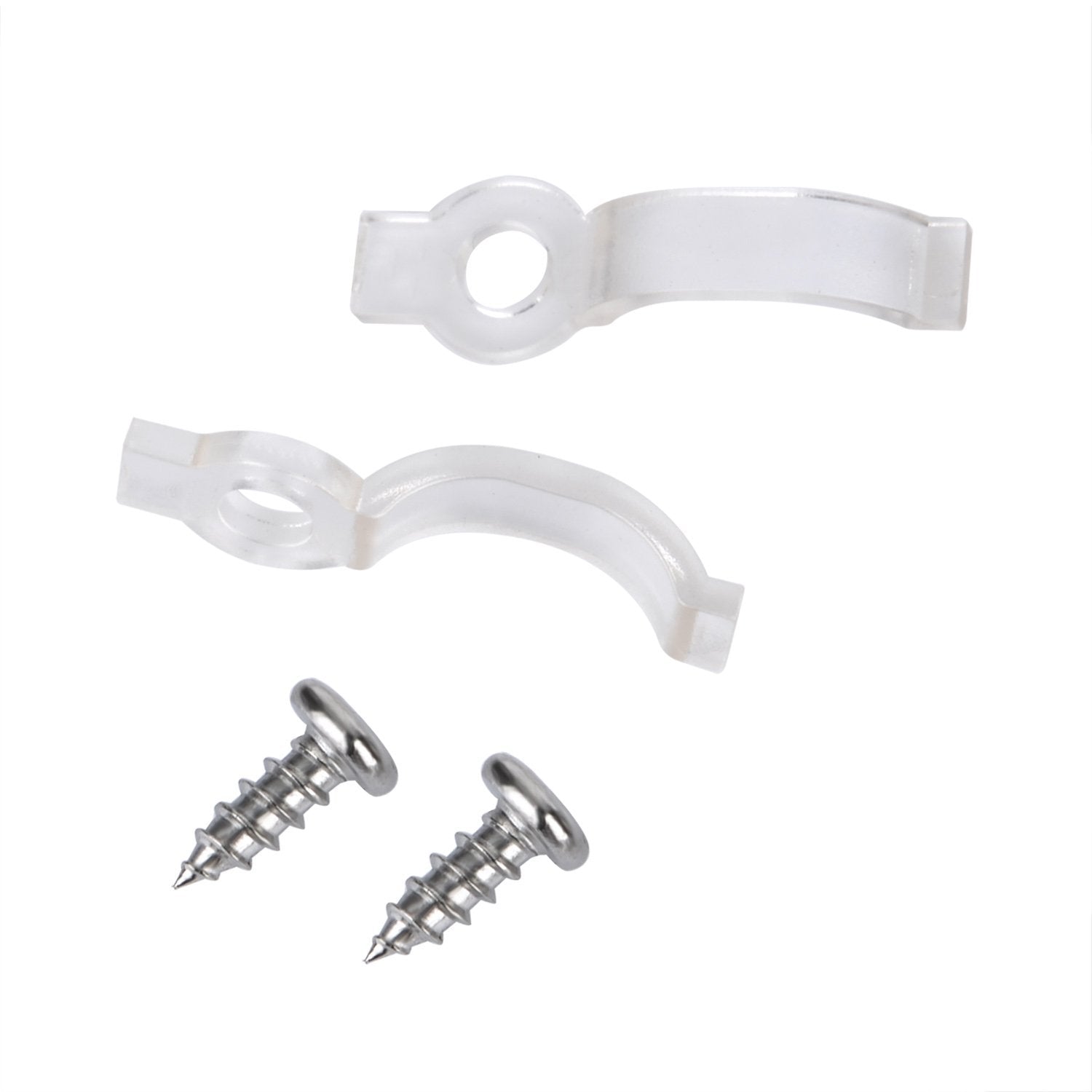

5 x Bracket clip
5 x Screw
