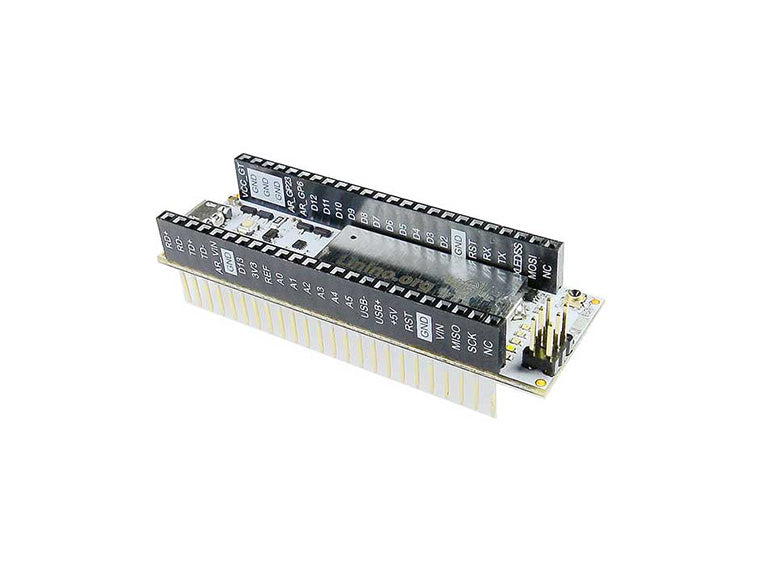

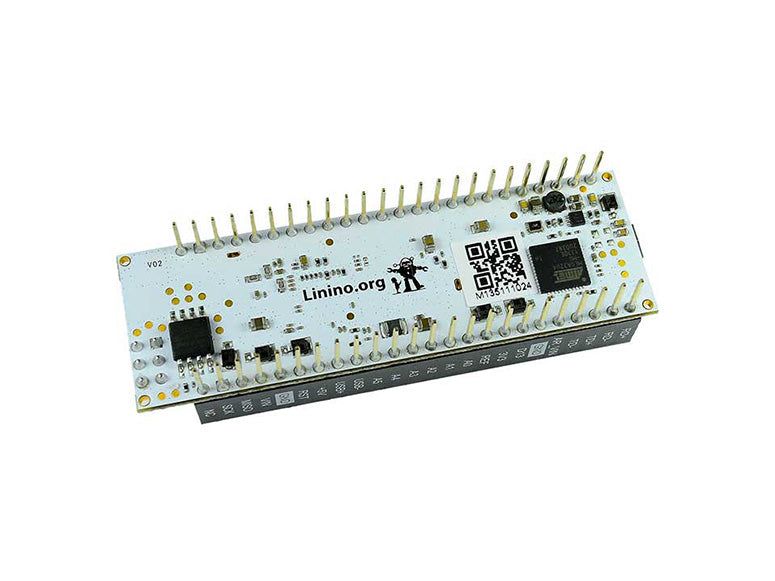

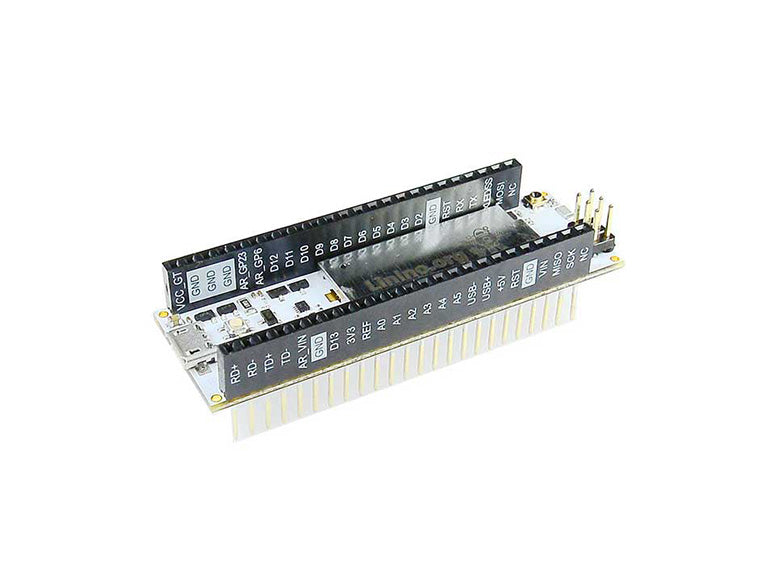

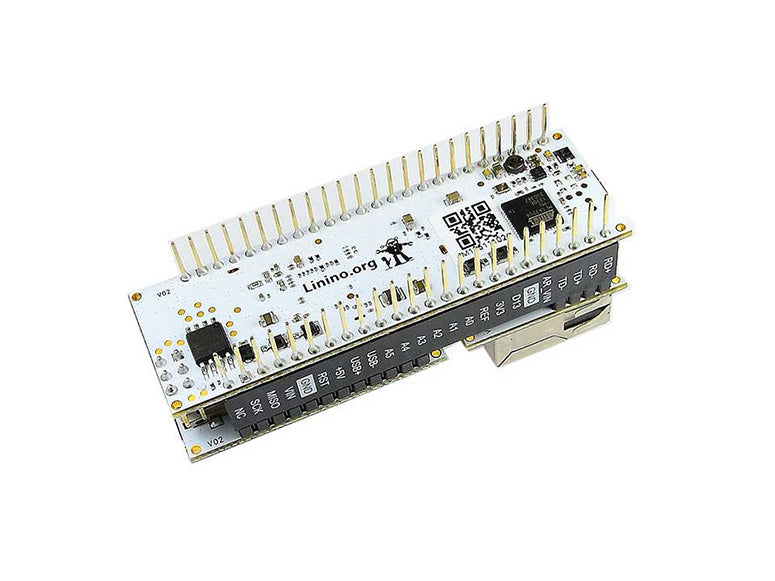

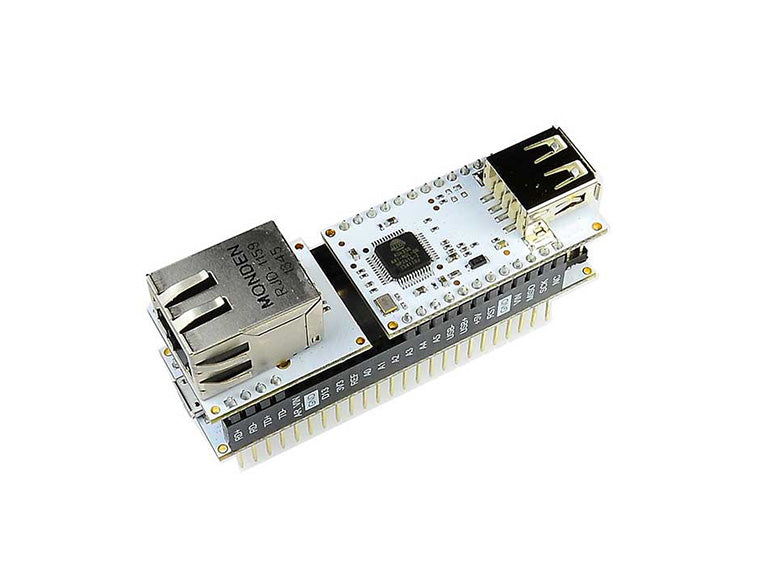

The Linino ™ ONE is a MIPS board based on the Atheros AR9331 and the ATmega32u4 (datasheet). The Atheros processor supports Linino, a Linux distribution based on OpenWRT. The board has built-in WiFi support, 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, 2 reset buttons and 1 user button.

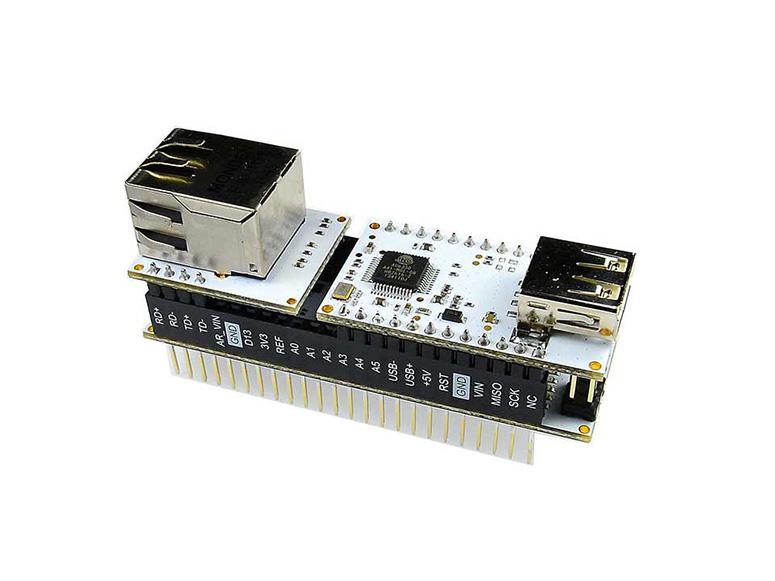

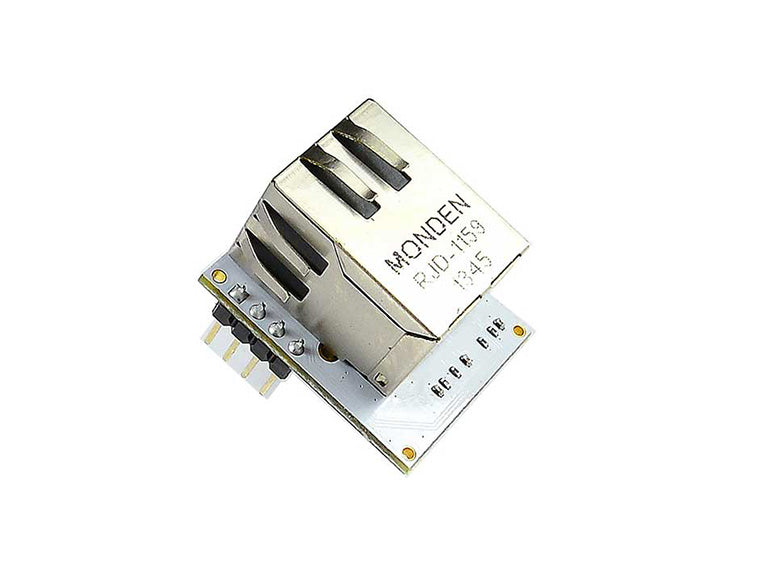

Designed to meet IEEE 802.3 Fast Ethernet switch with auto-crossover, auto-polarity, and auto-negotiation.
10/100 Mbps Fast Ethernet port basic switch feature including port mirroring, broadcast storm support, flow control in full-duplex, and back pressure in half duplex.
Operating temperature range: 0°C to +60°C .

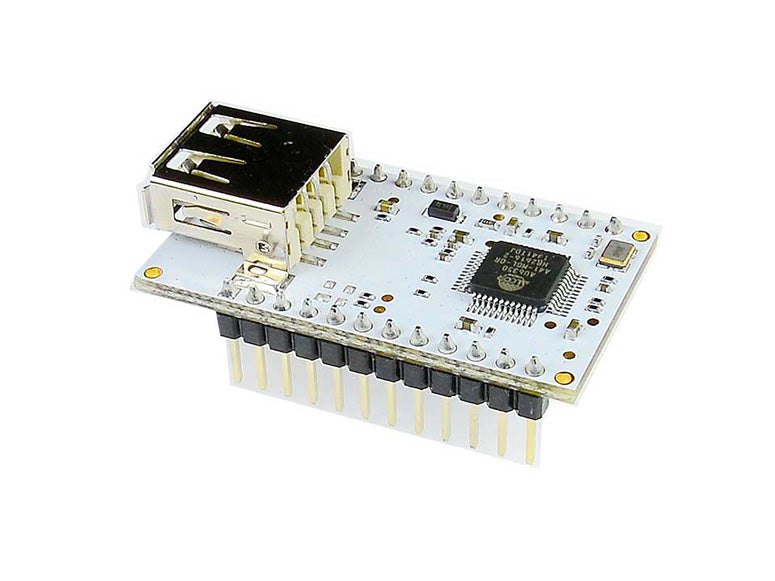

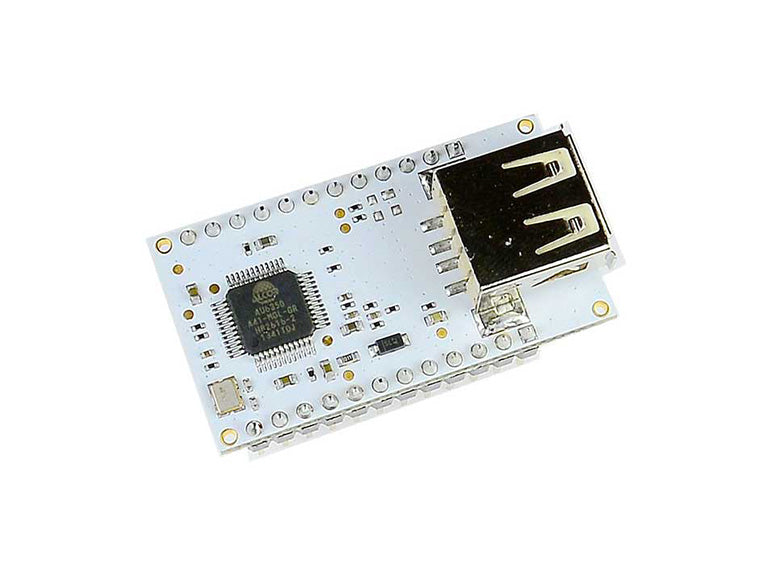

A type USB connector.
Fully compliant with USB Hub specification version 2.0 and is also backward compatible with
USB Hub specification 1.1.
Supports automatic switching between bus-power and self-power modes built-in USB 2.0 transceiver.

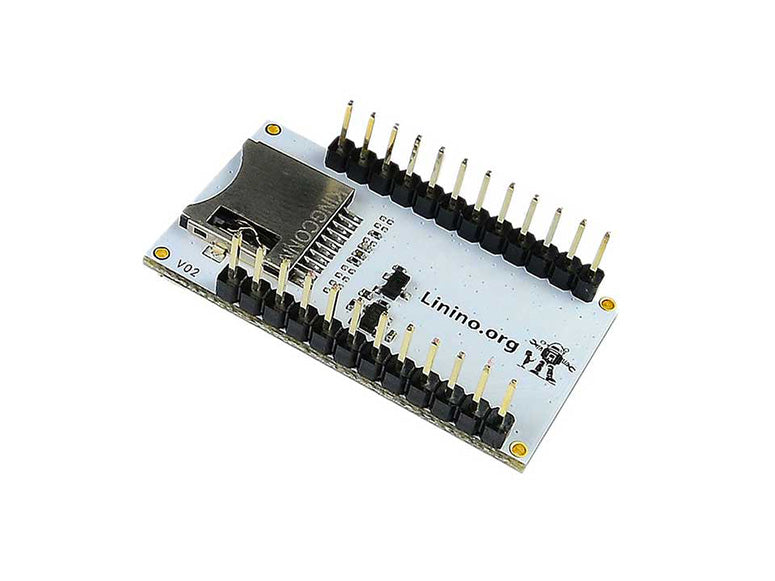

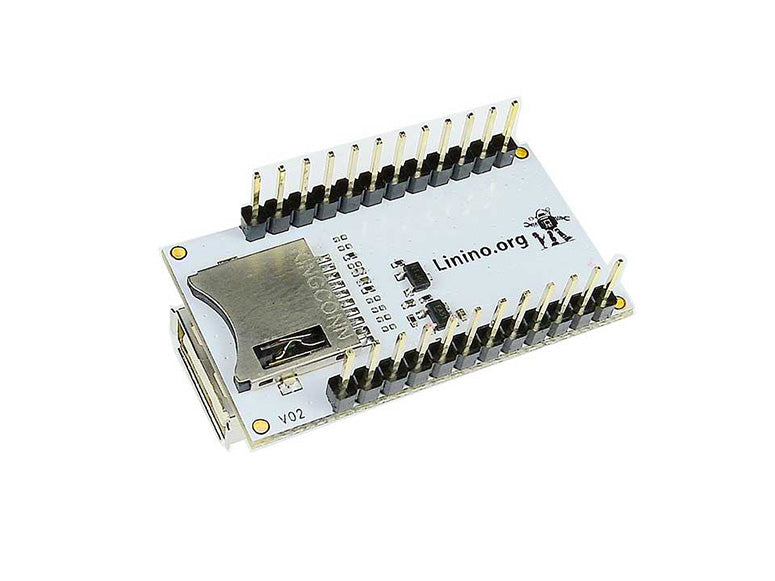

uSD connector with card reader.
Supports multiple sectors transfer optimize performance.
Supports port-to-slot and read/write operation.
Operating temperature range: 0°C to +60°C
