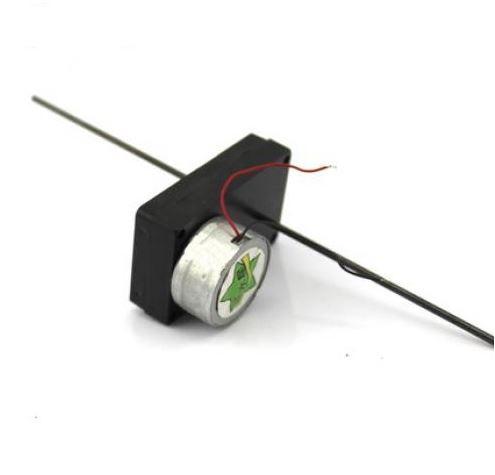

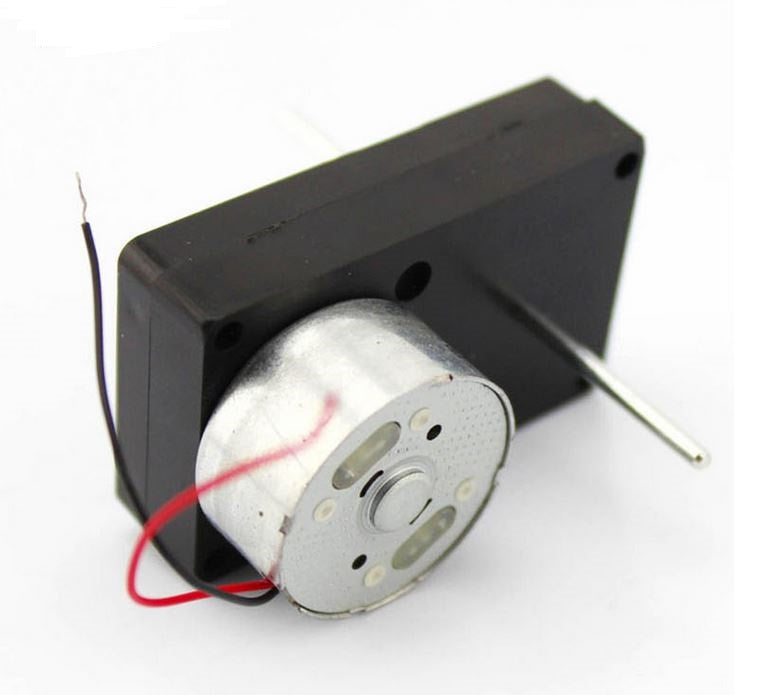

3048-300 Gearmotor (2mm Shaft)

3048-300 Gear Motor (black), this product is a based on the 300 dc motor reducer, products are compact, the double shaft, the diameter of axle is 2 mm. The motor power supply not only can use the battery box, can also use solar panel power supply.

  • Voltage range: 1-5 VDC
  • Product parameters: the following parameters are for reference only

3V 0.03A 330rpm Stall current 0.24A

6v 0.04A 540rpm Stall current 0.41A

  • Axial length: 150mm
  • Shell size: 48x30x12mm
  • Overall size: 48x30x25mm
  • Fixed bore diameter: 2.5mm
  • Product material: black ABS plastic
