PHPoC Black

PHPoC Black (P4S-341) is a wired LAN programmable board embedded with a PHPoC interpreter. It supports various interfaces to connect with sensors and equipment. With PHPoC Black, you can monitor and control your equipment from a remote site via web browser. Also, it is designed to be stackable for you to implement additional functions with PHPoC expansion boards.

  • PHPoC (PHP on Chip) interpreter embedded
  • Uploading and debugging codes via USB
  • 10Base-T/100Base-TX Ethernet (RJ45)
  • 10 x digital input/output port
  • 14 x sharing port (Digital Input/Output, SPI, I2C, UART)
  • 6 x analogue input port
  • HTTP/SSH/Websocket server
  • Web page customization available (accessible with smart devices)

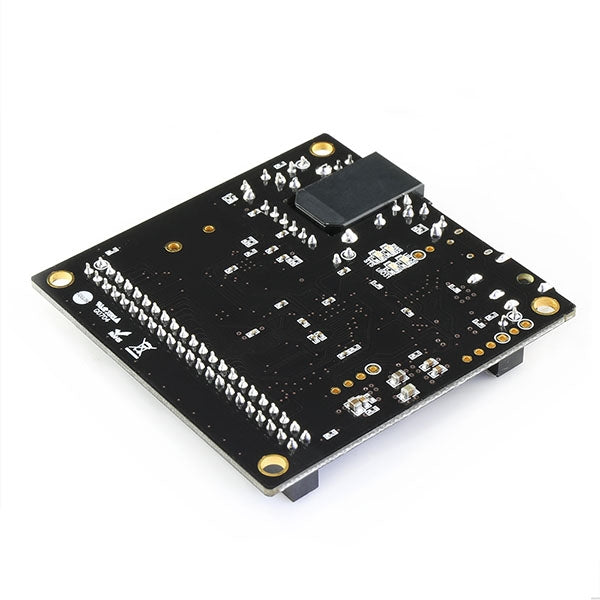

Hardware

P4S-341

Specifications

Processor

Core

Cortex-M4 168MHz

Flash

System-512K Bytes, User-512K Bytes

SRAM

192K Bytes


Power Input

Input Voltage

5V±10%

Input Port

DC jack or USB device port

Max Current

DC jack : 1.5A, USB device port : 500mA


Network Interface

Ethernet

10 Base-T/100Base-TX Ethernet


USB Interface

USB Host

USB Host interface for expansion board

USB Device

PC interface for programming


DIO

Type

3.3V CMOS level digital I/O

Ports

Maximum 22 ports

Mode

Input/Output, push-pull/open-drain, pull-up/pull-down


Communication

UART

2 ports (RXD, RXD, RTS, CTS) with hardware flow control

SPI

1 port

I2C

1 port (100Kbps or 400Kbps)


ADC

Resolution

12bits

Channels

6


Hardware Timer/Counter

Mode

PWM output, Pulse output, Toggle output, Capture

Unit

mili-seconds or micro-seconds

Channels

4


RTC

Battery

40mAh lithium coin

Peripherals

Realtime Clock, 4KB Backup SRAM


LED

System LED

Power, Status, 3.3V, PWR5

User LED

uio0.30, uio0.31


Power Output

3.3V Max Current

1A

PWR5 + 3.3V Max Current

1.5A


Dimension

Dimension

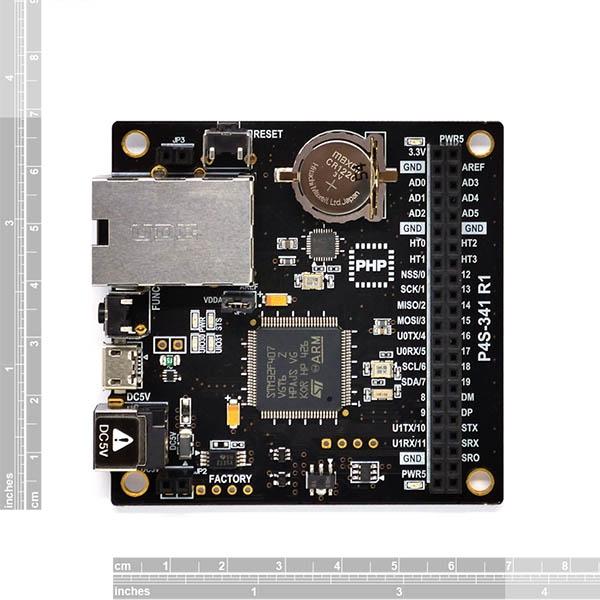

63.8mm X 66.5mm X 13mm

Weight

29.8g
