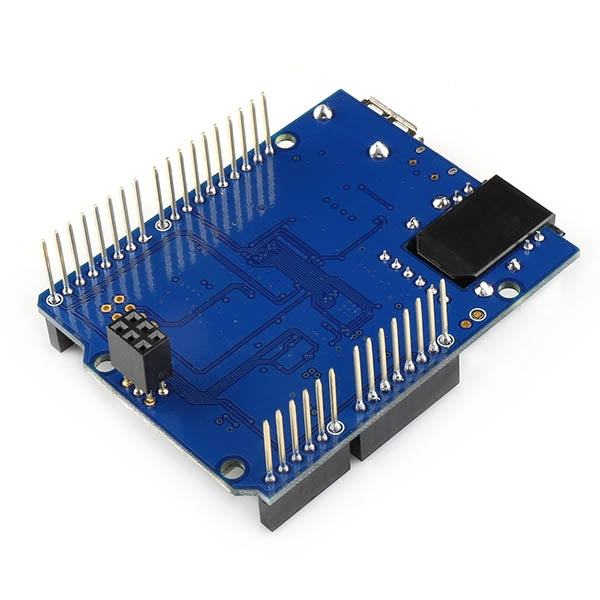

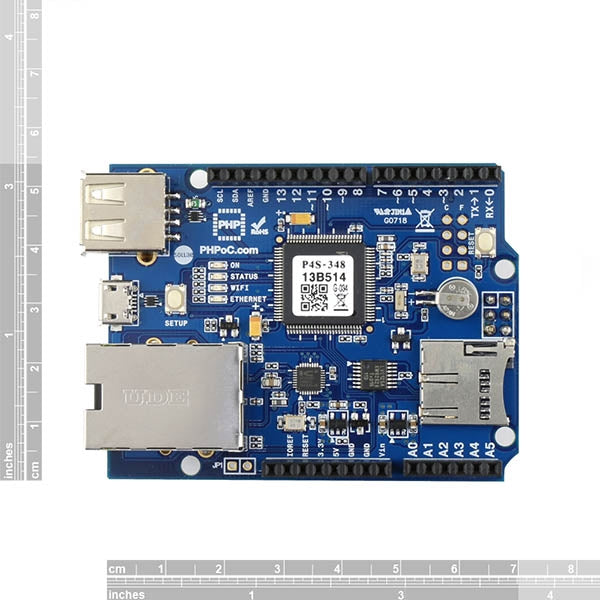

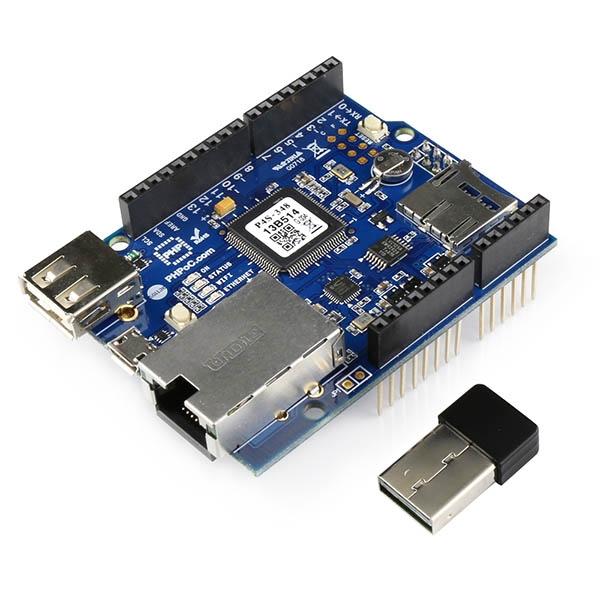

PHPoC Shield for Arduino

PHPoC Shield for Arduino (P4S-348) is compatible with Arduino Uno or Mega products. PHPoC shield is equipped with both wired and wireless LAN functions, providing various network functions according to your environment, bring a Arduino to Internet, spreading Arduino's voice to unlimited distance. In addition to the network function, PHPoC shield supports a wide range of API. In particular, a built-in web application provides easy web applications control and network setup. Also, you can monitor the output of Arduino serial monitor via Web from a remote location in real time.

  • Selectable networking modes
  • Web-controllable application
  • "Web Serial Monitor"
  • E-mail library
  • RTC (Real-Time Clock)
  • Various communication protocols (TELNET, SSL, SSH, and WebSocket)
  • Supports IPv6

Hardware

P4S-348

Specifications

Software

Classes

PhpocClient, PhpocServer, PhpocEmail, PhpocDateTime

Protocols

IPv4/IPv6 dual stack, ICMP/TCP/UDP
DNS, Telnet, SMTP, HTTP, Web Socket

Securities

SSL Server/Client, SSH Server

Web Applications

WebSerialMonitor, WebRemoteControl(push/slide)

Setup

Web


Processor

Core

Cortex-M4 168MHz


Power Input

Input Voltage

5V ±10% (from Arduino Board)

Power Consumption

about 120mA (100Base-TX)
about 180mA (Wireless LAN, It could be changed according to USB dongle)


Network Interface

Ethernet

10/100Base-T

Wireless LAN

IEEE802.11b/g with a USB dongle
Infrastructure, Soft AP, Ad-hoc
WPA-PSK, WPA-Enterprise

Host Interface

SPI - ICSP, SS: 10(Arduino Uno), 53(Arduino Mega)


microSD

User Interface

SPI - ICSP, SS: 4

Card Type

Push-Pull Type


Buttons

RESET

Resetting PHPoC Shield

SETUP

Configuration and Factory Reset


RTC

Battery

Rechargeable Battery (5.8mAh)


LED

System LED

ON(Red), STATUS(Green), WIFI(Green), ETHERNET(Green)
