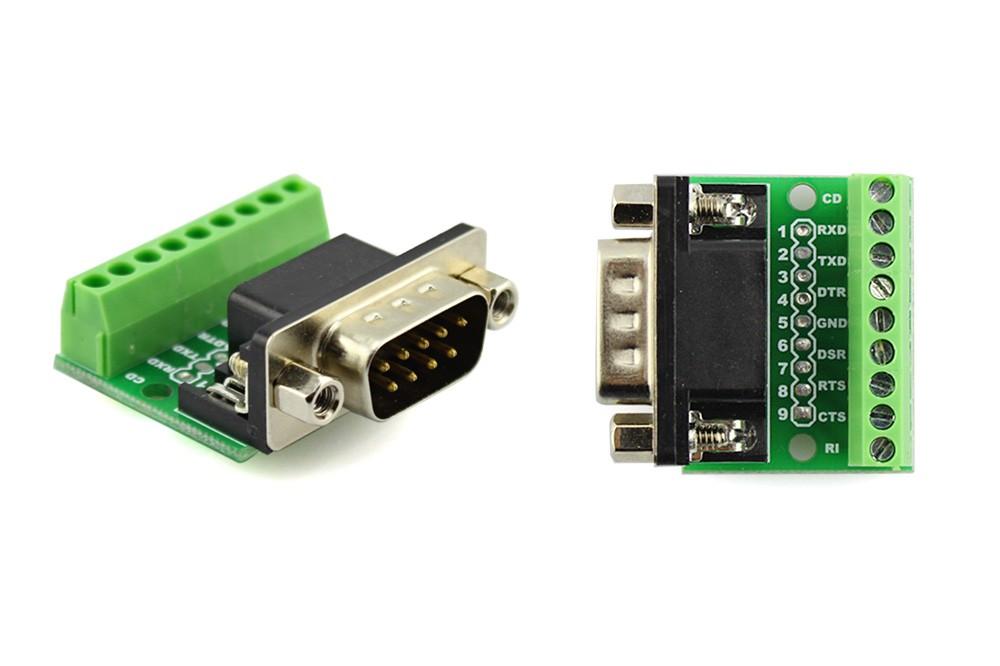

This is a DB9 female/male adapter plate signal module, RS232 Serial DB9 9-pin to 9 Position Screw Terminal Block. Connector DB9 adapter terminals to facilitate commissioning equipment of project. The wire range of the 9 Positions Screw Terminal Block is 22-14AWG. All-copper DB9 Socket, anti-oxidation, contact better. Terminal pitch is 3.96mm, screw hole diameter is 2mm, need to use a slotted screwdriver width 2mm be removable.

Features

  • High quality All-copper DB9 socket, high-quality terminals
  • Adapter used for communication debug
  • Material: Metal/Plastic

Specifications

  • Terminal pitch: 3.96mm
  • Screw hole diameter: 2mm
  • Size: Approx.3.5cm(L) * 3cm(W) * 1cm(H)
  • Weight: 15g

Package list

  • DB9 SolderlessTerminal Male x 1
