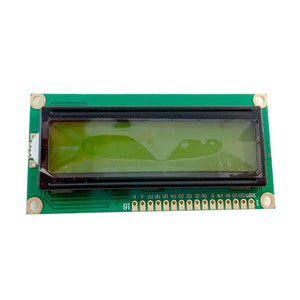

![Basic 16x2 Character LCD (Yellow on Green 5V)](http://www.canadarobotix.com/cdn/shop/products/2074_20_1_{width}x.jpg?v=1571749895)
This is a basic 16 character by 2 line display. Black text on Green background. Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD screen. Using the very common Sumsang KS0066 parallel interface chipset which is equivalent of Hitachi HD44780. Includes LED backlight.
![](http://www.elecrow.com/media/wysiwyg/LCD1602-Module5.jpg)
![](http://www.elecrow.com/media/wysiwyg/LCD1602-Module6.jpg)
![](http://www.elecrow.com/media/wysiwyg/LCD1602-Module7.jpg)
![](http://www.elecrow.com/media/wysiwyg/LCD1602-Module8.jpg)
![](http://www.elecrow.com/images/Products/lcd_schem.png)
Specification
- LCD Display Mode: STN, Positive, Transflective
- Display Color: Yellow&Green
- Viewing Angle: 6H
- Driving Method : 1/16 duty, 1/5 bias
- Back Light : Yellow-Green LED backlight

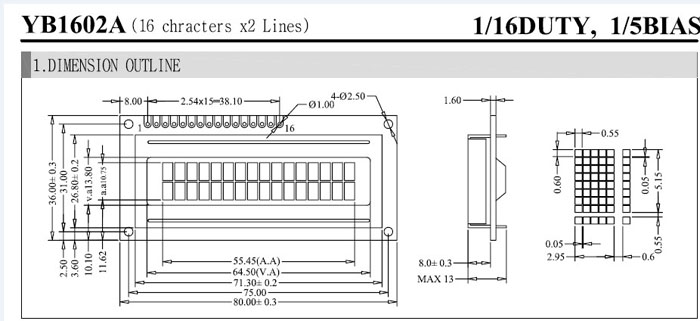

- Outline Dimension: 80*36*15.8 MAX
