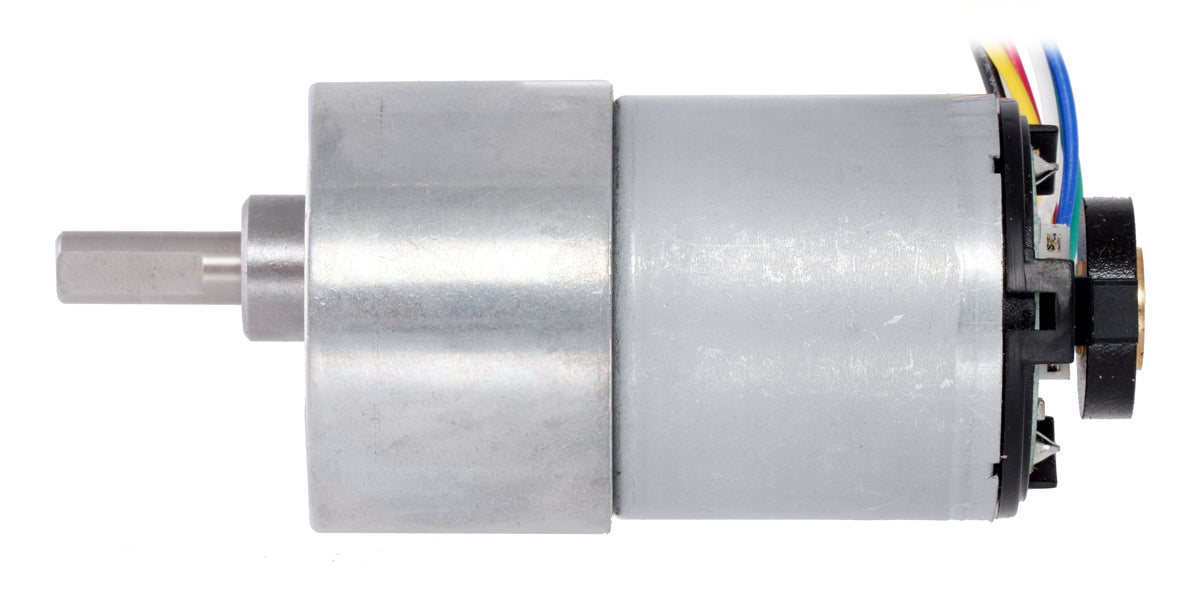

50:1 Metal Gearmotor 37Dx70L mm with 64 CPR Encoder

This gearmotor is a powerful 12V brushed DC motor with a 50:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 64 counts per revolution of the motor shaft, which corresponds to 3200 counts per revolution of the gearbox’s output shaft. These units have a 0.61"-long, 6 mm-diameter D-shaped output shaft.

Key specs at 12 V: 200 RPM and 300 mA free-run, 170 oz-in (12 kg-cm) and 5 A stall.

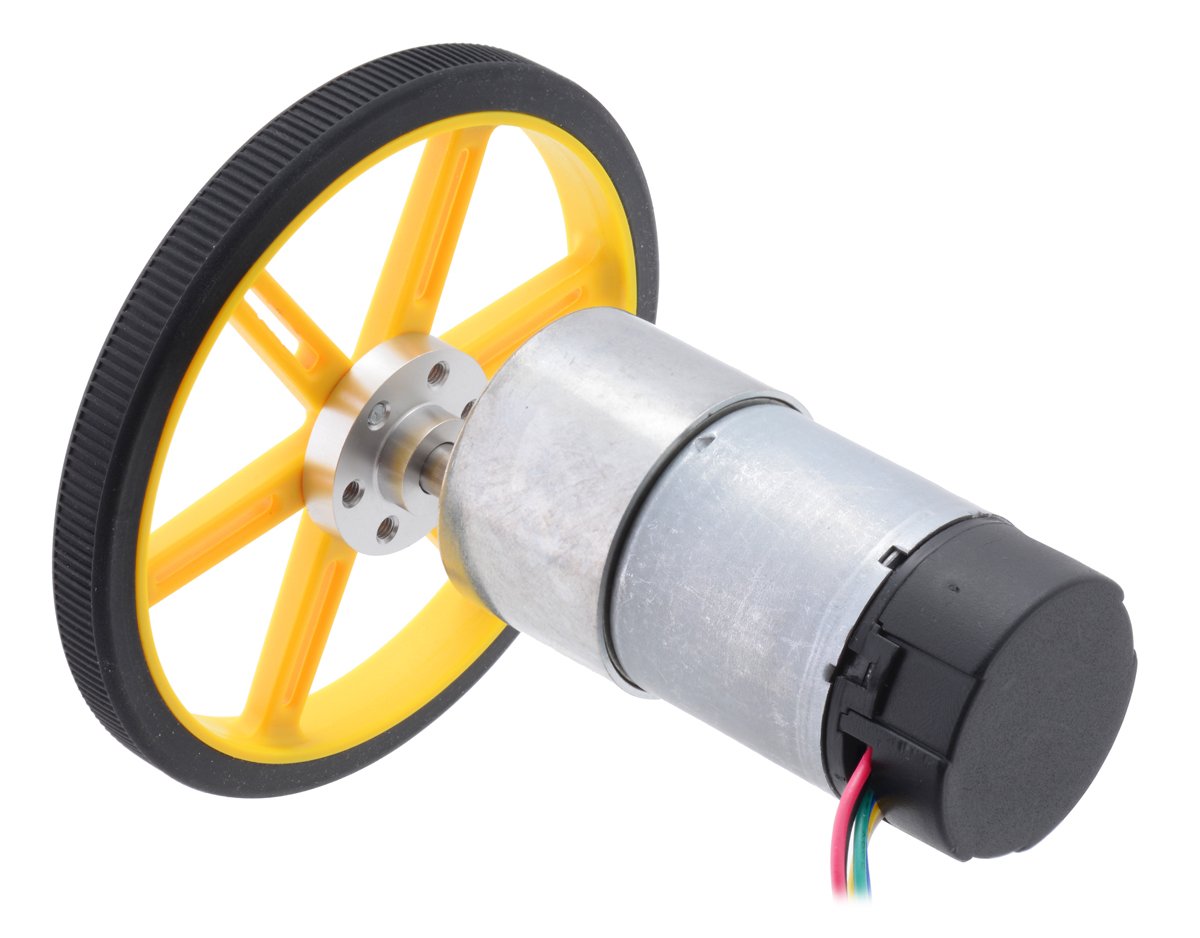

NOTE: Wheel and hub not included.
