Voltage to Dot/Bar Display Driver 18-DIP (LM3914)

This item is archived from our catalog and no longer for sale. This page is available as a reference only.

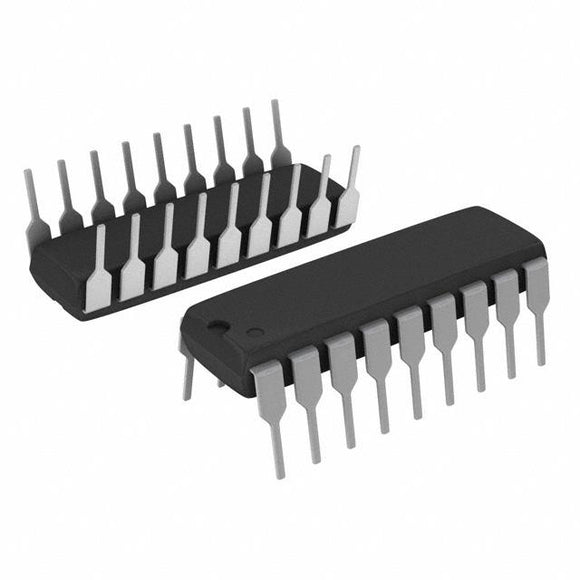

Voltage to Dot/Bar Display Driver 18-DIP (LM3914)

The LM3914 is a monolithic integrated circuit that senses analog voltage levels and drives 10 LEDs, providing a linear analog display. A single pin changes the display from a moving dot to a bar graph. Current drive to the LEDs is regulated and programmable, eliminating the need for resistors. This feature is one that allows operation of the whole system from less than 3V.
