LEDs - those blinky things. A must have for power indication, pin status, opto-electronic sensors, and fun blinky displays.

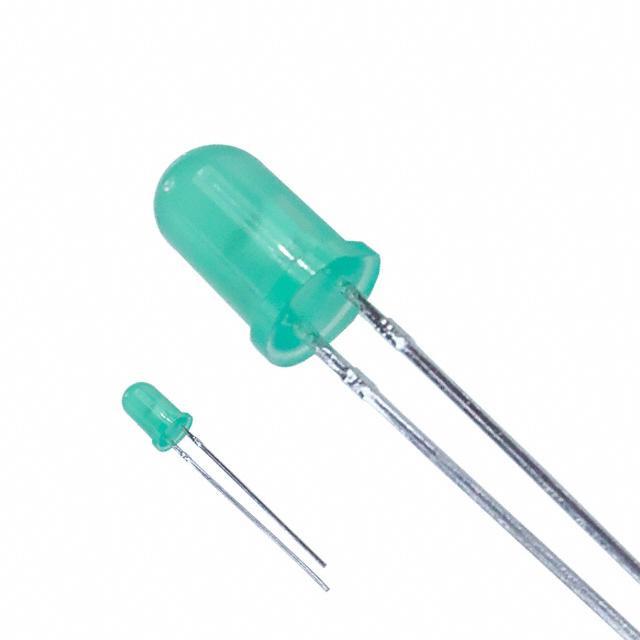

This is a very basic 5mm LED with a green lens. It has a typical forward voltage of 2.0V and a rated forward current of 20mA.

Features:

  • 1.8-2.2VDC forward drop
  • Max current: 30mA
  • Suggested using current: 20mA
  • Wavelenght: 571nm
  • Luminous Intensity: 150mcd

Package:

  • (25x) 5mm green diffused LED

Datasheet: LTL2R3KG
