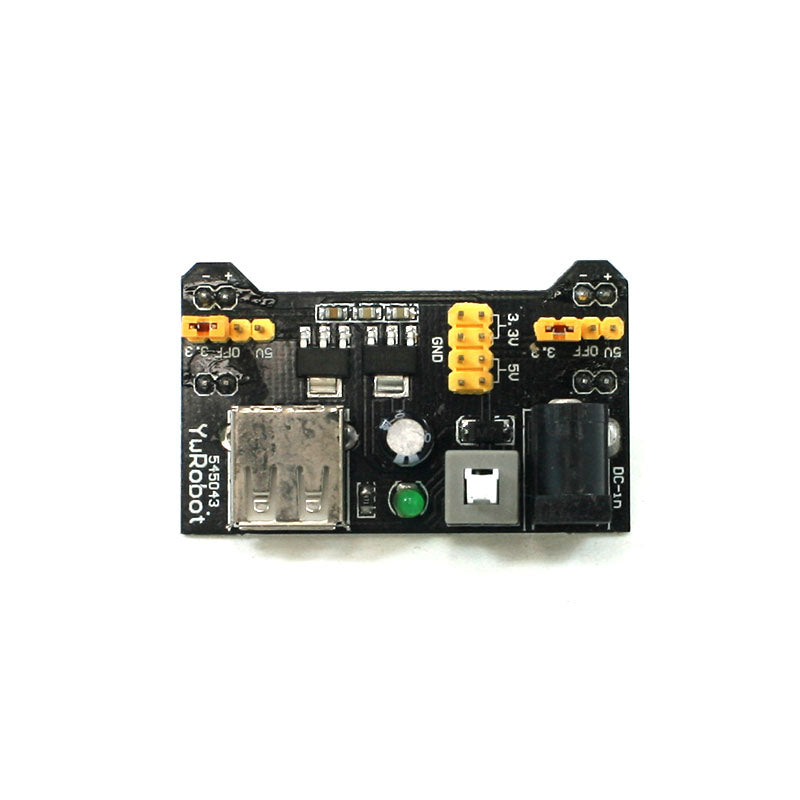

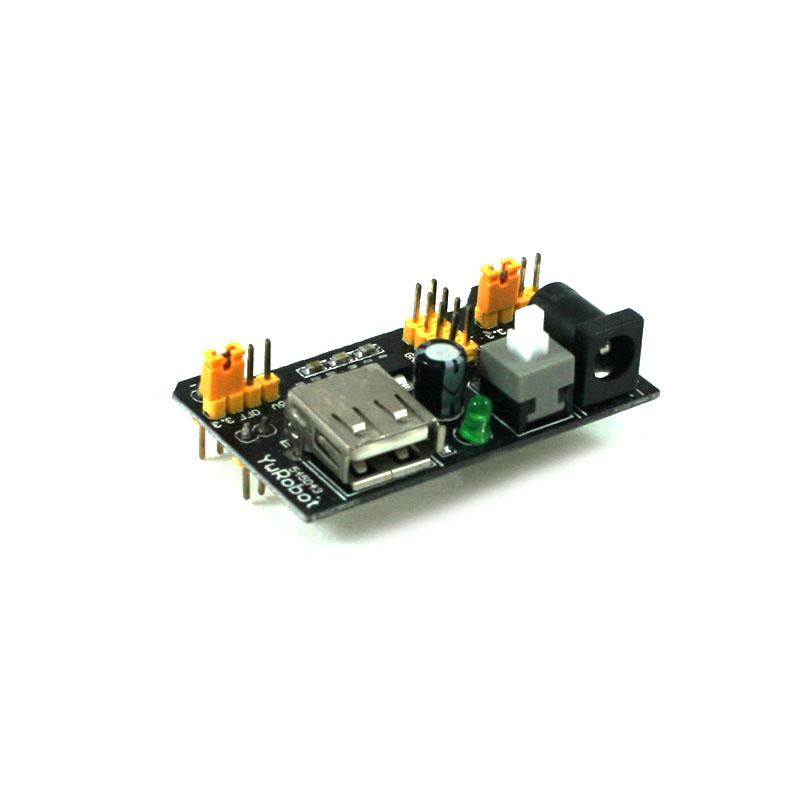

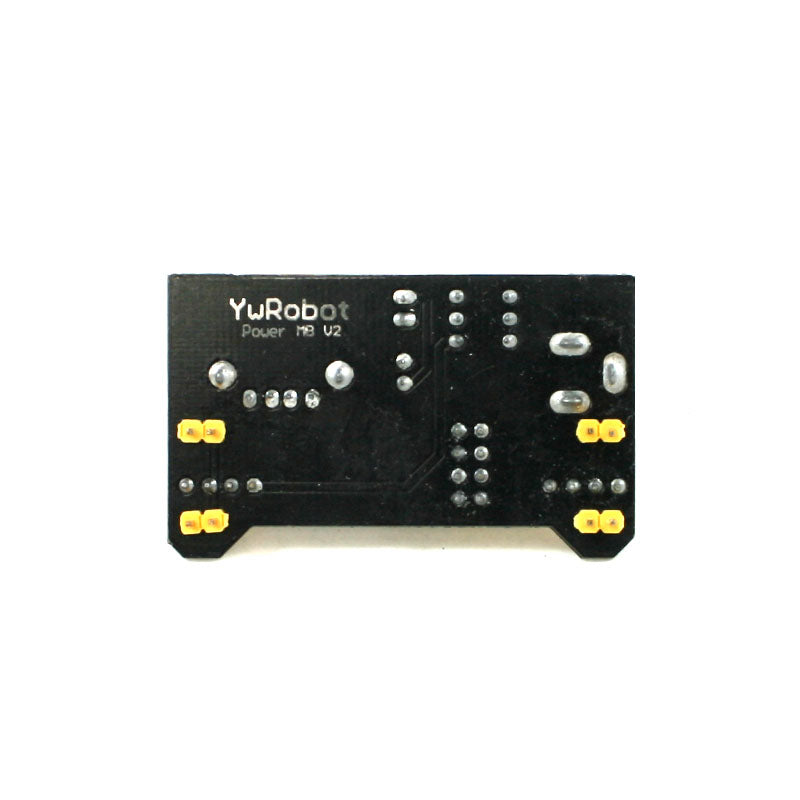

Breadboard Power Supply

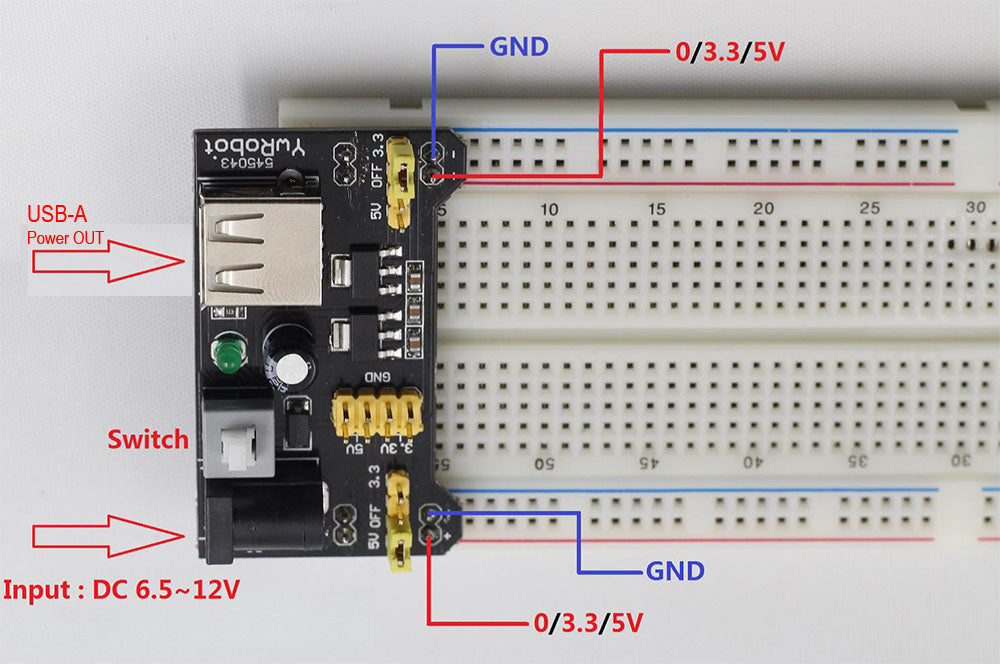

For MB102 bread board, two way independent control, Can be switched to 0V, 3.3V, 5V. On-board Two sets of 3.3V, 5V DC output pins, Facilitate the external leads. A plastic lens is used for high sensitivity. Please Change the jumper cap position to select 5.0V or 3.3V Voltage.

Feature:

Product Name : Breadboard Power Supply Module

Fit for : 400 Tie Point Solderless Breadboard (0223-PRT)

830 Tie Point Solderless Breadboard (0160-PRT)

Input Voltage : DC 6.5-12V;

Output Voltage : DC 3.3V or 5V

Output Current : 700mA ( Max );

Product Size : 51 x 32 x 19mm/ 2" x 1.3" x 0.75" (L*W*H)
