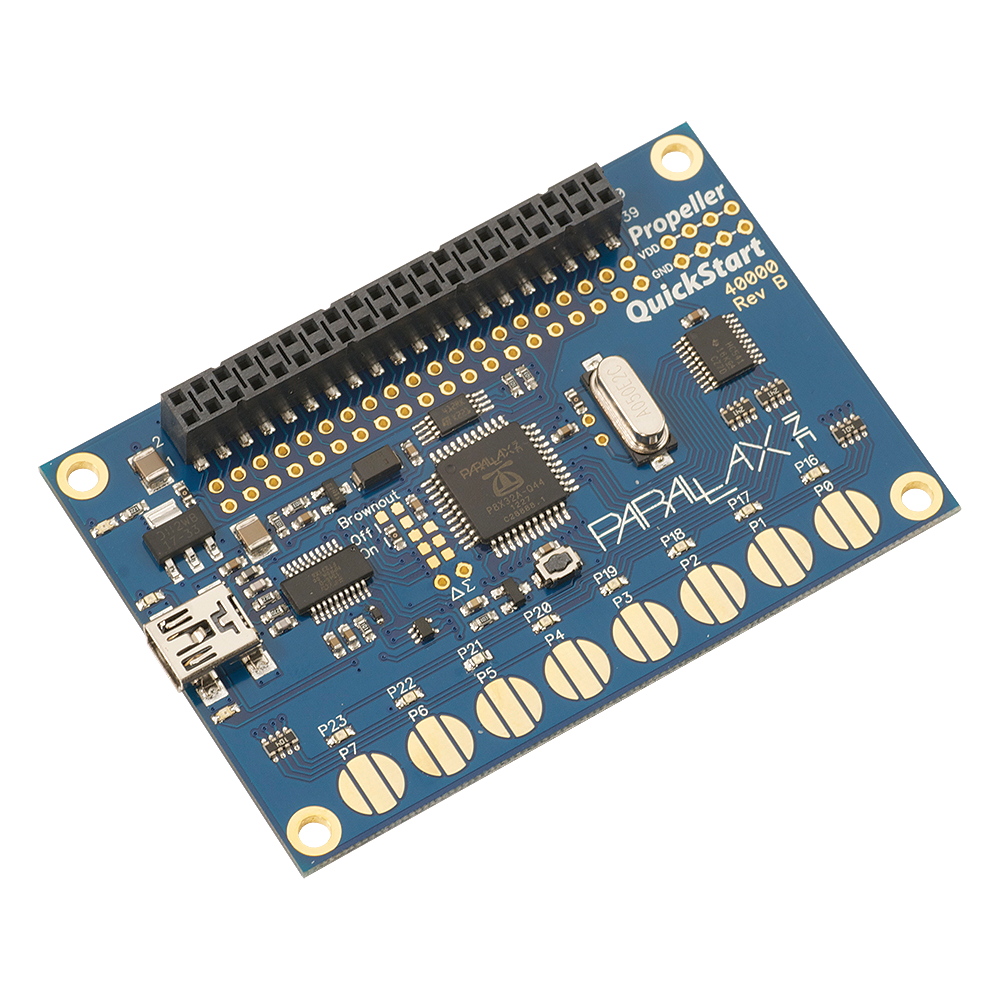

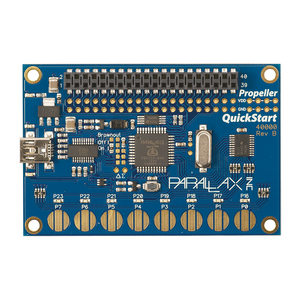

The P8X32A QuickStart is a simple and accessible development platform for the P8X32A Propeller microcontroller.

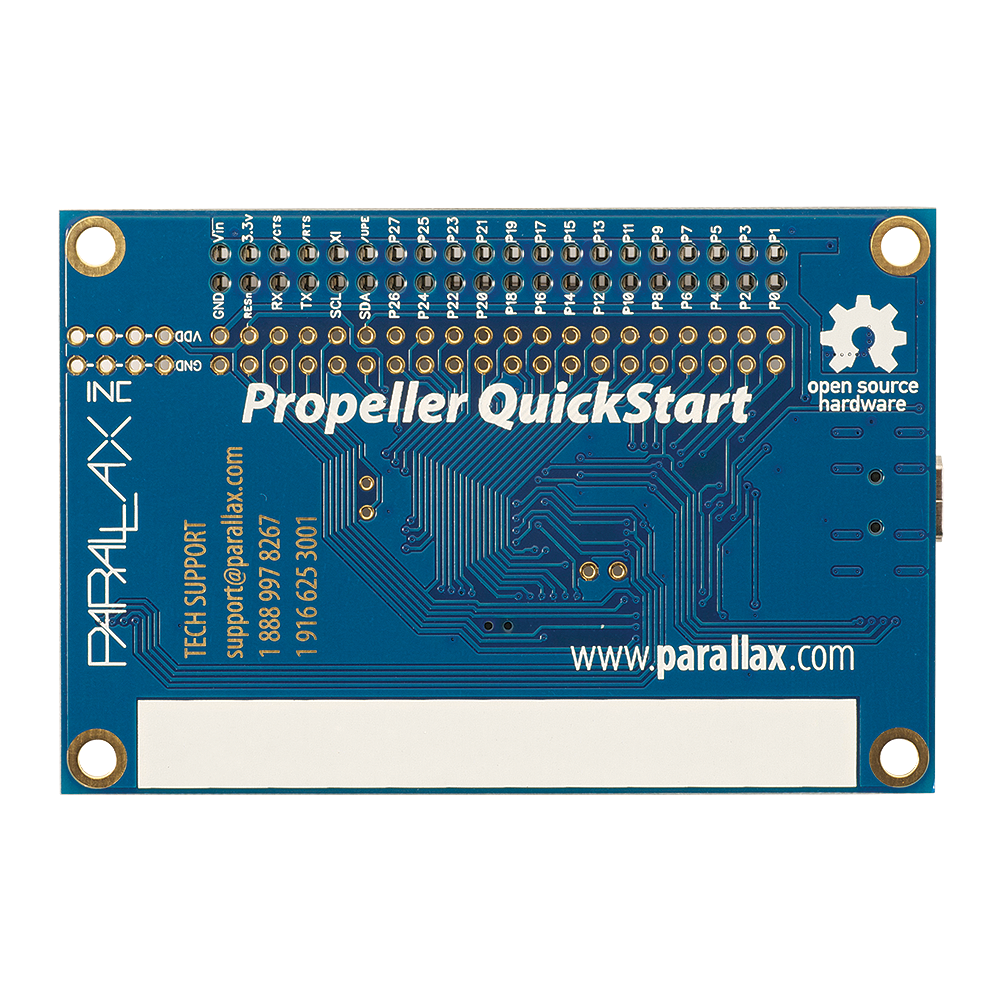

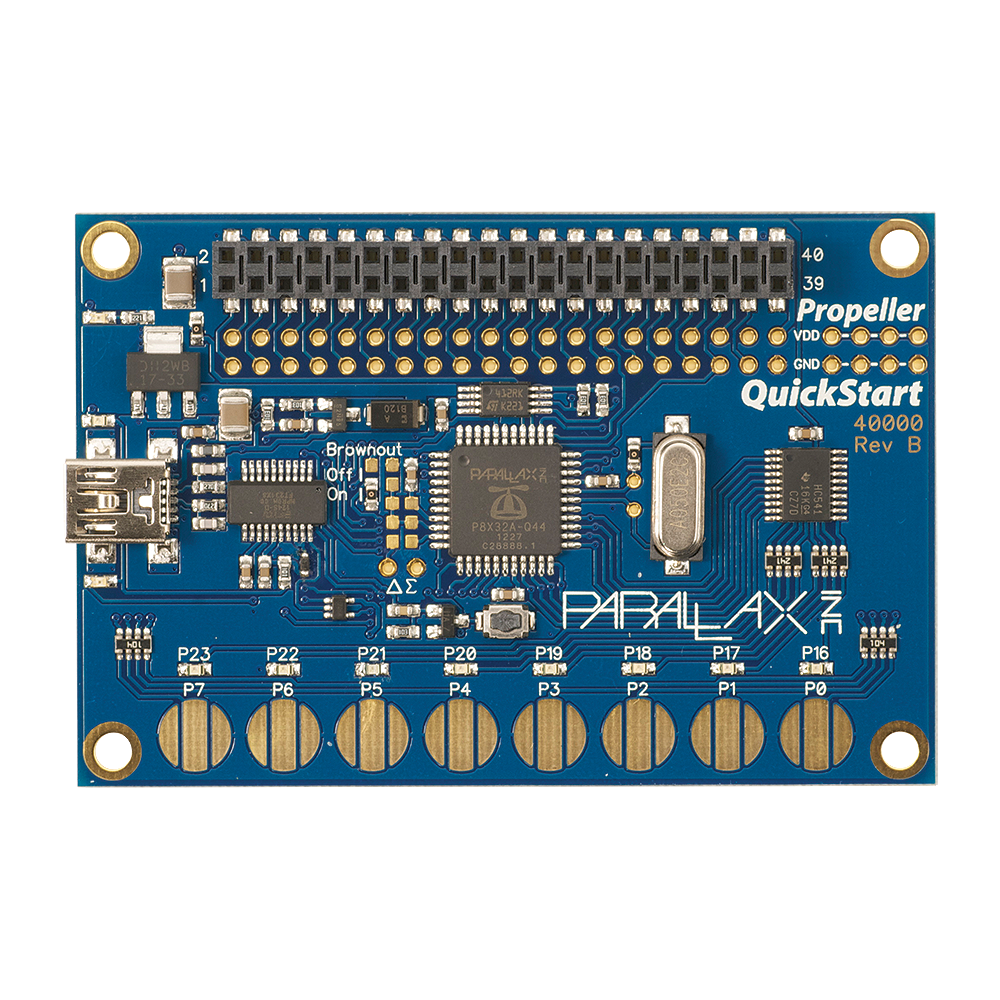

The QuickStart is an evaluation board for the Propeller. As an open-source reference design the QuickStart board provides basic Propeller circuitry. Developers may use our PCB layout files as their own to speed their project towards completion. As a project board the QuickStart is fully expandable and provides unimpeded access to all I/O pins through an expansion header but includes some button inputs and LEDs to demonstrate programming. With USB power and a selection of QuickStart Project examples it's also the fastest way to get up and running.

Key Features:

  • Propeller P8X32A microcontroller
  • Expansion header provides access to Vss, Vdd, 32 I/O pins
  • 5 MHz crystal on board may be disabled by removing SMT jumper, allowing replacement with external through-hole crystal
  • Eight resistive touch buttons
  • Eight buffered LEDs

Technical Details:

  • Open hardware reference design through our Altium and DipTrace PCB layout files (more export options may be possible)
  • Bus-powered USB coupled with 3.3V regulator for 500 mA
  • 64KB EEPROM (32K for P8X32A program, 32K for general-purpose use)
  • External brownout reset may be installed by removing SMT jumper
  • Pads for sigma-delta A/D circuitry (two resistors and two capacitors, both 0603) for using the Sigma-Delta A/D AppNote
  • Power Requirements: 3.3 or 4 to 9 VDC, up to 500 mA
  • Communication: USB, 3.3 V serial, I2C
  • Dimensions: 2.0 x 3.0 x 0.36 in (5.0 x 7.6 x 0.84 cm) mounting hole centers separated by 2.75 x 1.75 in (59.85 x 44.45 mm)
  • Operating temp range: -40 to +185 °F (-40 to +85 °C)

Application Ideas:

  • Reference design
  • Development platform
  • Embedded processor board
