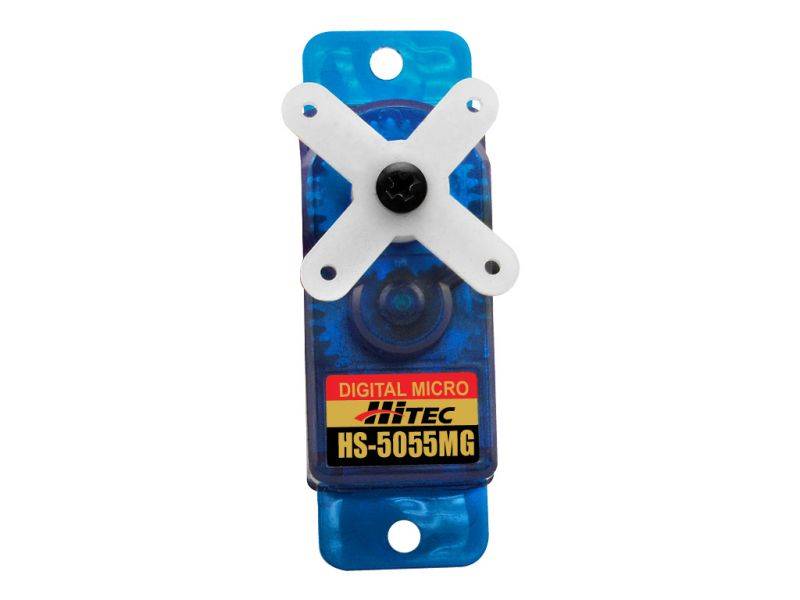

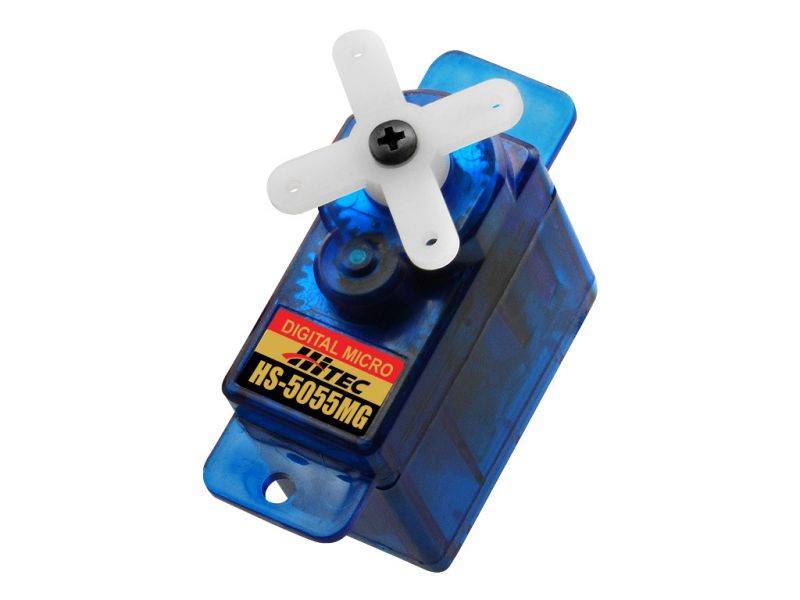

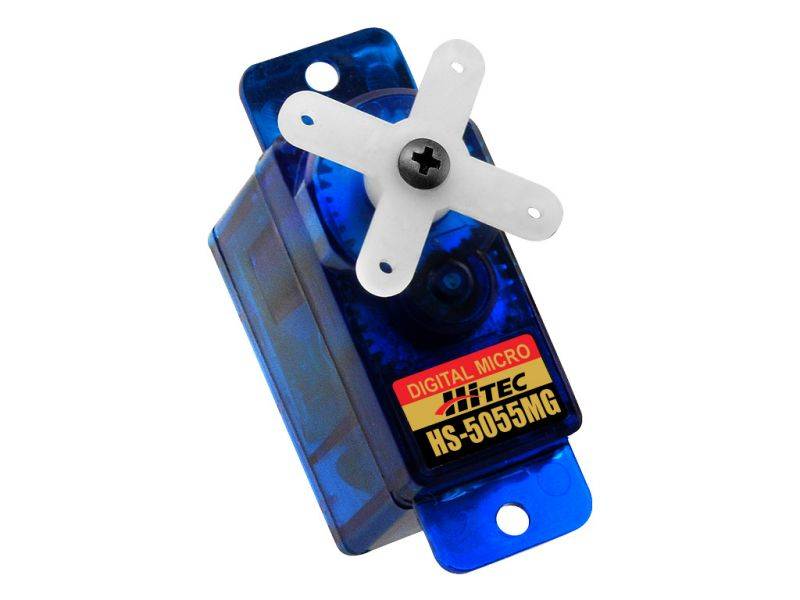

Hitec HS-5055MG Digital Feather Servo

Since its introduction, the HS-55 has set the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service!

Enter the new HS-5055MG digital, metal geared version... with this new servo Hitec takes ultra micro performance to the next level without breaking the bank. The new HS-5055MG is a perfect choice for ” smaller” high performance electric helicopters, aircraft and sail planes.

Features:

  • Digital Circuit for Increased Performance and Holding Power
  • Smooth Coreless Motor
  • Rugged Metal Gears
  • Standard Programmable Digital Circuit
  • Economical, Feather, Digital Servo

Specifications:

Motor Type: Coreless
Bearing Type: None
Speed (4.8V/6.0V): 0.20 / 0.17 sec @ 60 deg.
Torque oz./in. (4.8V/6.0V): 18 / 22
Torque kg./cm. (4.8V/6.0V): 1.2 / 1.5
Max. Voltage: 6.0V

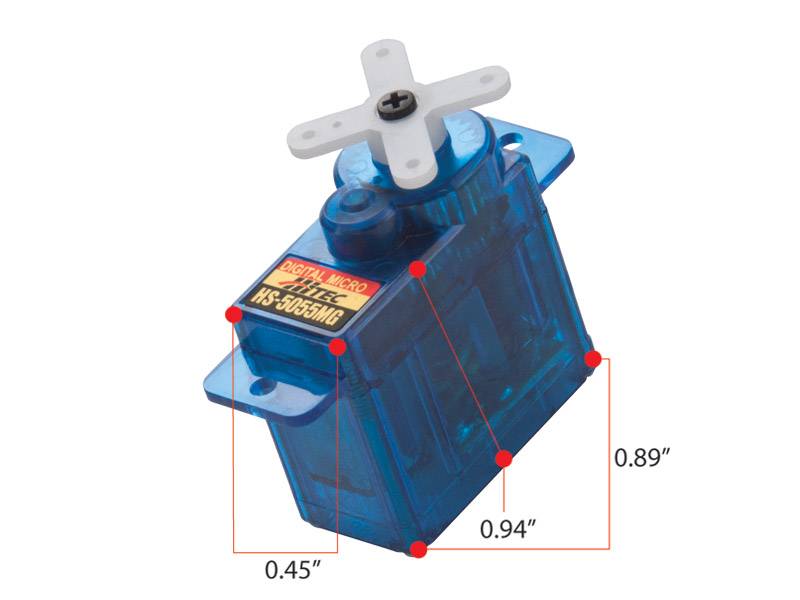

Size in Inches: 0.89 x 0.45 x 0.94
Size in Millimeters: 22.61 x 11.43 x 23.88
Weight ounces: 0.33
Weight grams: 9.36
