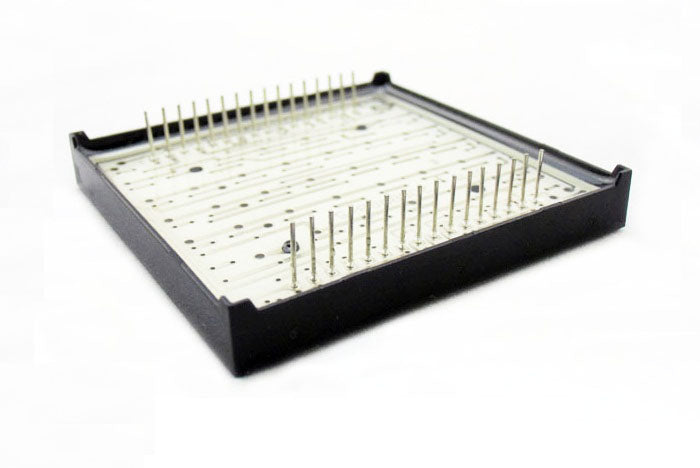

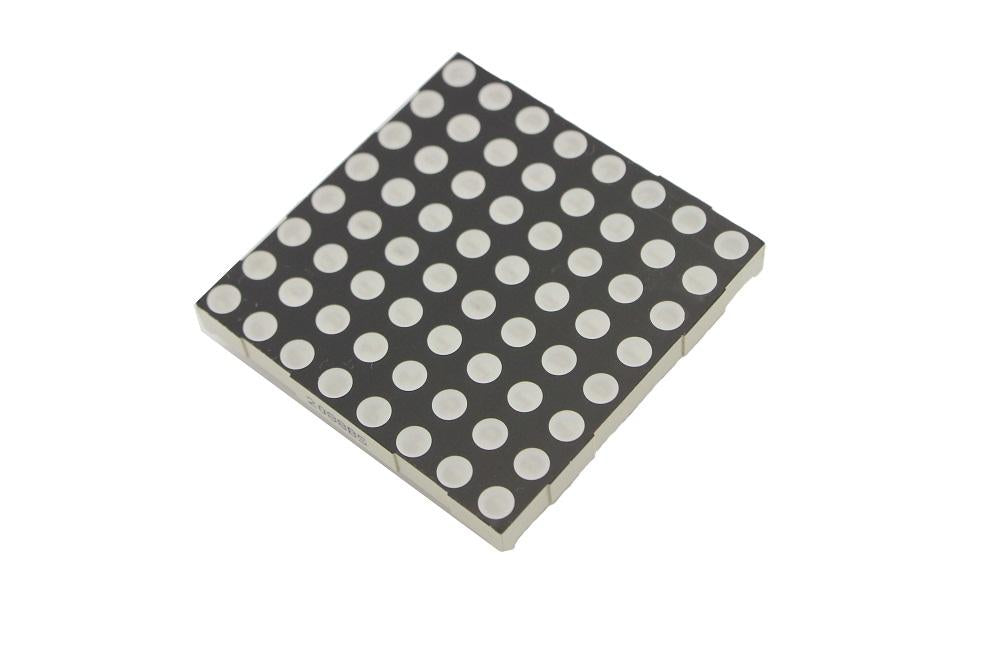

This is an awesome large sized RGB LED Matrix with superbright and beautiful performance. For more details, please refer to the datasheet.

Specification

  • Dot Size: 5.0mm
  • Pixel Array: 8x8
  • Dimension: 48mmx48mm
  • Reverse Voltage(Max): 5V
  • Forward Current(Max) : 20mA
  • Peak Forward Current(Max): 60mA
  • Power Dissipation(any seg): 40mW
  • Operating Temperature(Max): -10~+80°C
  • Storage Temperature(Max): -10~+80°C
  • Lead Solder Temperature(Max): for 3 seconds at 260°C
