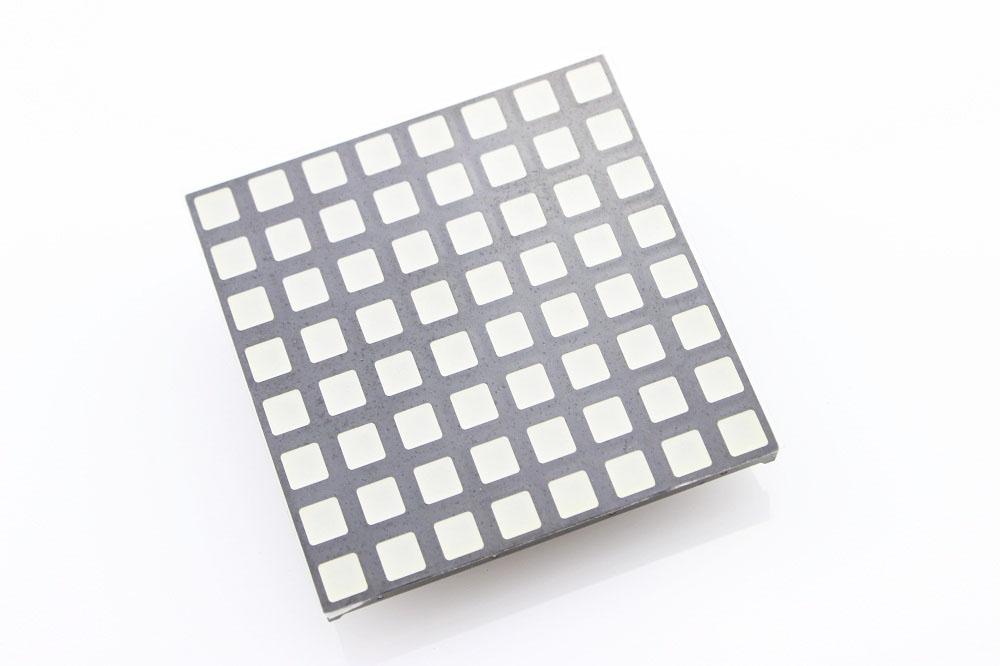

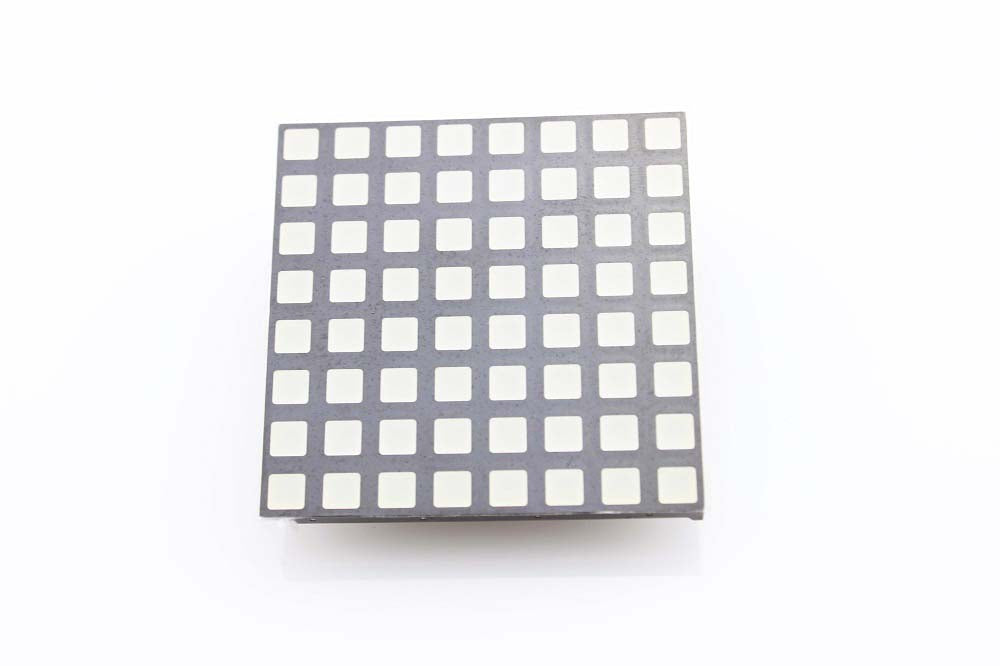

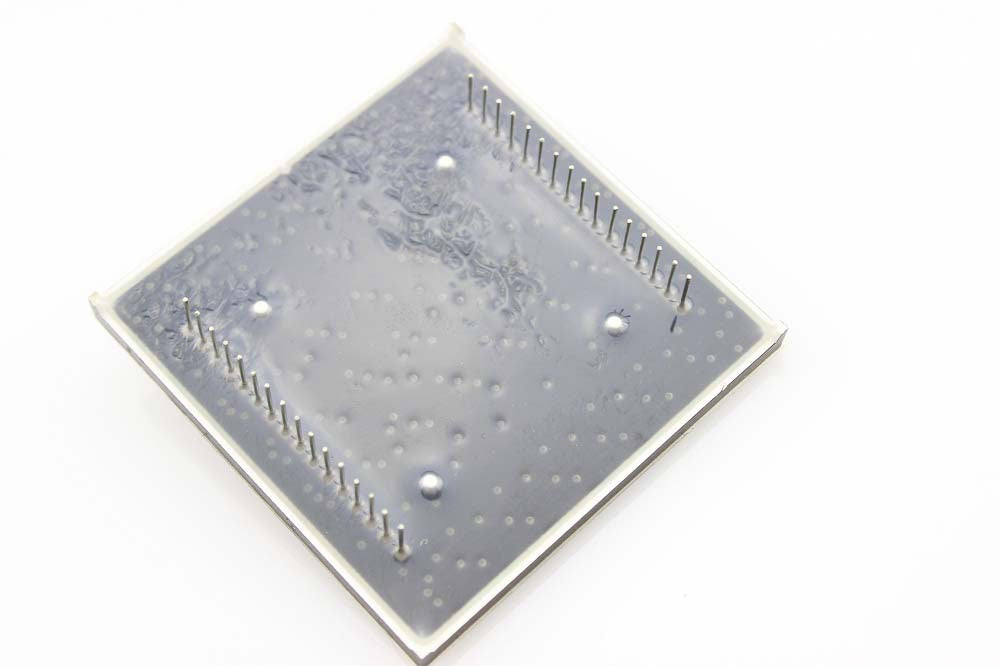

This is an awesome large sized RGB LED Matrix with square RGB LED.The usage and pin definition is the same as the 60mm Square 8*8 LED Matrix - Super Bright RGB,while the LED on this module are square and more transparent, the overall effect of this module is more colorful.


60mm Square 8*8 LED Matrix - Square RGB LED(Square-Dot)

Specification

  • Dot Size: 5.0mm
  • Pixel Array: 8x8
  • Dimension: 60mmx60mm
  • Reverse Voltage(Max): 5V
  • Forward Current(Max) : 20mA
  • Peak Forward Current(Max): 60mA
  • Power Dissipation(any seg): 40mW
  • Operating Temperature(Max): -10~+80 degree
  • Storage Temperature(Max): -10~+80 degree
  • Lead Solder Temperature(Max): for 3 seconds at 260 degree
