This item is archived from our catalog and no longer for sale. This page is available as a reference only.

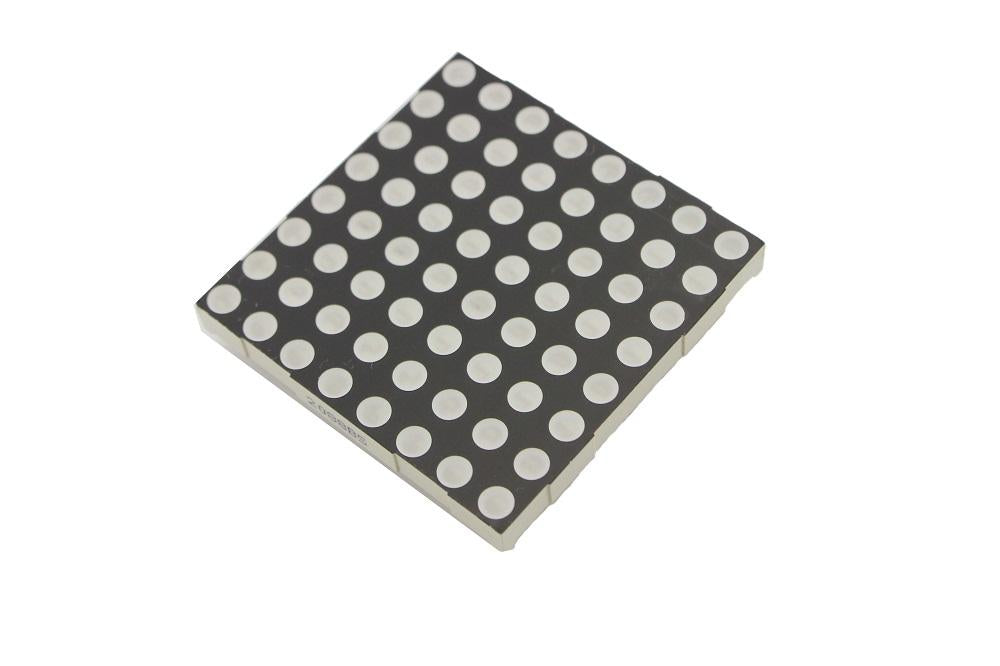

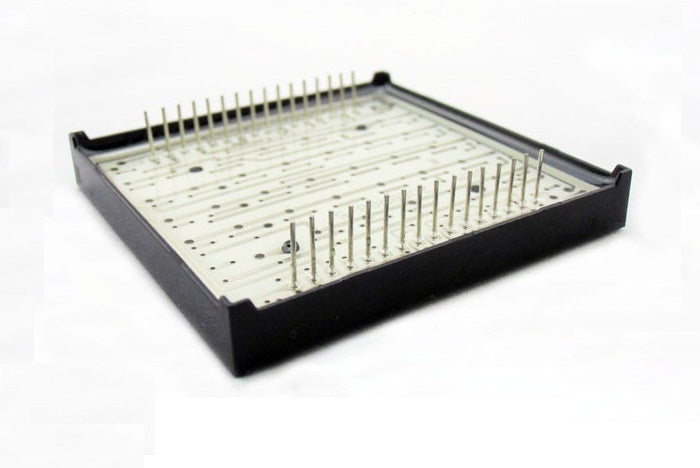

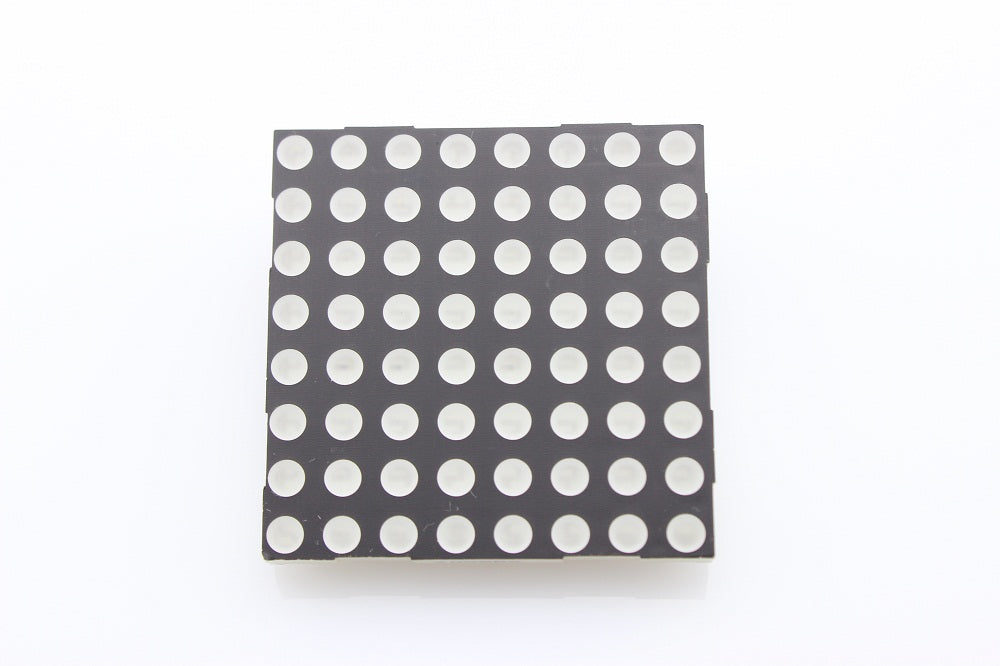

LED Matrix (60x60mm Super Bright RGB Circle-Dot)

This is an awesome large sized RGB LED Matrix with super bright and beautiful performance. It has 64 3.6mm circle-dots. For more details, please refer to the datasheet.

Specifications:

  • Dot Size: 5.0mm
  • Pixel Array: 8 x 8
  • Dimension: 60mm x 60mm
  • Reverse Voltage(Max): 5V
  • Forward Current(Max): 20mA
  • Peak Forward Current(Max): 60mA
  • Power Dissipation (any seg): 40mW
  • Operating Temperature (Max): -10~+80 Degree
  • Lead Solder Temperaturem (Max): for 3 seconds at 260 Degree
