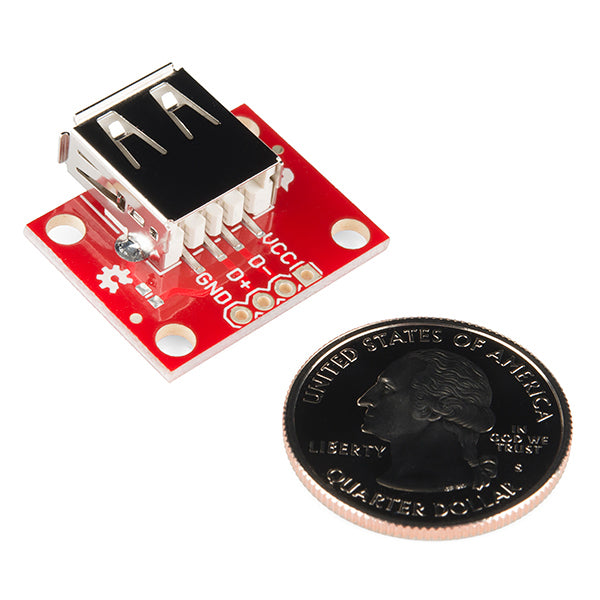

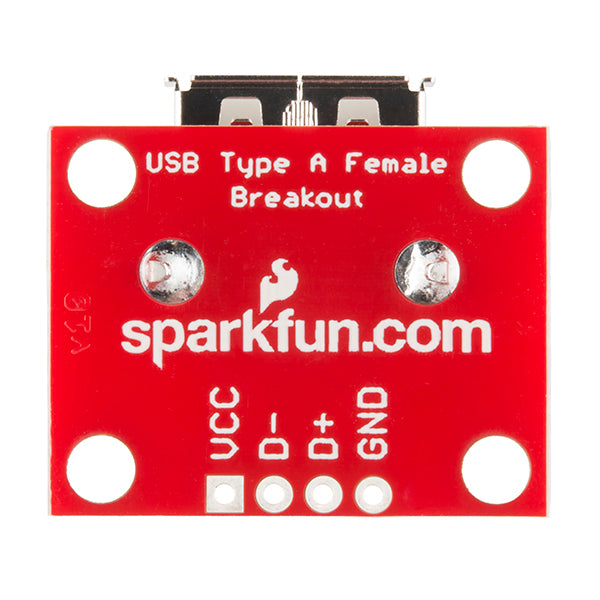

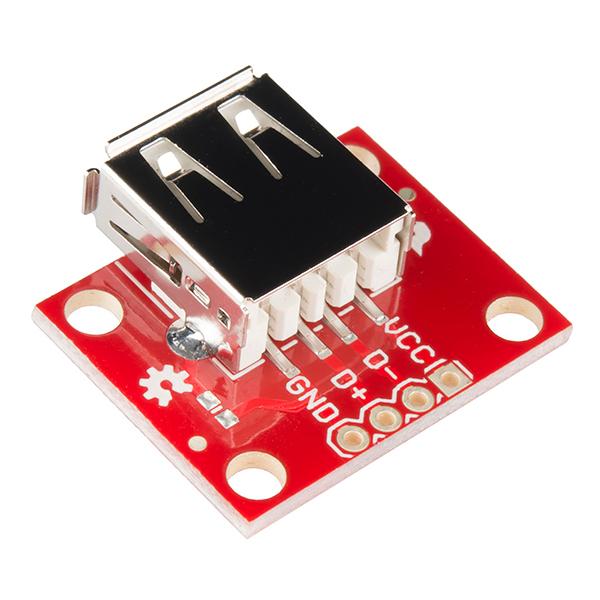

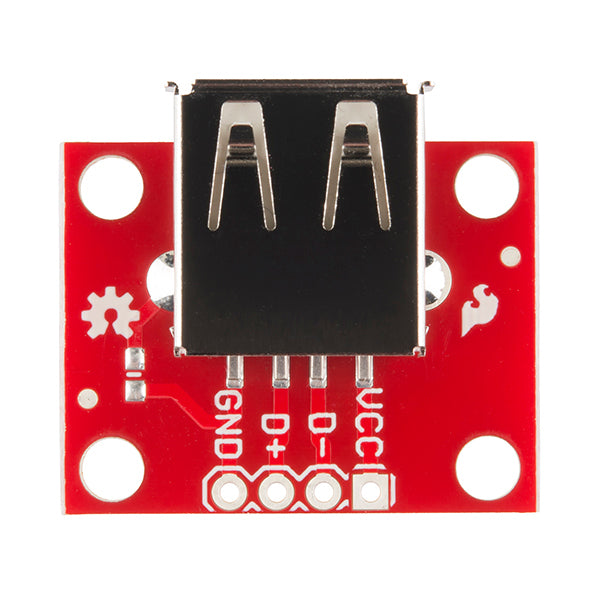

This simple board breaks out a female USB type A connector’s VCC, GND, D- and D+ pins to a 0.1" pitch header. If you want to add a USB to your project, but don’t want to put up with soldering tiny connectors, this is the board for you.
Dimensions: 1.02 x 0.9" (26.06 x 22.93mm)
Documents:
